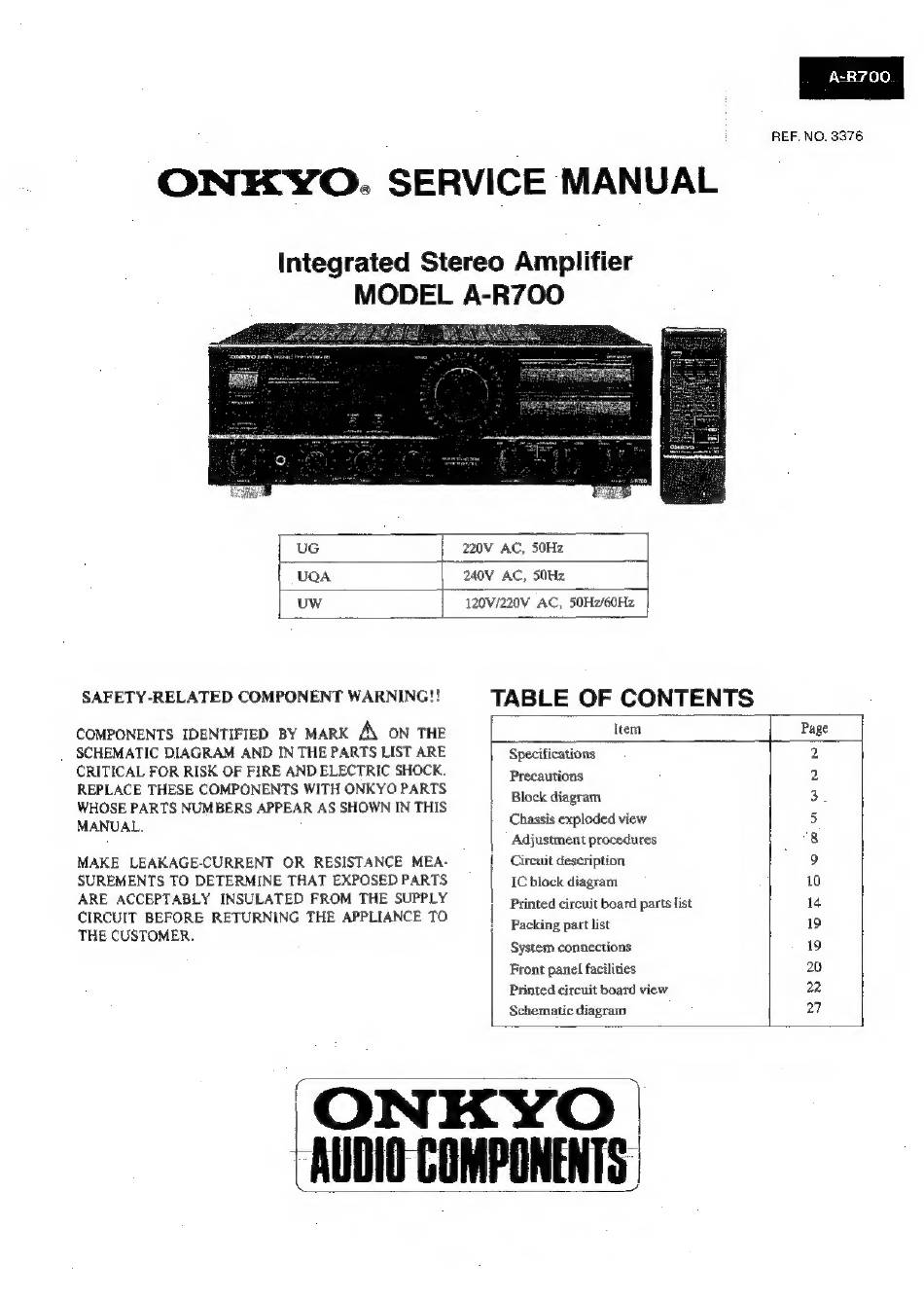

ONKYO.:
SERVICE MANUAL

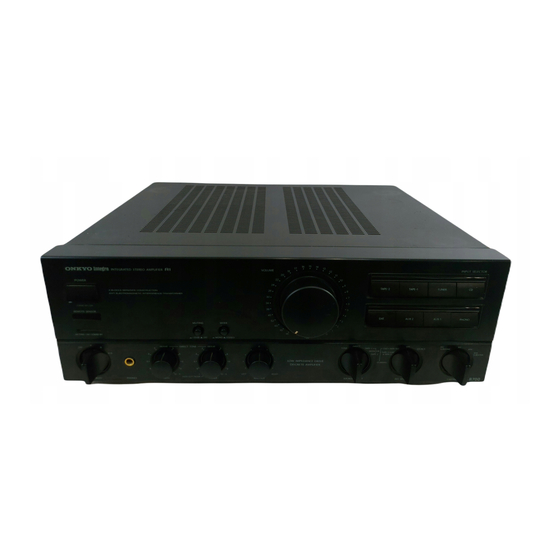

Integrated Stereo Amplifier
MODEL A-R700
UG
|
220V AC, 50Hz
UQA
240V AC, SOHz
UW
| 120V/220V AC, 50Hz/60Hz
|
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS
IDENTIFIED
BY MARK
A
ON THE
SCHEMATIC DIAGRAM
AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE
LEAKAGE-CURRENT
OR RESISTANCE
MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY
INSULATED FROM THE SUPPLY
CIRCUIT BEFORE
RETURNING THE APPLIANCE TO
THE CUSTOMER.
TABLE OF CONTENTS
REF. NO. 3376
Item
Specifications
Precautions
Block diagram
Chassis exploded view
Adjustment procedures
{
Circuit description
IC block diagram
Printed circuit board parts list
Packing part list
System connections
Front panel facilities
Printed circuit board view
Schematic diagram
