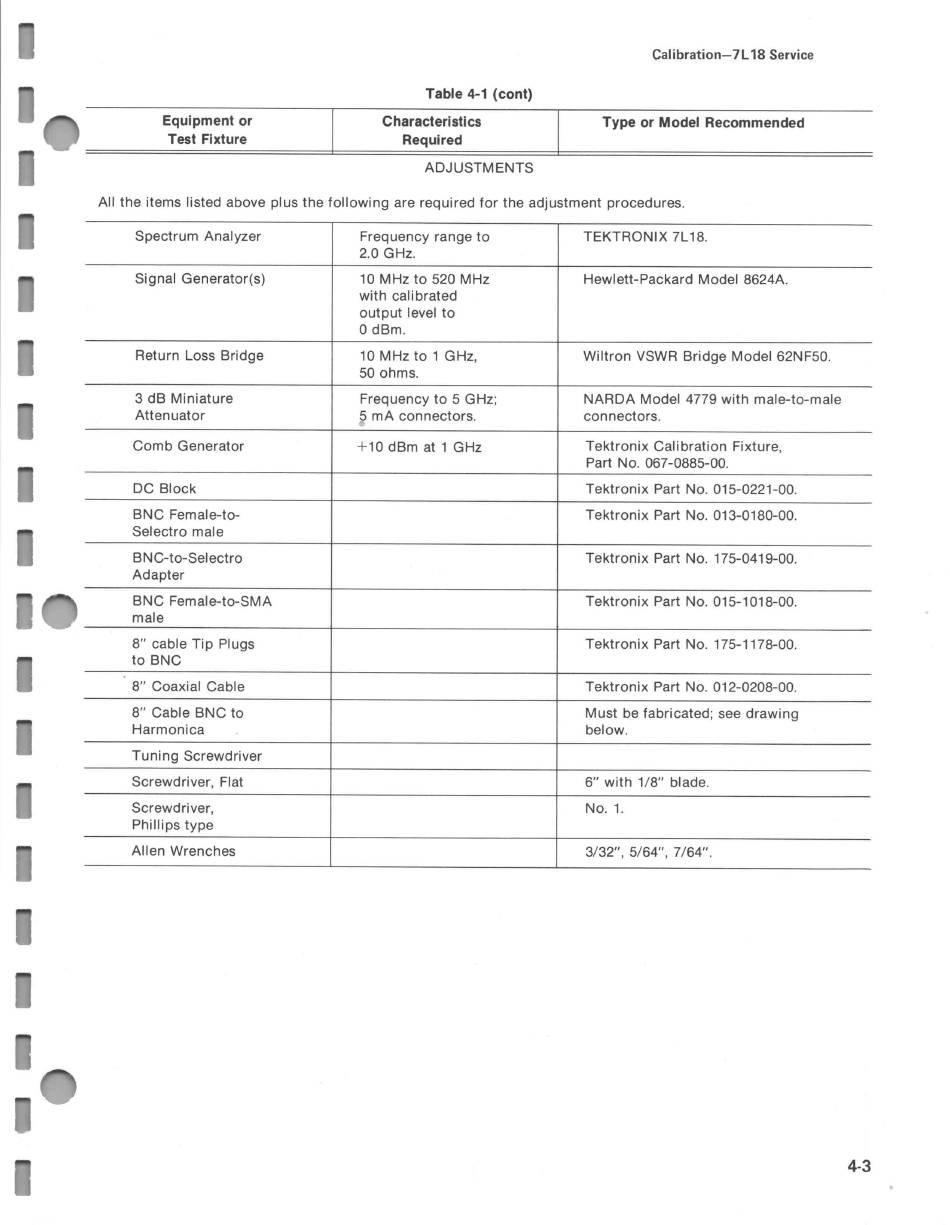

Table 4-1 (cont)
Calibration—7L18 Service
Equipment or
Test Fixture
Characteristics
Required
Type or Model Recommended
ADJUSTMENTS
All the items listed above plus the following are required for the adjustment procedures.
Spectrum Analyzer
Frequency range to
2.0 GHz.
TEKTRONIX 7L18.
Signal Generator(s)
10 MHz to 520 MHz
with calibrated
output level to
0 dBm.
Hewlett-Packard Model 8624A.
Return Loss Bridge
10 MHz to 1 GHz,
50 ohms.
Wiltron VSWR Bridge Model 62NF50.
3 dB Miniature
Attenuator
Frequency to 5 GHz;
5 mA connectors.
NARDA Model 4779 with male-to-male
connectors.
Comb Generator
+10 dBm at 1 GHz
Tektronix Calibration Fixture,
Part No. 067-0885-00.
DC Block
Tektronix Part No. 015-0221-00.
BNC Female-to-
Selectro male
Tektronix Part No. 013-0180-00.
BNC-to-Selectro
Adapter
Tektronix Part No. 175-0419-00.
BNC Female-to-SMA
male
Tektronix Part No. 015-1018-00.
8" cable Tip Plugs
to BNC
Tektronix Part No. 175-1178-00.
8" Coaxial Cable Tektronix Part No. 012-0208-00.
8" Cable BNC to
Harmonica
Must be fabricated; see drawing
below.
Tuning Screwdriver
Screwdriver, Flat
6" with 1/8" blade.
Screwdriver,
Phillips type
No. 1.
Allen Wrenches 3/32", 5/64", 7/64".
4-3
