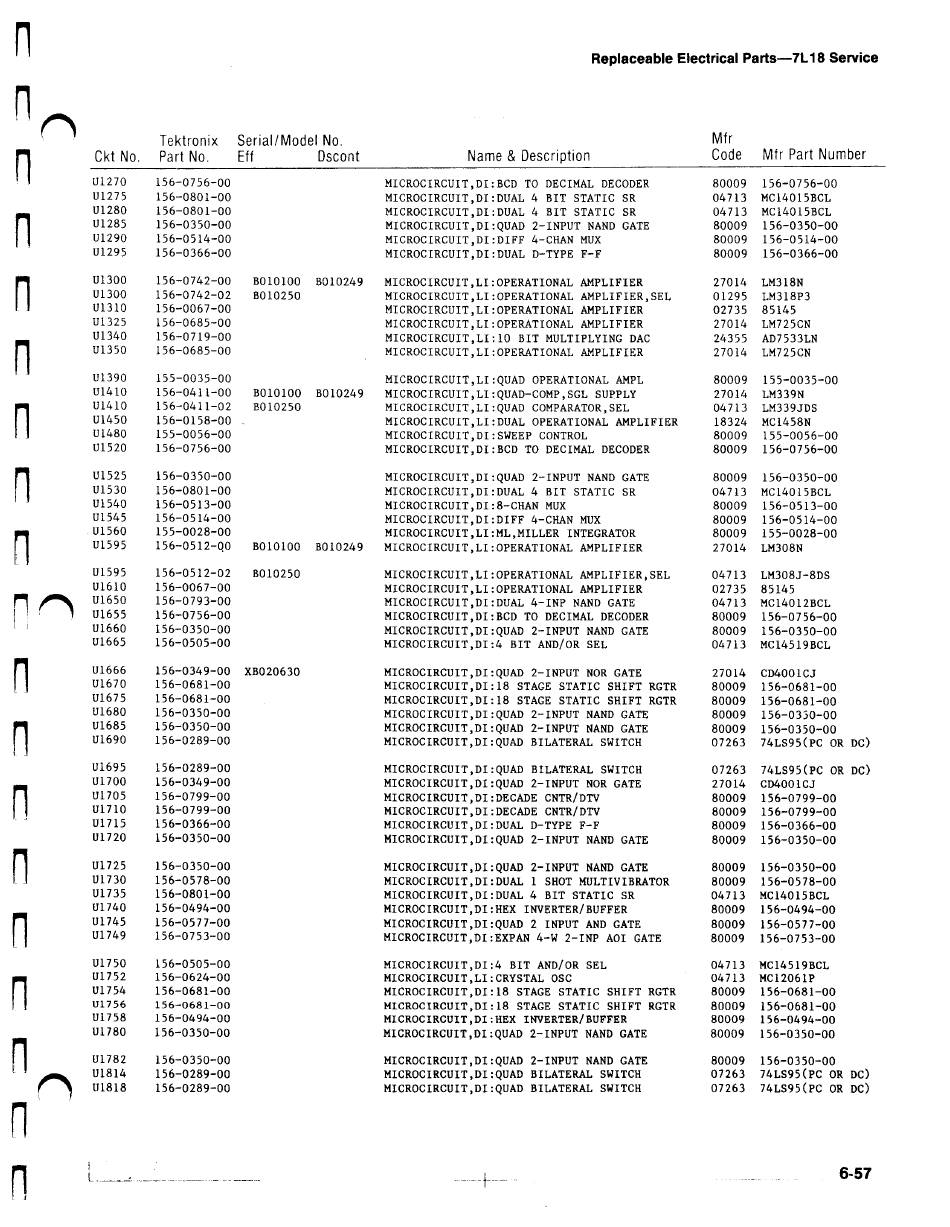

Tektronix 7L18 Instruction Manual page 155

Replaceable Electrical Parts—7L18 Service
Tektronix Serial/Model No. Mfr
Ckt No. Part No. Eff Dscont Name & Description Code Mfr Part Number
U1270 156-0756-00 MICROCIRCUIT,DI:BCD TO DECIMAL DECODER 80009 156-0756-00
U1275 156-0801-00 MICROCIRCUIT,DI:DUAL 4 BIT STATIC SR 04713 MC14015BCL
u1280 156-0801-00 MICROCIRCUIT,DI:DUAL 4 BIT STATIC SR 04713 MC14015BCL
U1285 156-0350-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1290 156-0514-00 MICROCIRCULT,DI:DIFF 4-CHAN MUX 80009 156-0514-00
U1295 156-0366-00 MICROCIRCUIT,DI:DUAL D-TYPE F-F 80009 156-0366-00
U1300 156-0742-00 BO10100 8010249 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM318N
U1300 156-0742-02 8010250 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER, SEL 01295 1LM318P3
U1310 156-0067-00 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 02735 85145
U1325 156-0685-00 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM725CN
U1340 156~-0719-00 MICROCIRCUIT,LI:10 BIT MULTIPLYING DAC 24355 AD7533LN
U1350 156-0685-00 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM725CN
U1390 155-0035-00 MICROCIRCUIT,LI:QUAD OPERATIONAL AMPL 80009 155-0035-00
U1410 156-0411-00 BO10100 BO010249 MICROCIRCULT,LI:QUAD-COMP,SGL SUPPLY 27014 LM339N
u1410 156-0411-02 8010250 MICROCIRCUIT,LI:QUAD COMPARATOR, SEL 04713 LM339JDS
U1450 156-0158-00 MICROCIRCUIT,LI:DUAL OPERATIONAL AMPLIFIER 18324 MC1458N
U1480 155-0056-00 MICROCIRCUIT,DI:SWEEP CONTROL 80009 155~-0056-00
U1520 156-0756-00 MICROCIRCUIT,DI:BCD TO DECIMAL DECODER 80009 156-0756-00
U1525 156-0350-00 MICROCLRCULT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1530 156-0801-00 MICROCIRCUIT,DI:DUAL 4 BIT STATIC SR 04713 MC14015BCL
U1540 156-0513-00 MICROCIRCULT,DI:8-CHAN MUX 80009 156-0513-00
U1545 156-0514-00 MICROCIRCUIT,DI:DIFF 4-CHAN MUX 80009 156-0514-00
U1560 155-0028-00 MICROCIRCUIT,LI:ML,MILLER INTEGRATOR 80009 155-0028-00
U1595 156-0512-00 BO10100 BO10249 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM308N
U1595 156-0512-02 8010250 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER, SEL 04713 LM308J~8DS
U1610 156-0067-00 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 02735 85145
u1650 156-0793-00 MICROCIRCUIT,DI:DUAL 4-INP NAND GATE 04713 MC14012BCL
U1655 156~-0756-00 MICROCIRCUIT,DI:BCD TO DECIMAL DECODER 80009 156-0756-00
U1660 156-0350-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1665 156-0505-00 MICROCIRCUIT,DI:4 BIT AND/OR SEL 04713 MC14519BCL
U1666
156~0349-00 XB020630
MICROCIRCUIT,DI:QUAD
2-INPUT NOR GATE
27014 CD4001CI
u1670
156-0681-00
MICROCIRCUIT,DI:18 STAGE STATIC
SHIFT RGTR 80009 156-0681-00
U1675 156-0681-00
MICROCIRCUIT,D1:18 STAGE
STATIC SHIFT RGTR 80009
156-0681-00
U1680
156-0350-00
MICROCIRCUIT,DI:QUAD 2-INPUT
NAND GATE 80009 156-0350-00
U1685
156-0350-00
MICROCIRCUIT,DI:QUAD
2-INPUT NAND GATE 80009
156-0350-00
U1690
156-0289-00
MICROCIRCUIT,DI:QUAD BILATERAL
SWITCH 07263 74LS95(PC
OR DC)
U1695 156-0289-00
MICROCIRCUIT,DI:QUAD
BILATERAL SWITCH
07263 74L895(PC OR DC)
UL700 156-0349-00 MICROCIRCUIT,DI:QUAD 2-INPUT NOR GATE 27014 cp4001cI
UL705 156-0799-00 MICROCIRCUIT,DI:DECADE CNTR/DTV 80009 156-0799-00
U1710 156-0799-00 MICROCIRCUIT,DI:DECADE CNTR/DTV 80009 156-0799-00
UI715 156-0366-00 MICROCIRCULT,DI:DUAL D-TYPE F-F 80009 156-0366-00
U1720 156-0350-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1725 156-0350-00 MICROCIRCULT ,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1730 156-0578-00 MICROCIRCUIT,DI:DUAL 1 SHOT MULTIVIBRATOR 80009 156-0578-00
U1735 156-0801-00 MICROCIRCUIT,DI:DUAL 4 BIT STATIC SR 04713 MC14015BCL
u1740 156-0494-00 MICROCIRCUIT,DI:HEX INVERTER/ BUFFER 80009 156-0494-00
U1745 156-0577-00 MICROCIRCUIT,DI:QUAD 2 INPUT AND GATE 80009 156-0577-00
U1749 156-0753-00
MICROCIRCUIT,DI:EXPAN
4-W 2-INP AOI GATE 80009
156-0753-00
U1750 156-0505-00 MICROCIRCUIT,DI:4 BIT AND/OR SEL 04713 MC14519BCL
U1752 156-0624-00 MICROCIRCUIT,LI:CRYSTAL OSC 04713 MCi2061P
U1754 156-0681-00 MICROCIRCUIT,DI:18 STAGE STATIC SHIFT RGTR 80009 156-0681-00
U1756 156-0681-00 MICROCIRCUIT,DI:18 STACE STATIC SHIFT RGTR 80009 156-0681-00
U1758 156-0494-00 MICROCIRCUIT,DI:HEX INVERTER/ BUFFER 80009 156-0494-00
u1780 156~0350-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 80009 156~-0350-00
U1782 156-0350-00 MICROCIRCULT,DI:QUAD 2-INPUT NAND GATE 80009 156-0350-00
U1814 156-0289-00 MICROCIRCUIT ,DI:QUAD BILATERAL SWITCH 07263 74LS95(PC OR DC)
U1818 156-0289-00 MICROCIRCUIT,DI:QUAD BILATERAL SWITCH 07263 74LS895(PC OR DC)
{
bn ee cof 6-57
