Model: DRNT512
operating instructions
Unscrew anvil and
locknut
IMPORTANT - MAINTENANCE TIP
APPLY GREASE TO THE LOAD TRANSFER THREAD.
THIS IS DONE BY WINDING THE TOOL APART, CLEANING AND
GREASING THE THREAD.
MAINTENANCE TIME APPROX 5 MINUTES.
capacity
rivnuts: M5 - M6 - M8 - M10 - M12
rivstuds: M5 - M6 - M8
160mm
210mm
Pull mandrel to remove
from tool body.
IMPORTANT
ALWAYS TEST SET RIVNUTS INTO SCRAP MATERIAL.
ONLY A SMALL AMOUNT OF FORCE IS REQUIRED
TO SET THESE RIVNUTS.
UNNECESSARY OVER TIGHTENING MAY RESULT IN
DAMAGE TO THE TOOL MANDREL OR RIVNUT THREADS.
- WHEN USING M5 AND M6 RIVNUTS,
Advertisement
Related Manuals for Dafra DRNT512
Summary of Contents for Dafra DRNT512

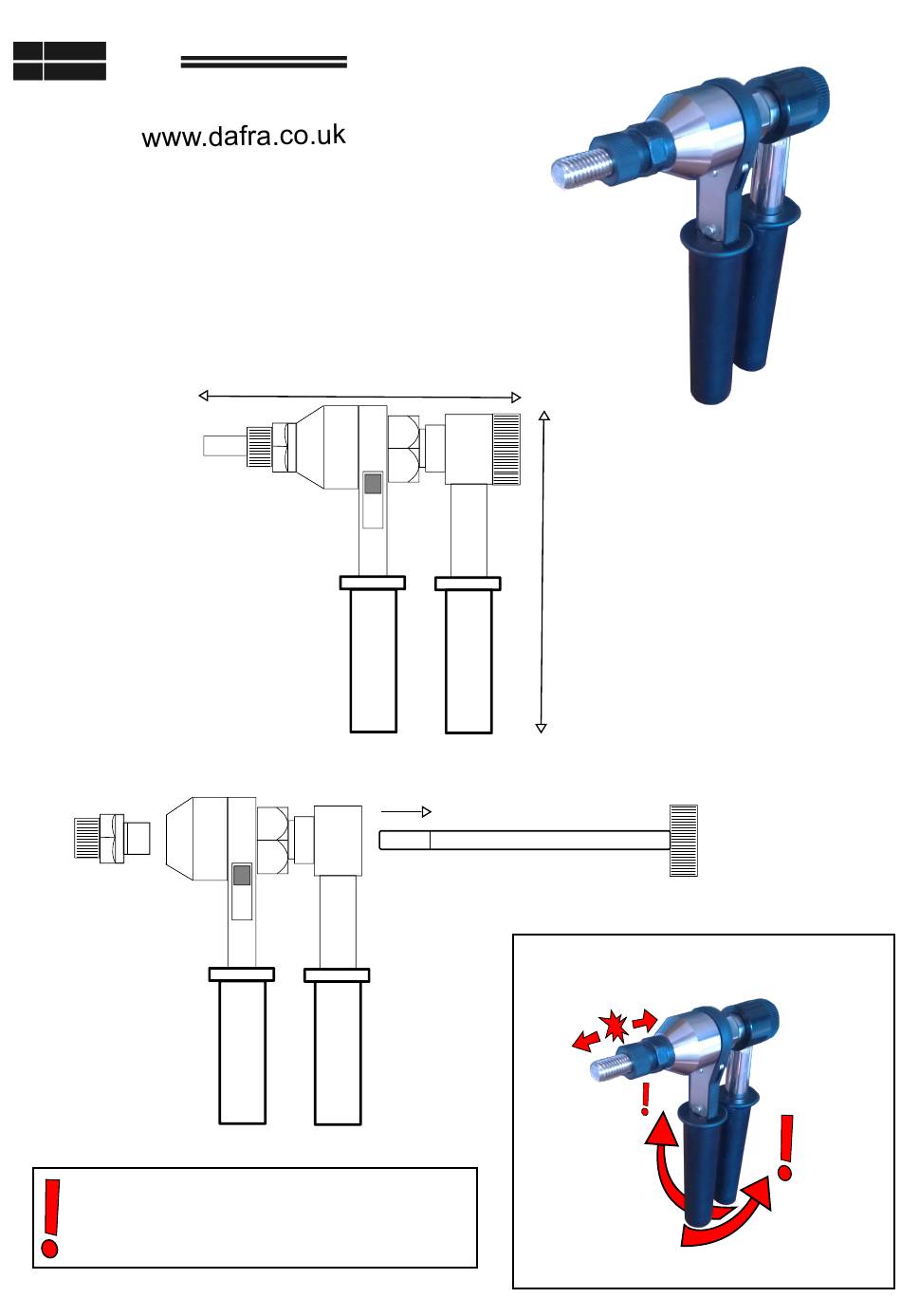

- Page 1 UK Model: DRNT512 operating instructions capacity rivnuts: M5 - M6 - M8 - M10 - M12 rivstuds: M5 - M6 - M8 160mm 210mm Unscrew anvil and Pull mandrel to remove locknut from tool body. IMPORTANT - WHEN USING M5 AND M6 RIVNUTS, ALWAYS TEST SET RIVNUTS INTO SCRAP MATERIAL.
- Page 2 DRNT512 setting a rivnut or rivstud approx 1.0 mm gap Adjust anvil so that 1 thread switch up of tool mandrel is showing. Tighten anvil lock nut. Note; gap increases as rivnut is set. Use stoke guage for consistant setting...
