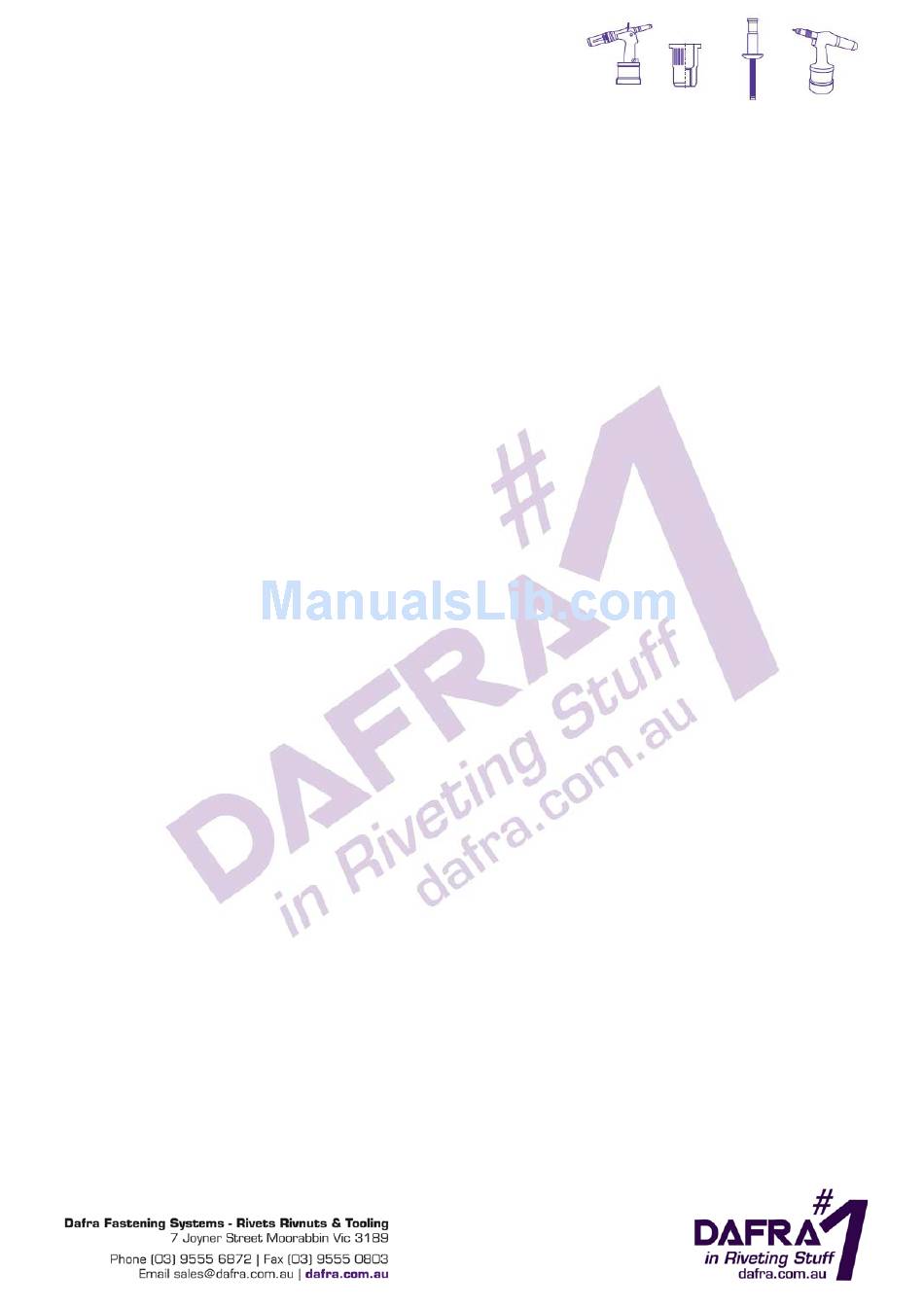

- Page 1 DRPB48V Operation Manual PLEASE SPEND 2 MINUTES READING THESE INSTRUCTIONS BEFORE USING YOUR NEW PNEUMATIC RIVET TOOL. TRUST US, IT WILL SAVE YOU TIME AND INCONVENIENCE IN THE LONG RUN.
-
Page 2: Tool Specifications
DRPB48V Operation Manual Read this manual carefully before use the tool! It is IMPORTANT to follow the safety instructions for adequate protection against injuries. This tool should be used exclusively to apply blind rivets as prescribed under TOOL CAPACITY. It cannot be used for other purposes, such as hammer, etc. -
Page 3: Setting Up The Tool
DRPB48V Operation Manual SETTING UP THE TOOL Please refer to the TOOL EXPLOSIVE ILLUSTRATION and the PARTS LIST included in this manual in order to have a good understanding of the tool parts described. The descriptions of the tool parts appear in this manual in italics with the parts position numbers corresponding to the tool explosive illustration. - Page 4 DRPB48V Operation Manual TOOL OPERATION FOR SETTING BLIND RIVETS 1) After completing the start-up preparations, place the rivet mandrel into the nosepiece, and holding the tool to insert the rivet into the pre-drilled hole of the work piece that needs to be fastened.
- Page 5 DRPB48V Operation Manual After a period of use, the tool stroke may be reduced which indicated that the hydraulic oil in the pneumatic tool needs to be refilled or changed; 1) Remove the screw (#11) with a hexagon wrench: 2) Connect the air supply and to place a cloth over the hole where the screw (#11) was removed, then to pull the trigger (#48) and the oil will be forced out from the tool;...
- Page 6 DRPB48V Operation Manual 4) Use the oil injector (in the accessories pack) to slowly inject the oil until full (approx. 15ml). Remove the injector and its adaptor, then clean off any excess oil on the tool and tightly screw the screw (#11) back into the tool;...
- Page 7 DRPB48V Operation Manual After extensive use, the tool may accumulate small metal chips from rivets within the nose assembly of the tool. This will compromise the tool’s efficiency; therefore, it is recommended that you clean or change the nose assembly parts periodically.
- Page 8 DRPB48V Operation Manual 4) Disassemble clamping sleeve (#3): 5) Take out the 3-jaw set (#4) from the clamping sleeve (#3), then remove the assembly pusher (#5), the pusher spring (#6) and mandrel tube (#20) from the tool. Once removed, inspect all parts for wear before cleaning and replacing them.
- Page 9 DRPB48V Operation Manual 7) Place the 3-jaw set (#4) into the clamping sleeve (#3) and be sure that all 3 jaws are seated in the correct position 8) Place the clamping sleeve (#3) with the 3-jaw set (#4) inside it onto the assembly pusher...
-
Page 10: Troubleshooting
DRPB48V Operation Manual TROUBLE SHOOTING Troubles Possible Causes Solutions Rivet mandrel does not break 1. 3-jaw set worn or damaged. 1. Change 3-jaw set. 2. Insufficient hydraulic oil in 2. Refill hydraulic oil. tool. 3. Increase air supply pressure 3. Air supply with low pressure. - Page 11 DRPB48V Operation Manual TOOL EXPLOSIVE ILLUSTRATION...
-
Page 12: Parts List
DRPB48V Operation Manual PARTS LIST PART POSITION PART CODE PART DESCRIPTION Quantity in Tool/Kit P09005-00 nosepiece E/3.3 - 4,8/5,0mm A00001-00 assembly front sleeve P00003-00 clamping sleeve P00004-00 3-jaw set A00145-00 assembly pusher 5,0 P00181-00 pusher spring P00173-00 clamping sleeve locknut... -
Page 13: Parts List (Cont)
DRPB48V Operation Manual PARTS LIST (cont) PARTS POSITION ART CODE DESCRIPTIONS ENG Quantities in Tool/Kit P00035-00 connecting rod P00058-77 short trigger A00008-00 assembly grips F00014-00 P00039-00 screw F00015-00 air adaptor standard A00046-00 air adaptor with hose and switch F00048-00 A-circlip...
