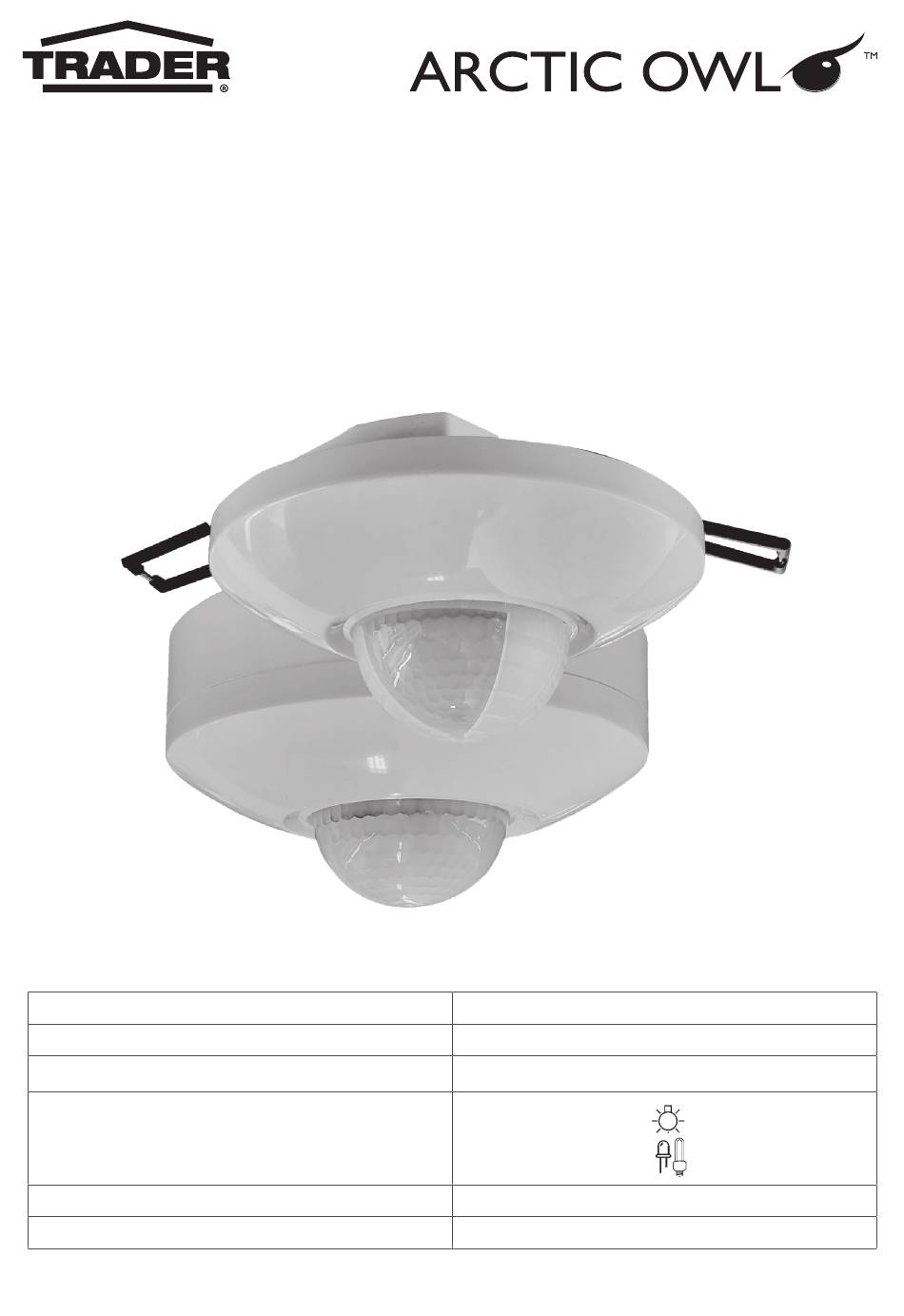

Passive Infrared Sensor, 360° Recess or Surface Mount
Specifications
Power Source
: 220-240V/AC
Power Frequency
: 50/60Hz
Ambient Light: <3-2000LUX (adjustable)
Time Delay
:
Min
: 10sec±3sec
Max
: 30min±2min
Working Humidity
: <93%RH
IP Class
: IP44
OWPIR360RS
INSTRUCTIONS
Detection Range
Detection Distance
Working Temperature
Rated Load
Power Consumption
Installation Height
1
: 360°
: Radius 8m (<24°) (adjustable)
: -20~+40°
: Max.2000W
1000W
: approx 0.5W
: 2.2-4m
Advertisement
Related Manuals for Trader ARCTIC OWL OWPIR360RS
Summary of Contents for Trader ARCTIC OWL OWPIR360RS
- Page 1 OWPIR360RS Passive Infrared Sensor, 360° Recess or Surface Mount INSTRUCTIONS Specifications Power Source Detection Range : 220-240V/AC : 360° Power Frequency Detection Distance : 50/60Hz : Radius 8m (<24°) (adjustable) Working Temperature Ambient Light: <3-2000LUX (adjustable) : -20~+40° Time Delay Rated Load : Max.2000W : 10sec±3sec...
-
Page 2: Safety Information
Safety Information The OWPIR360RS is a mains connected device and is intended for installation in a fixed location by a Licensed Electrical Contractor in accordance to applicable Australian wiring rules. The product must be installed and used in conjunction with detail provided in the enclosed instructions, failure to do so may cause serious injury. - Page 3 METHOD 2 – SURFACE MOUNT (FIG 2): Remove metal springs from unit. (Caution: clips are spring loaded and can damage fingers if not handled correctly) Mount separate housing in desired position, be sure to use supplied grommets for cable penetrations. Where grommets aren’t used, please use a silicon or similar product to seal any cable penetrations into base plate.
- Page 4 Wiring diagram (connecting to the terminal block): FIG 4: Connection: WARNING! Warning. Danger of death through electric shock! • Must be installed by professional electrician. • Disconnect power source. • Cover or shield any adjacent live components. • Ensure device cannot be switched on. •...
-
Page 5: Installation Advice
• Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment. • SENS adjustable: It can be adjusted according to using location. The detection distance of low sensitivity could be only 6m and high sensitivity could be 16m which fits for large room. - Page 6 TEST: Height of installation: 2.2-4m Detection Distance: Max.16m • Turn the LUX knob clockwise on the maximum (sun). Turn the SENS knob clockwise on the maximum (+). Turn the TIME knob anti-clockwise on the minimum (10s). • Turn the TIME knob clockwise to the minimum, turn the LUX knob clockwise to the maximum ‘ ’...
- Page 7 NOTES: • Avoid installing it on or near moving objects. • There shouldn’t be any obstruction or moving object in front of the detection window that can affect detection and performance. • Avoid installing it near air temperature alteration zones such as air conditioners, central heating, air conditioning ducts, etc.
- Page 8 2 Year Manufacturer’s Warranty This product has been manufactured to the highest quality standards. This product is warranted to the original purchaser and is not transferable. The product is guaranteed to be free from defects in workmanship and parts for a period of 5 Years from the date of purchase. Defects that occur within this warranty period, under normal use and care will be repaired, replaced or refunded.
