Specifications
Supply Voltage
Maximum Incandescent Lighting Load
Maximum Induction Load
Sensor Power Consumption
Detection Method
Weatherproof Rating
Time Delay
Detection Angle
Detection Distance

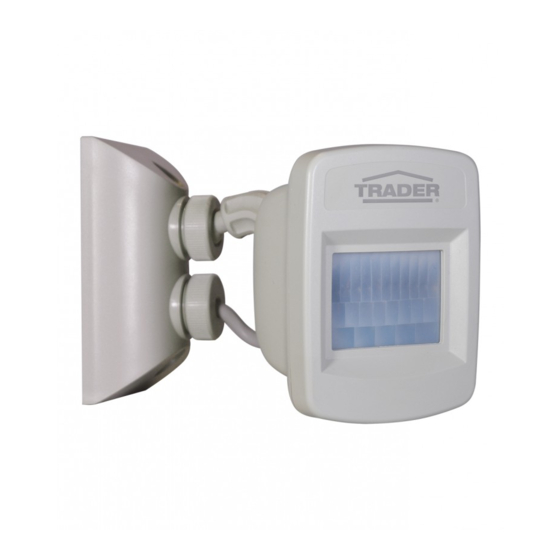

OWPIROD
Outdoor Infrared Sensor
220-240V AC 50Hz
10A 2400W
5A 1200W
0.7W
Passive Infrared
IP66
5 to 10 seconds
Warm up to 30 seconds
Up to 110°
Up to 18m
Advertisement
Table of Contents
Related Manuals for Trader ARCTIC OWL OWPIROD
Summary of Contents for Trader ARCTIC OWL OWPIROD
- Page 1 OWPIROD Outdoor Infrared Sensor Specifications Supply Voltage 220-240V AC 50Hz Maximum Incandescent Lighting Load 10A 2400W Maximum Induction Load 5A 1200W Sensor Power Consumption 0.7W Detection Method Passive Infrared Weatherproof Rating IP66 5 to 10 seconds Time Delay Warm up to 30 seconds Detection Angle Up to 110°...
- Page 2 Safety Information The OWPIROD is a mains connected device and is intended for installation in a fixed location by a Licensed Electrical Contractor in accordance to applicable Australian wiring rules. The product must be installed and used in conjunction with detail provided in the enclosed instructions, failure to do so may cause serious injury.
- Page 3 Steps for Installation: Switch power OFF at meter box. Refer to FIG 1. Use the holes (A) on the Mounting Base (B) to mark the position of the fixing screws on the selected mounting surface once the mounting position has been established.
- Page 4 Set Up & Operation The Arctic Owl OWPIROD Outdoor Sensor is equipped with a highly sensitive PIR (Passive Infrared) motion detector. A multi-cell technology fresnel lens is used to divide the sensors basic detection range into multiple separate segments or zones. The sensor automatically scans for movement between zones, and then will activate connected devices (such as security lighting) as a result.
- Page 5 To adjust sensor head (refer to FIG 5): Simply loosen the two ball joint locking nuts (A), located at either end of the sensor arm (B), adjust sensor head (C) and tighten nuts (A). NOTE: Always loosen locking nuts on sensor before adjusting. Failure to do so can damage the sensor or crack the lock nut.
- Page 6 Walking the Zone to Commission Installation Rotate the lux knob fully clockwise for daylight operation, set the time control to min (Anti-clockwise) and the sensitivity to maximum (clockwise). Turn on the power at the isolating switch. The load device should turn on for a short period of time.
- Page 7 After Installation & Set Up To ensure the installation is functioning properly and meets the security/lighting needs, further adjustments may be required to maintain ideal light level and sensitivity settings. To ensure a continued high level of performance, ensure the sensor head lens area is regularly cleaned (3 monthly intervals) from spider webs and dust using a damp cloth.
- Page 8 5 Year Manufacturer’s Warranty This product has been manufactured to the highest quality standards. This product is warranted to the original purchaser and is not transferable. The product is guaranteed to be free from defects in workmanship and parts for a period of 5 Years from the date of purchase.
