Power Source
Power Frequency
Power Consumption
Rated Load
Detection Angle
Working Temperature
Working Humidity
Installation Height
Detection Motion Speed
Weather Protection
Time Delay
220-240V/AC
50Hz
0.75W
1200W max Tungsten/Incandescent
300W max Fluorescent
100W LED (SBL)
180°
-10°C ~ +40°C
<93%RH
1.8m~2.5m
0.6-1.5m/s
IP44
min:10sec±3sec
max: 10min±2min
Light-control : <3LUX- daylight
(adjustable) Detection

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCTIC OWL OWPIROD 180 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trader ARCTIC OWL OWPIROD 180

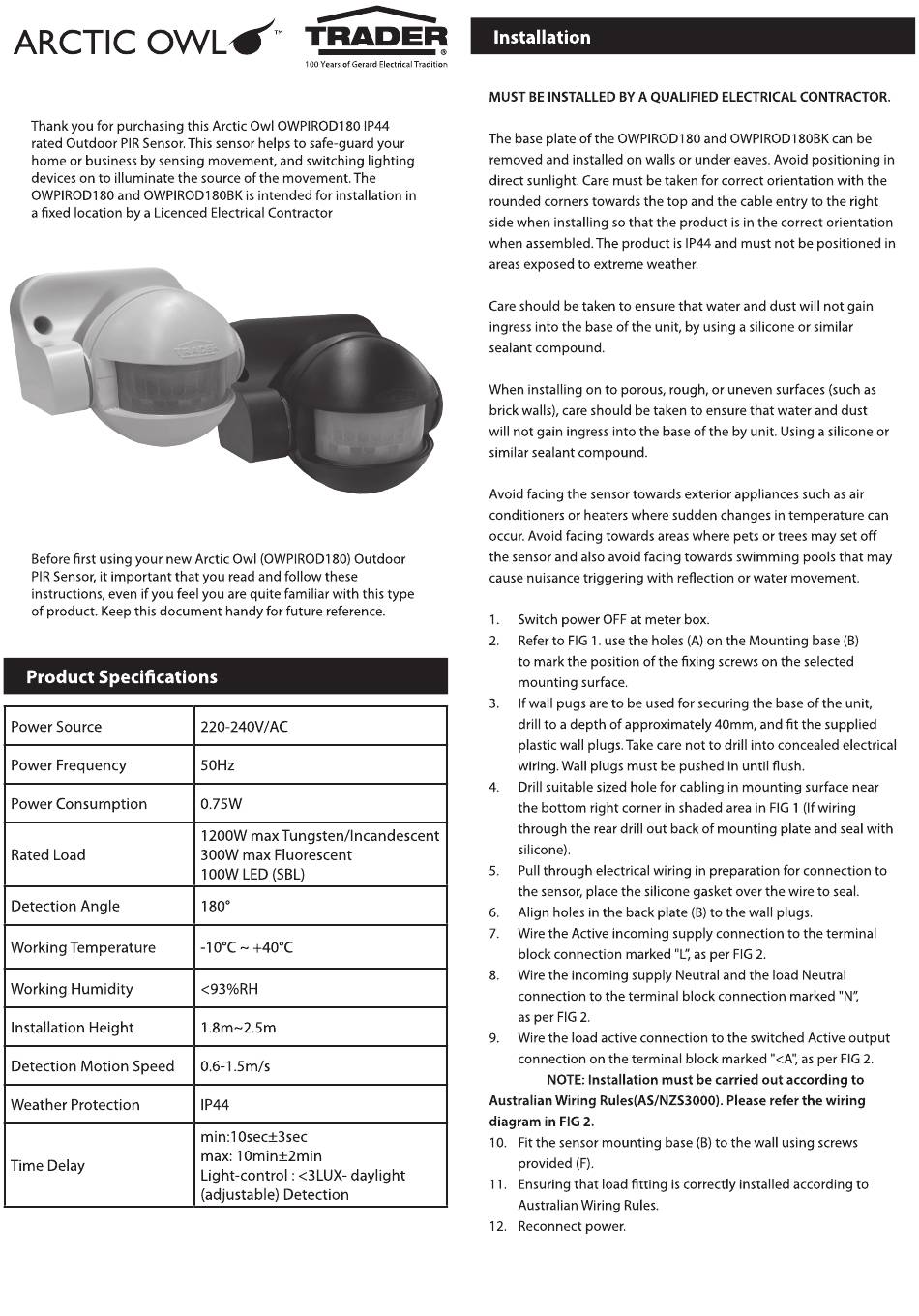

  • Page 1 Power Source 220-240V/AC Power Frequency 50Hz Power Consumption 0.75W 1200W max Tungsten/Incandescent Rated Load 300W max Fluorescent 100W LED (SBL) Detection Angle 180° Working Temperature -10°C ~ +40°C Working Humidity <93%RH Installation Height 1.8m~2.5m Detection Motion Speed 0.6-1.5m/s Weather Protection IP44 min:10sec±3sec max: 10min±2min...
  • Page 2 SIZE FIXING SIZE SIZE LINE DRAWING DEBURR AND UNLESS OTHERWISE SPECIFIED: FINISH: DO NOT SCALE DRAWING REVISIO BREAK SHARP DIMENSIONS ARE IN MILLIMETERS EDGES SURFACE FINISH: AS IN NOTES TOLERANCES: 142-144 Fullarton Road ROSE PARK, South Australia, 5067 LINEAR: X.XX = 0.1 Tel (08) 8122 2333;...
  • Page 3 180°...
  • Page 4 Problem Reason Solution Unit will not operate Sensor not in daylight operation mode. Rotate LUX control fully clockwise. during daylight Cover sensor unit with a black cloth for a period of 5 min to check that the light does not trigger. Occasionally,winds and draughts may activate the sensor.
