ICP2-ISO(G3) Quick Start
•

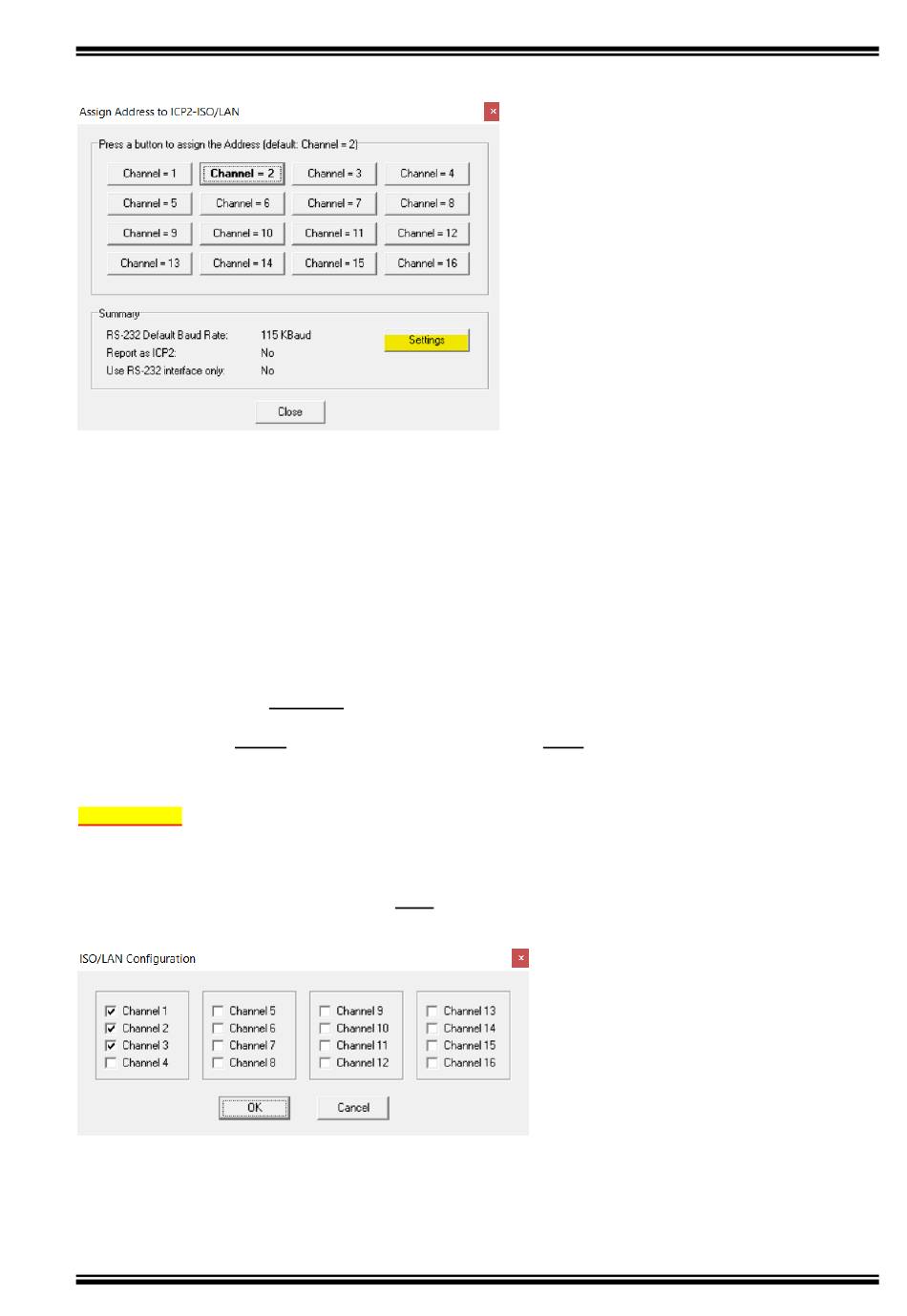

Press button "Channel = XX" to assign a new address to the connected programmer
•
Place sticker with channel number on the programmer
•
Connect the next programmer to be assigned to the PC
•
Repeat steps above for more programmers
•
Press Alt-F4 to exit the software
5.2

Final Hardware Installation

•
Connect programmer number 1 to the PC with USB or RS-232 cable
•
Connect RS-232 output of the 1-st programmer to RS-232 input of the 2-nd programmer
•
Connect RS-232 output of the 2-nd programmer to RS-232 input of the 3-nd programmer and so on
don't leave non-terminated output of RS-232 cable
IMPORTANT:
5.3

Preparing Environment and Transferring Environment to Programmer

•
Select "Programmer → ICP2-ISO/LAN(Multi)"
•
Mark enabled channels (channels 1, 2 and 3 in example below)
•
Load a HEX file: File → Open (Import)
•
Save Environment:
- open "Environment → Save Environment As..."
- type in environment name, 16 characters max
