5. Battery Installation

5.1 Checks before Installation

There are few things to check before installing the battery to ensure that it has no defects.
⚫
Check the battery voltage using following instruction.
⚫
Press and hold the panel button for 4s and release after two indicators turn on.
⚫
Measure the voltage at the terminal interface with a voltmeter. If the voltage is lower
than 48V, do not use the battery and contact customer service.
5.2 Battery Installation

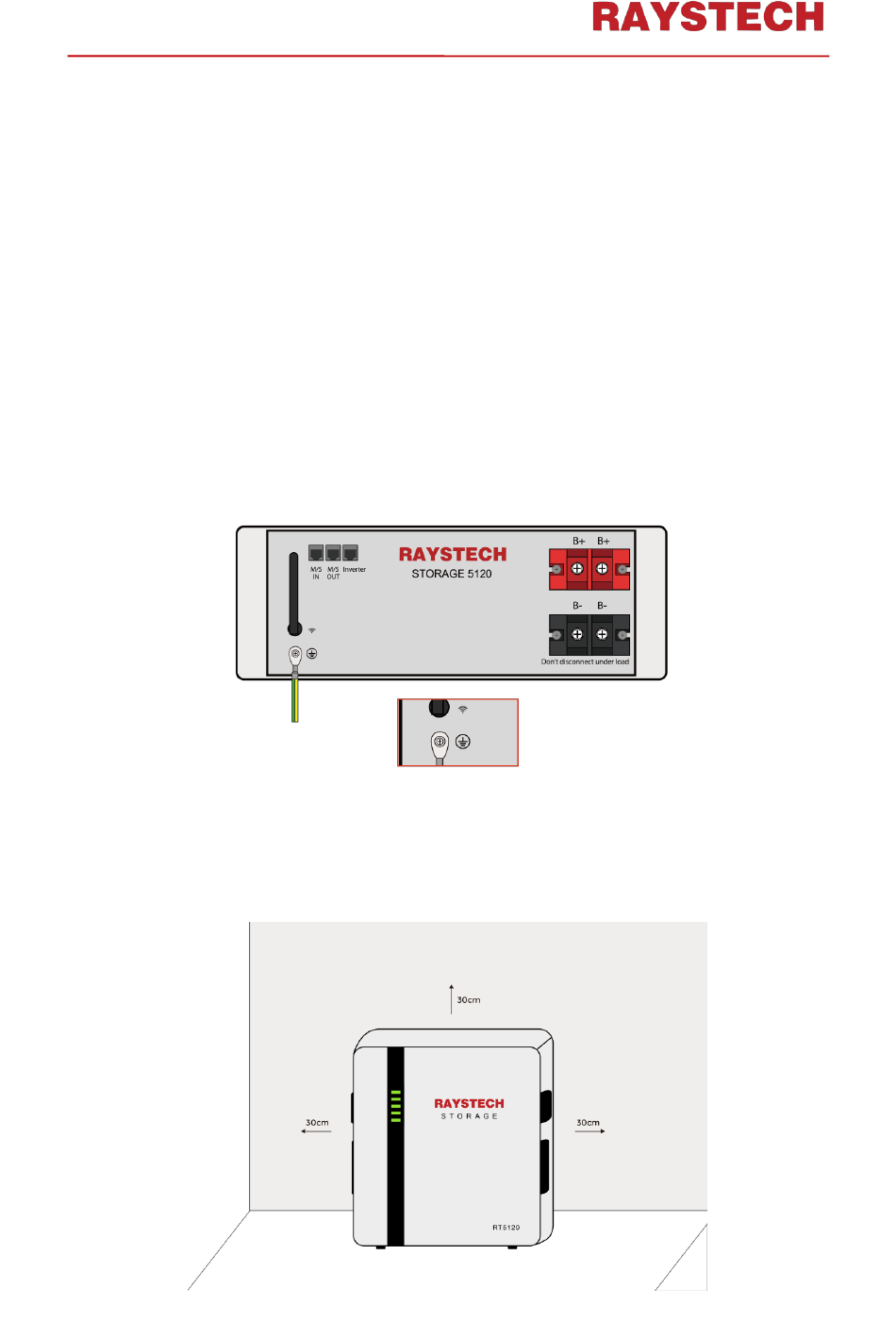

There is a grounding icon on the front of the battery:
⚫
For Parallel connection, the grounding cable is recommended to be installed.

5.2.1 Ground Installation

1. Place the battery in the right place (the details about installation position described in
chapter 4.2).
