Radios
There are many good radios on the market.

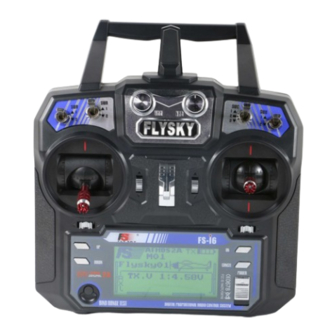

Currently we are using the Flysky FS-i6 Transmitter with FS IA6 Receiver. This radio-
receiver package can be purchased on Amazon for about $55.00.
Radio Specifications:
Channels: 6
Model Type: Glider/Helicopter (and Sailboats!)
RF : 2.405-2.475GHz
Bandwidth: 500KHz
Band: 142
RF Power: Less than 20dBm
2.4G System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: Less Than 4.2V
DSC Port: PS2; Output: PPM
Port: No
Length: 26mm * 2(Dual Antenna)
Power: 1.5AA * 4
Display Mode: Transflective STN Positive Type,
128 * 64 Dot Matrix VA72 * 39mm, White Backlight.
Size: 174 * 89 * 190mm
Weight: 392g
Online Update: Yes
Color: Black
Receiver Specifications:
Channels: 6 Channels
Model Type: Airplane / Glider / Helicopter
Frequency : 2.4--2.48GHZ
Band Width Number: 140
Transmitting Power: Not More than 20dBm
RF Receiver Sensitivity: -105dbm
2.4G mode: The second of an enhanced version of the automatic digital system
Encoding: GFSK
Antenna Length: 26mm * 2 (Dual Antenna)
Input Power: 4.0-8.4V DC
Size: 47 * 26.2 * 15mm
Weight: 14.9g
Color: Black
i-Bus interface: Yes
