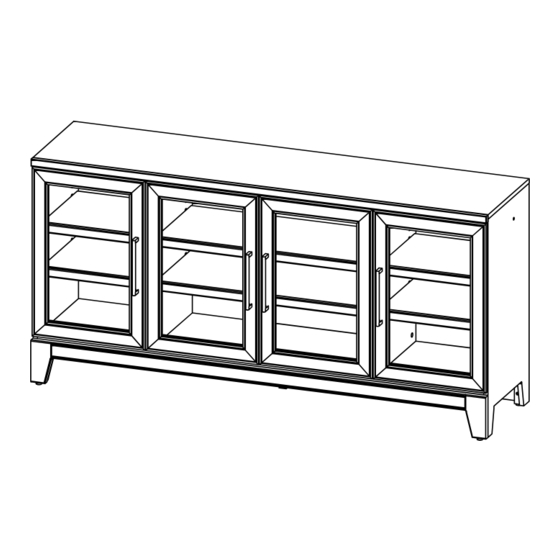

TV CONSOLE W/GLASS
DOORS
Important: Be sure to check all packing material carefully for small parts which may come
loose inside carton during shipment. Separate, identify and count all parts and metal
hardware.
Compare with parts list and hardware illustrations to be sure all parts are present. If any
part(s) is missing or damage, contact your dealers customer services deparment. For
efficient and fast service, please indicate the model number and the parts needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be
in the parts bag, they may already be assembled.
TOOLS REQUIRED
(Not included)
Phillips Screwdriver

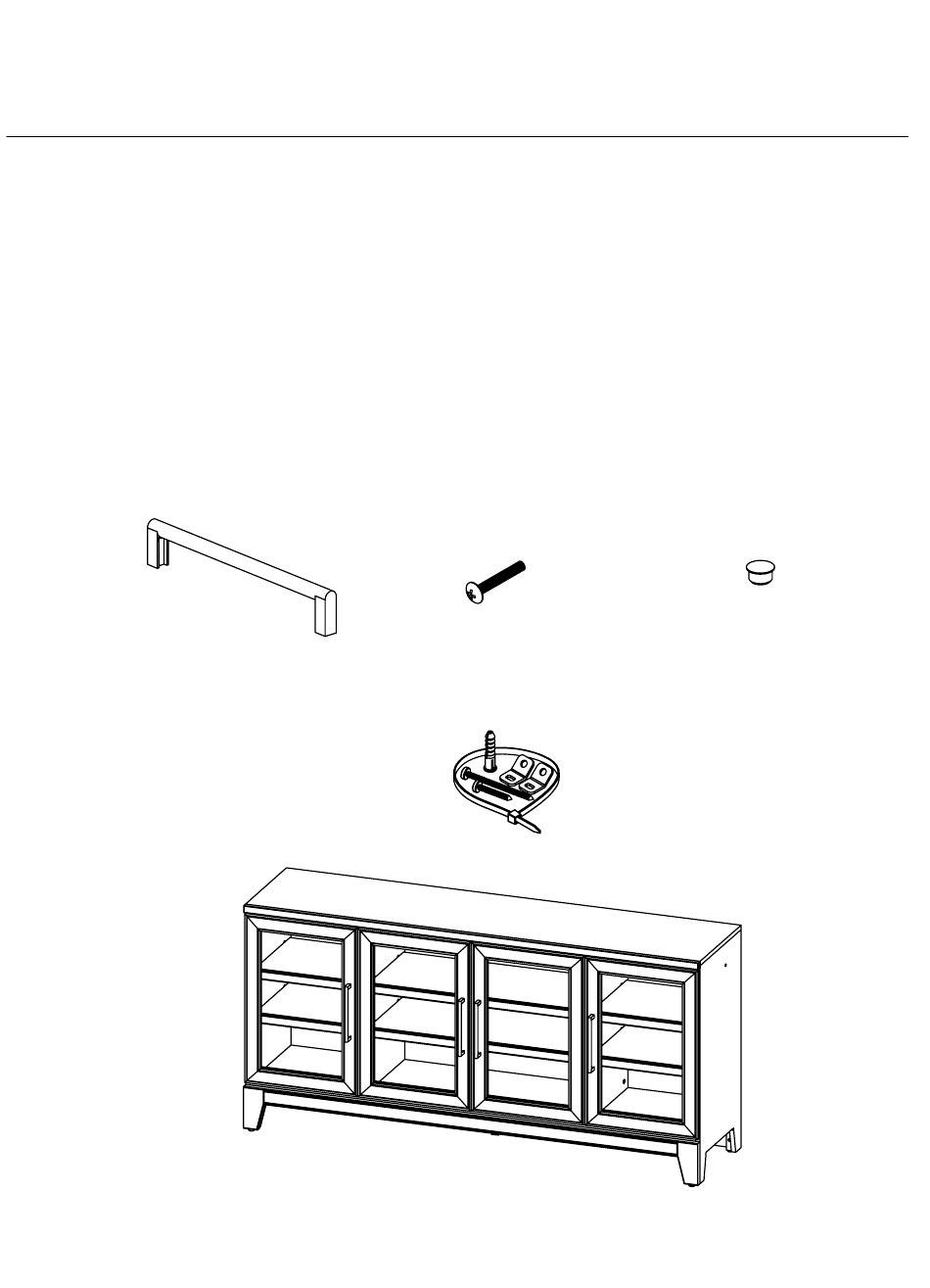

HARDWARE:
BAR PULL
Part No. HBJ-0726
(4 Pcs) INSTALLED
ASSEMBLY INSTRUCTIONS
MODEL No. CAL149-228/ 24078239
BOLT CH. TRUSS 8 x 32 x 1"
Part No. HCPP-07
(8 Pcs) INSTALLED
ANTI-TIPPING KIT UV RESISTANT
HB-65UV
Part No.
(1 Pc)
10MM HOLE PLUG BLACK
Part No. HCPH-T
(2 Pcs) INSTALLED
PAGE 1 OF 8
Advertisement
Related Manuals for ROOMS TO GO CAL149-228
Summary of Contents for ROOMS TO GO CAL149-228
- Page 1 ASSEMBLY INSTRUCTIONS TV CONSOLE W/GLASS MODEL No. CAL149-228/ 24078239 DOORS Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s) is missing or damage, contact your dealers customer services deparment.
- Page 2 INSTRUCTIONS SHEET ADJUSTABLE WOOD SHELF STEP 1. STEP 2. STEP 3. PAGE 2 OF 8...
-
Page 3: Installation Instructions
Warning Advertencia Avertissement WARNING INSTALL FURNITURE TIPPING RESTRAINT KIT ANTI-TIP Installation instructions: This tip restraint must be attached to wall stub using 2” screw enclosed 1.Attach a bracket securely to the back top rail of the furniture using the 5/8” screw provided through the smaller hole. 2. -
Page 4: Vertical Adjustment
Directions of Adjusting Euro Style Hinges 1.- PLEASE REMOVE SHIPPING SCREW. #1 2.- LATERAL ADJUSTMENT a)Loosen screw #4 slightly. b)Turn screw #2 to move door leftor right. c)Re-tighten screw #4. d)Adjust all hinges accordingly. 3.- VERTICAL ADJUSTMENT Loosen screws #3 to move door upor down, then tighten securely. - Page 5 MANUFACTURER: Oak Furniture West ADRESS: Otay Mesa Ca. 92154 CATALOG: TV CONSOLE W/GLASS DOORS MODEL: CAL149-228 /24078239 Fits most 65" flat panel tvs. Maximum load 90 lbs. Maximum shelf load 25 lbs. WARNING THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVs.
-
Page 6: Care And Maintenance
Care and Maintenance • Use a soft, clean cloth that will not scratch the surface when dusting. • Use of furniture polish is not necessary. Should you choose to use polish, test first in an inconspicuous area. • Using solvents of any kind on your furniture may damage your furniture's finish. •... - Page 7 WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following safety information. TV Console Weight Specifications: • The maximum weight for the TV on the Console top is: 90 Lbs. •...
- Page 8 Placing TV more than two inches from the back edge may increase the risk that the console will tip over' MANUFACTURER: Oak Furniture West ADRESS: Otay Mesa Ca. 92154 CATALOG: TV CONSOLE W/GLASS DOORS MODEL: CAL149-228 / 24078239 PAGE 8 OF 8...
