OWNER'S MANUAL

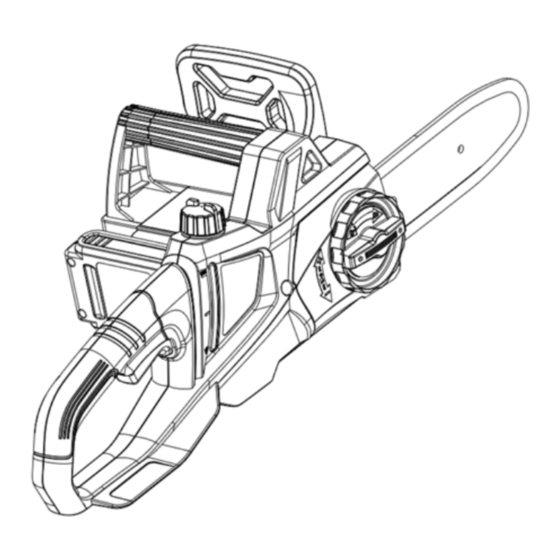

10-Inch 20V Lithium-ion Chainsaw
With (1) 20V 2.0Ah Lithium-ion Battery
Copyright. All Rights Reserved.
Model LCS31020-1
BATTERY MUST BE CHARGED BEFORE
FIRST USE. TWO TO THREE INITIAL
CHARGING/DISCHARGING CYCLES MAY
BE REQUIRED TO ACHIEVE
MAXIMUM RUN TIME/CAPACITY.
Your chain saw has been engineered and manufactured to our high standard for dependability, ease of
operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the owner's manual
before using this product.
ADD OIL TO OIL RESERVOIR BEFORE FIRST USE. SEE MAINTENANCE SECTION FOR COMPLETE INSTRUCTIONS.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PART,
SERVICE QUESTIONS? GO TO AMERICANLAWNMOWER.COM OR CALL
1-800-633-1501 BETWEEN 8:00AM-5:00PM EST FOR ASSISTANCE.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CA Compliant Charger Included (Model No. CHL82000-1)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yardworks LCS31020-1
Summary of Contents for Yardworks LCS31020-1
- Page 1 OWNER’S MANUAL 10-Inch 20V Lithium-ion Chainsaw With (1) 20V 2.0Ah Lithium-ion Battery Copyright. All Rights Reserved. Model LCS31020-1 BATTERY MUST BE CHARGED BEFORE FIRST USE. TWO TO THREE INITIAL CHARGING/DISCHARGING CYCLES MAY BE REQUIRED TO ACHIEVE MAXIMUM RUN TIME/CAPACITY. CA Compliant Charger Included (Model No. CHL82000-1) Your chain saw has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety.
-
Page 2: Important Safety Warnings
Carrying power packs. Use of any other battery packs may create a risk of tools with your finger on the switch or energizing power tools that injury and fire. have the switch on invites accidents. LCS31020-1... -
Page 3: Chain Saw Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS • Service When battery pack is not in use, keep it away from other met- • al objects, like paper clips, coins, keys, nails, screws or other Have your power tool serviced by a qualified repair person small metal objects, that can make a connection from one using only identical replacement parts. -
Page 4: Product Specifications
FEATURES PRODUCT SPECIFICATIONS LCS3102-1 Input……………………………..20 V / 2.0 Ah, DC Only Bar Length………………..10” Bar (M1501040-1041TL) Chain…………………...………….………..…..CL15040 (Oregon 91PJ040X) Weight………………….…………………………… 6.1 lbs. - Automatic oiling system—Protective bar cover - HAND GUARD FRONT HANDLE CHAIN OIL TANK CAP GUIDE BAR BATTERY PACK LOCK KNOB REAR HANDLE CHAIN TENSIONER... -
Page 5: Packing List
NOTE: When replacing the guide bar and chain, use only identical replacement parts. • Remove the battery from saw. • Loosen the chain saw lock knob counterclockwise. LCS31020-1... - Page 6 Lift the tip of the guide bar up and retighten the knob. Ensure that the chain will rotate without binding. NOTE: A new chain tends to stretch, check chain tension frequently and tension as required. LCS31020-1...
-
Page 7: Cutting Instructions
Do not rely exclusively upon the safety devices built into the saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. LCS31020-1... -
Page 8: Felling A Tree
Then insert soft wooden or plastic wedg- WARNING: Do not cut trees near electrical wires or buildings. es into the cut so they do not touch the chain. The wedges can be driven in, little by little, to help jack the tree over. LCS31020-1... - Page 9 UNDER-BUCKING – Begin on the under side of the log with the top of the saw against the log; exert light pressure upward. During under-bucking, the saw will tend to push back at you. Be prepared for this reaction and hold the saw firmly to maintain control. LCS31020-1...
- Page 10 Depth gauges must be adjusted with stroke towards the front the flat file in the same direction the corner of the tooth. adjoining cutter was filed with the round file. Use care not to contact cutter face with flat file when adjusting depth gauges. LCS31020-1...
-
Page 11: Charging The Battery Pack
CHARGING THE BATTERY PACK Charge the battery pack only with Yardworks 20V Chargers. When fully charged, the battery can be safety stored in temperatures down to –4° degrees F for a period of up to four weeks, before Allow at least 80 minutes of charge time before initial use of the requiring charging. -
Page 12: Lubrication System
- Replace damaged bar and chain with identical replacement parts. CALL US FIRST !! Call us first with questions about operating or maintaining your chain saw at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on americanlawnmower.com LCS31020-1... -
Page 13: Parts And Service
20V charger LCS20-BCK-1 10”/8” Bar Assembly Kit CALL US FIRST !! Call us first with questions about operating or maintaining your chain saw at 1.800.618.7474 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on americanlawnmower.com LCS31020-1... - Page 14 LCS31020-1 YARDWORKS WARRANTY POLICY • 2 Year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for per- sonal, household, or family use. • 2 Year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase when used for personal, household, or family use.
