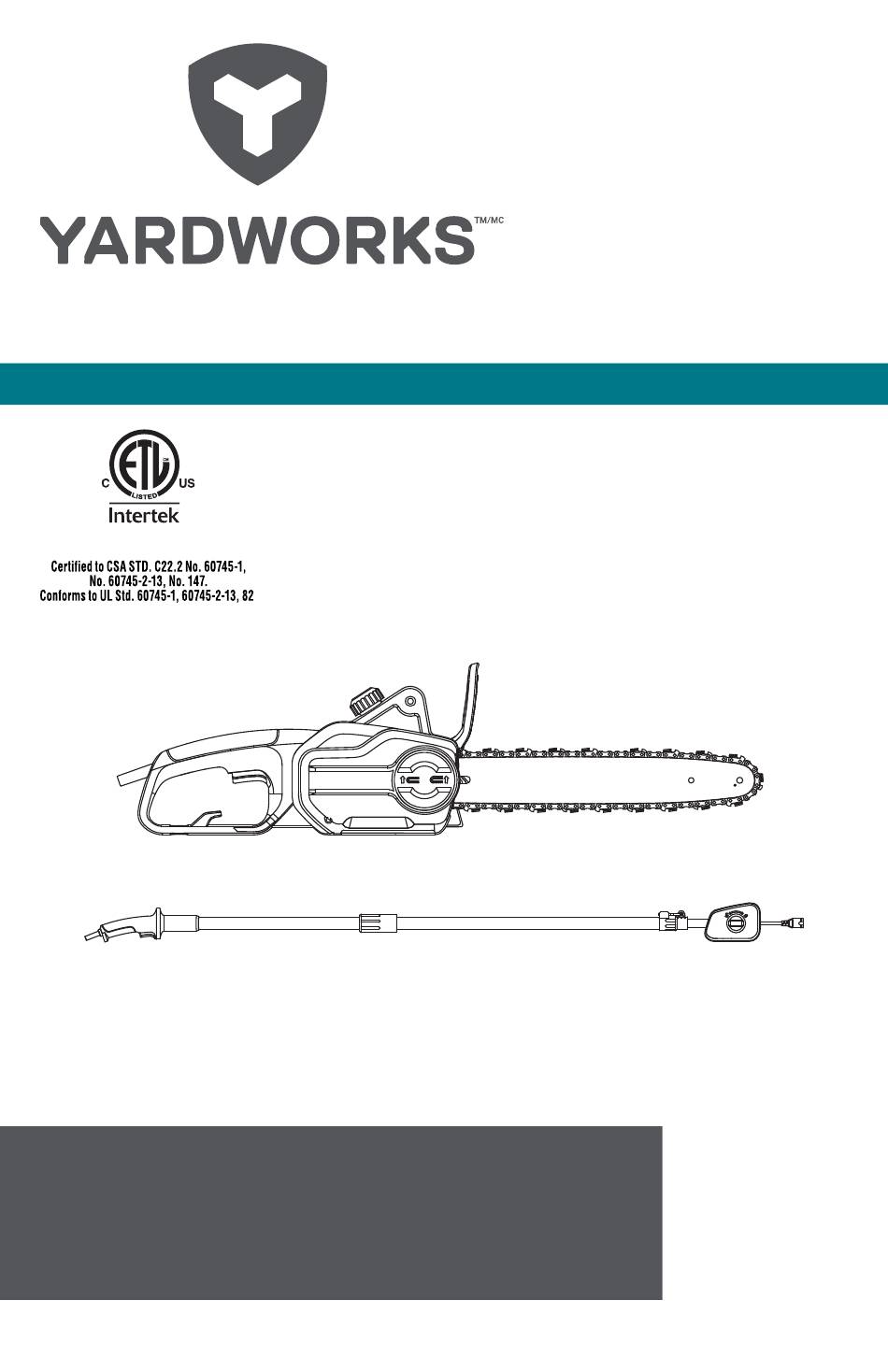

- Page 1 2-in-1 Pole Saw/Chainsaw model number 054-5757-2 | contact us: 1.866.523.5218 3025736 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
- Page 2 054-5757-2 | contact us: 1.866.523.5218 General Safety Rules Know Your Chainsaw Accessories Exploded View Parts List Assembly Troubleshooting Symbols Warranty TECHNICAL SPECIFICATIONS Voltage 120 V~ 60 Hz Rated Power Bar Length 10” (254 mm) Chain Speed 8.5 m/s...
- Page 3 054-5757-2 | contact us: 1.866.523.5218 WARNING: Some dust created by power GENERAL POWER TOOL SAFETY sanding, sawing, grinding, drilling and WARNINGS other construction activities contains WARNING: Read all safety warnings chemicals known to cause cancer, birth and instructions. Failure to follow the defects or other reproductive harm.
- Page 4 054-5757-2 | contact us: 1.866.523.5218 with grounded power tools. b) Use personal protective equipment. plugs and matching outlets will reduce Always wear eye protection. Protective risk of electric shock. equipment such as dust mask, non- skid safety shoes, hard hat, or hearing...
- Page 5 054-5757-2 | contact us: 1.866.523.5218 correct power tool for your application. power tool, taking into account the working conditions and the work to better and safer at the rate for which it be performed. Use of the power tool for operations different from those intended was designed.
- Page 6 054-5757-2 | contact us: 1.866.523.5218 equipment for head, hands, legs control. and feet is recommended. Adequate 12. Cut wood only. Do not use chainsaw protective clothing will reduce personal for purposes not intended. For example: do not use chainsaw for contact with the saw chain.
- Page 7 054-5757-2 | contact us: 1.866.523.5218 forces can be controlled by the operator Table 1 if proper precautions are taken. Do not let Minimum gauge for extension cords go of the chainsaw. Volts Total length of cord Do not overreach and do not cut 50’...
- Page 8 054-5757-2 | contact us: 1.866.523.5218 undersized extension cord will cause a WARNING: Read all instructions drop in line voltage resulting in loss of power and overheating. Table 1 shows the correct size to use depending on cord FOR ALL APPLIANCES length and nameplate ampere rating.
- Page 9 054-5757-2 | contact us: 1.866.523.5218 not in use, appliances should be stored of a polarized extension cord. The appliance indoors in dry, and high or locked-up place out of reach of children. into the extension cord, reverse the plug.
- Page 10 054-5757-2 | contact us: 1.866.523.5218 c) Hold the pole pruner by insulated strike any utility line or cause any property gripping surfaces only, because the saw damage. If the tree does make contact chain may contact hidden wiring or its with any utility line, the company should be own cord.
- Page 11 054-5757-2 | contact us: 1.866.523.5218 stop cutting before the felling back cut is 5. Bucking a log complete and use wedges of wood, plastic or Bucking is cutting a log into lengths. It is aluminium (Z) to open the cut and drop the tree along the desired line of fall ( ).
- Page 12 054-5757-2 | contact us: 1.866.523.5218 When the log is supported on both ends, as illustrated in Figure 6, cut 1/3 the diameter from the top (overbuck) (1). Then make the Figure 6 When bucking on a slope always stand on the uphill side of the log, as illustrated in Figure 7.
- Page 13 054-5757-2 | contact us: 1.866.523.5218 Rear Handle Chain Direction Symbol On/Off Switch Oil Outlet Lock-off Button Bar Clamp Oil Level Window Fastening Bar Bolt Oil Filler Cap Bar Locating Tabs Front Handle Bar And Chain Storage/ Transportation Cover...
- Page 14 054-5757-2 | contact us: 1.866.523.5218 Extend pole Blade protection cover Bar: 10” (25.4 cm) Chain: 40 pitch We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the accessory packaging for further details. Store...

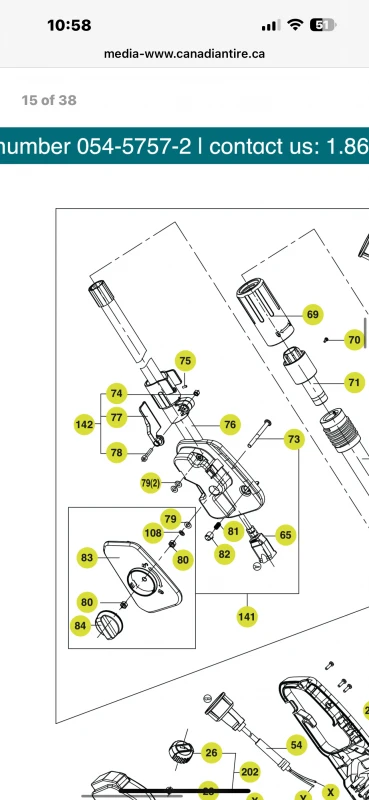

- Page 15 054-5757-2 | contact us: 1.866.523.5218 2(5) 79(2) 2(2) 59(2) 5(2) 2(2) 2(5) 60(2) 34(3) 2(4)
- Page 16 054-5757-2 | contact us: 1.866.523.5218 Item Description QTY. Item Description QTY. Protect Plate Self-tapping Screw Self-tapping Screw Motor Cover Flange Torsional Spring Chain Guard Carbon Brush (Pair) Compression Spring Rear Bracket Tension Wheel Stator Bolt Left/Right Housing Knob Body...
- Page 17 054-5757-2 | contact us: 1.866.523.5218 Item Description QTY. Item Description QTY. Tube Assembly Iii Guide Bar Lock Knob Oil Bottle Cap Set Screw Clutch Cover Assembly Washer Extension Support Compression Spring Button Handle Cover Knob Body Left/Right Housing...
- Page 18 054-5757-2 | contact us: 1.866.523.5218 ASSEMBLY AND ADJUSTMENTS INTENDED USE The pole saw/chainsaw is intended for wood: sawing of trees, trees trucks, branches, wooden beams, planks, etc. Cuts can be sawed with or across the grain. This product is not suitable for sawing mineral materials, plastics or non-wood building materials.
- Page 19 054-5757-2 | contact us: 1.866.523.5218 5. Check to make sure all parts are seated properly and hold chain and guide bar in a level position. (See Fig. A3) 6. Fit the Chain Cover (12) and tighten the Chain Cover by turning the Chain Tensioning Knob (11) clockwise until it is tight.(See Fig.
- Page 20 054-5757-2 | contact us: 1.866.523.5218 • Maintain proper chain tension always. A loose chain will increase the risk of kickback. A loose chain may jump out of guide bar groove. This may injure operator and damage chain. A loose chain will cause chain, bar, and sprocket to wear and correct tensioning.
- Page 21 054-5757-2 | contact us: 1.866.523.5218 4. Avoid dirt or debris entering oil tank, re-screw Oil Filler Cap (5) and tighten. CAUTION: To allow venting of the oil reservoir, small breather channels are provided between the Oil Filler Cap and the strainer. To prevent leakage, ensure machine is left in a horizontal position (Oil Filler Cap uppermost) when not in use.
- Page 22 054-5757-2 | contact us: 1.866.523.5218 WARNING! • Before attaching the power cord of the machine to the power cord of the extension pole, make sure that the tool is switched off and unplugged from the power supply. power cord of the machine to the power cord of the extension pole, and then attach the power cord of the extension pole to power supply.
- Page 23 054-5757-2 | contact us: 1.866.523.5218 OPERATION POWER ON/OFF 1. SWITCHING ON AND OFF (See Fig. G) ATTENTION: Check the voltage and current supply: The voltage and current supply must comply with the ratings on the product plate. For switching on the tool, press the Lock-off Button (3), then fully press the On/Off Switch (2) and hold in this position.
- Page 24 054-5757-2 | contact us: 1.866.523.5218 (2) Make sure section of log to be cut is not laying on the ground. This will keep the chain from touching the ground as it cuts through the log. Touching the ground while the chain is moving is dangerous and will dull the chain.
- Page 25 054-5757-2 | contact us: 1.866.523.5218 (9) Keep practicing on scrap logs in a secure working area until you get the hang of it and can KICKBACK SAFETY DEVICES ON THIS SAW This saw has a low-kickback chain and reduced kickback Guide Bar (9). Both items reduce the chance of kickback.
- Page 26 054-5757-2 | contact us: 1.866.523.5218 WARNING: NEVER REVERSE HAND Elbow POSITIONS Locked CUTTING WOOD UNDER TENSION (See Fig. N) WARNING: When cutting a limb that is under tension, use extreme caution. Be alert for wood springing back. When wood tension is released, limb could spring back and strike operator causing severe injury or death.
- Page 27 054-5757-2 | contact us: 1.866.523.5218 WARNING: Do not stand directly below a branch being cut. Keep bystanders far away. Do not stand on a ladder or other type of unstable support while using the tool. Do not use the tool near cable, electrical power or telephone lines. Keep 10’ (3 m) away...
- Page 28 054-5757-2 | contact us: 1.866.523.5218 2. Use both hands to grip pole saw. Use only designated grip areas when operating pole saw (See Fig. pole. 4. When ready to make a cut, press the Lock-off Button, then fully press the On/Off Switch (See Fig.
- Page 29 054-5757-2 | contact us: 1.866.523.5218 this cut. Cut 1/3 through diameter of limb. (See Fig. R) 6" 2" to 4" (5 to 10 cm) 2. Move 2 to 4” (5 to 10 cm) farther out on limb. Make second cut from above limb. Continue cut until you cut limb off.
- Page 30 054-5757-2 | contact us: 1.866.523.5218 3. Maintain chainsaw with care. • Never expose saw to rain or direct moisture. • Keep chain sharp, clean, and lubricated for better and safer performance. • Follow steps outlined in this manual to sharpen chain.
- Page 31 054-5757-2 | contact us: 1.866.523.5218 CONDITIONS WHICH REQUIRE CHAIN BAR MAINTENANCE: • Saw cuts to one side or at an angle. • Saw has to be forced through the cut. • Inadequate supply of oil to the bar and chain.
- Page 32 054-5757-2 | contact us: 1.866.523.5218 Keep chain sharp. Your saw will cut faster and more safely. A dull chain will cause undue sprocket, guide bar, chain, and motor wear. If you must force chain into wood and cutting creates only sawdust with few large chips, chain is dull.
- Page 33 054-5757-2 | contact us: 1.866.523.5218 TROUBLESHOOTING TABLE The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent. WARNING: Switch off and remove plug from power source before investigating fault.
- Page 34 054-5757-2 | contact us: 1.866.523.5218 Symbol Name Designation/Explanation Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watts Power Minutes Time Alternating Current Type of current Direct Current Type of current Class II Construction Double-insulated construction Revolutions, strokes, surface speed, orbits etc., per...
- Page 35 054-5757-2 | contact us: 1.866.523.5218 Symbol Name Designation/Explanation Wear head protection. Wear protective gloves. Wear protective footwear. Warning of danger from overhead electric-power lines. SAVE THESE INSTRUCTIONS!
- Page 36 054-5757-2 | contact us: 1.866.523.5218...
- Page 37 054-5757-2 | contact us: 1.866.523.5218 TWO-YEAR LIMITED WARRANTY HOW TO OBTAIN SERVICE Warranty service is available by calling For Two (2) Years from the date of purchase the toll-free helpline, at 1.866.523.5218. within Canada, YARDWORKS CANADA The factory will not accept the return of a...
- Page 38 Made in China. Imported by Yardworks Canada Toronto, Canada M4S 2B8...
