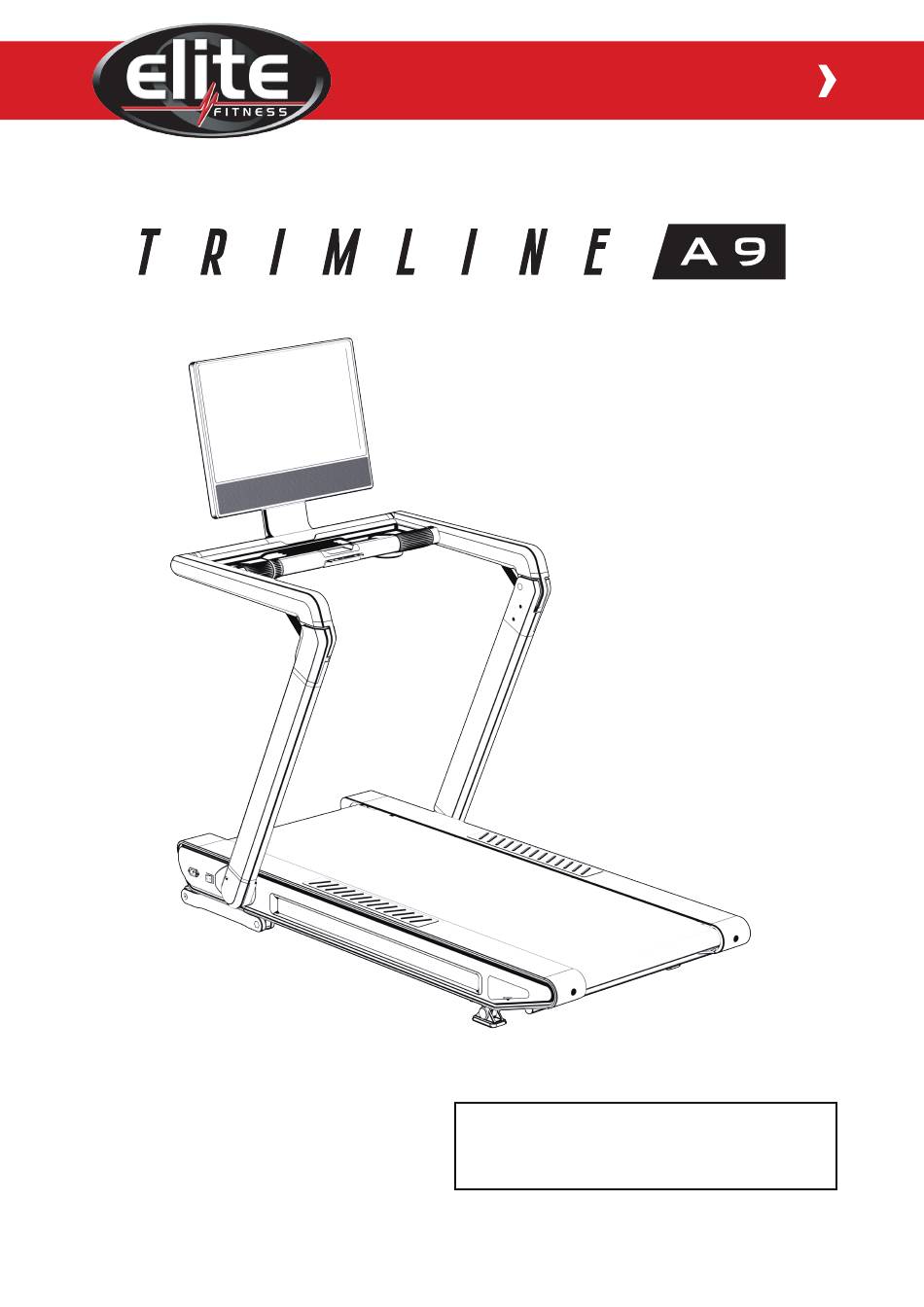

- Page 1 ASSEMBLY MANUAL RECORD SERIAL NUMBER Elite Trimline A9 Treadmill...
- Page 2 Thank you for purchasing the Elite Trimline A9 Treadmill. Elite Trimline A9 Treadmill. Doing so will help to insure that you get the most out of your machine, SERVICE & WARRANTY For service and warranty assistance please visit: (09) 258 9067...
- Page 3 — CONSULT A PHYSICIAN IMMEDIATELY. — — — — — — — Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of — ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 4 User Weight Capacity: 150 kg Dimensions: 163 x 86.5 x 170 cm 115 kg Shipping Weight: Net Weight: 105 kg Engine Power: 2 Motors, 1.25 CHP each Inclined Slope: 15 Levels Speed Range: 0 - 20 km/h Bluetooth: Trimline A9...
- Page 5 Side Rail Front Cover Running Belt Power Switch Lubrication Oil Inlet Wheel Rear Cap Incline Frame Column Fixing Hole Support Seat Hidden Allen Key Running Belt Adjusting Hole Please Note: ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 6 ASSEMBLY INSTRUCTIONS STEP 1: STEP 2: STEP 3: STEP 4: Hold the LED console display with both hands and adjust it upward to a suitable viewing...
- Page 7 ASSEMBLY INSTRUCTIONS STEP 1: Hold the display with both hands and adjust it downward to be parallel to the handrail, see Figure 1. STEP 2: STEP 3: STEP 4: ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 8 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite Trimline A9 Treadmill is now complete! Be sure to fully inspect your Failure to visually check and test and tech the assembly before use can cause damage to the Elite Trimline A9 Treadmill and serious injury to users and bystanders and can also...
- Page 9 MOVING AND STORAGE INSTRUCTIONS running belt, hold the bar with both horizontal bar There are 2 moving wheels under the motor cover, which can be used to move 0.5m 2.0m 0.2m 0.5m ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 10 USER INSTRUCTIONS CONSOLE DISPLAY 23.8 inch 1080p HD Touch Screen Speaker Music Control Bu�ons USB Port Storage Tank Bo�le Holder Safety Key Speed Knob Start/Stop Incline Knob Accessories Silicone Oil Allen Key Manual Power Cord...
- Page 11 Press this bu�on to reduce the volume by 1 bar. Long press this bu�on to con�nually decrease the volume. “Volume+”Bu�on Press this bu�on to increase the volume by 1 bar. Long press this bu�on to con�nually increase the volume. ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 12 USER INSTRUCTIONS FUNCTION BUTTONS Incline knob Speed quick adjustment knob Speed slow adjustment knob INCLINE KNOB The knob on the le� side of the front hand- rail is the incline adjustment key, scroll the knob upward to increase the incline angle and downward to decrease.
- Page 13 The unit is equipped with a power switch that is located on the right side of the front cover. Press the power switch to the on posi�on - as shown in the Figure. ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 14 USER INSTRUCTIONS Turn on the treadmill power, the system will start incline self calibra�on, this takes around 10 seconds. Close the safety key and press START bu�on. The treadmill will start to move at the lowest speed a�er 3 seconds countdown. Adjust the speed with speed adjustment knob and adjust the incline with incline adjustment knob.
- Page 15 To use it, buckle the bo�le holder onto front handrail and then lay it flat. See figure Disconnect the safety key The treadmill cannot be started when the safety key is disconnected. To start running again, reset the safety key firstly. ELITE TRIMLINE A9 TREADMILL...
- Page 16 Medium user (3-5 hours/ week) every six months — Heavy user (more than 5 hours/ week) every three months Treadmill lubricating oil can be purchased from your nearest Elite Fitness store or our Service Department. — In order to maintain and prolong the working life of your treadmill, we...
- Page 17 If the belt is moved to the right, turn the the belt is slipping because it is too loose, use the Allen wrench provided to turn the at a speed of 3km/h and observe whether the ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 18 MAINTENANCE LOG BELT MAINTENANCE DECK SERVICE DATE HOURS DISTANCE COMMENTS 01/06 16.5km Greased frame pivot bolts...
- Page 19 The following conditions are not under warranty range: B) The damage due to incorrect adjustment of the running belt and motor belt; The Treadmill should not be: REPAIR AND MAINTENANCE SERVICE ELITE TRIMLINE A9 TREADMILL ELITE FITLINE 400 TREADMILL ASSEMBLY MANUAL...
- Page 20 WARM-UP EXERCISE — Keep your knees slightly bent and slowly lean forward, You should feel the tension and slight discomfort in your — straight, the other inward and close to the inside of the — Standing with two hands on the wall or tree, one leg —...
- Page 21 TRAINING STAGES Wireless Telemetry Heart Rate strap and watch will give you an accurate Beats Per Minute (BPM) Note: Contact heart rate may provide inaccurate readings and is designed only as a guide ELITE TRIMLINE A9 TREADMILL...
- Page 23 Copyright © 2023 Elite Fitness Elite Fitness, 28 Morrin Road, St Johns, Auckland, New Zealand, @EliteFitnessNZ @EliteFitnessTV...
