Elite Fitness FITLINE200 Assembly Manual

Up to 100kg user capacity
Hide thumbs

Advertisement

Table of Contents

ASSEMBLY MANUAL
RECORD SERIAL NUMBER
Elite Fitline 200 Treadmill

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FITLINE200 and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Fitness FITLINE200

Summary of Contents for Elite Fitness FITLINE200

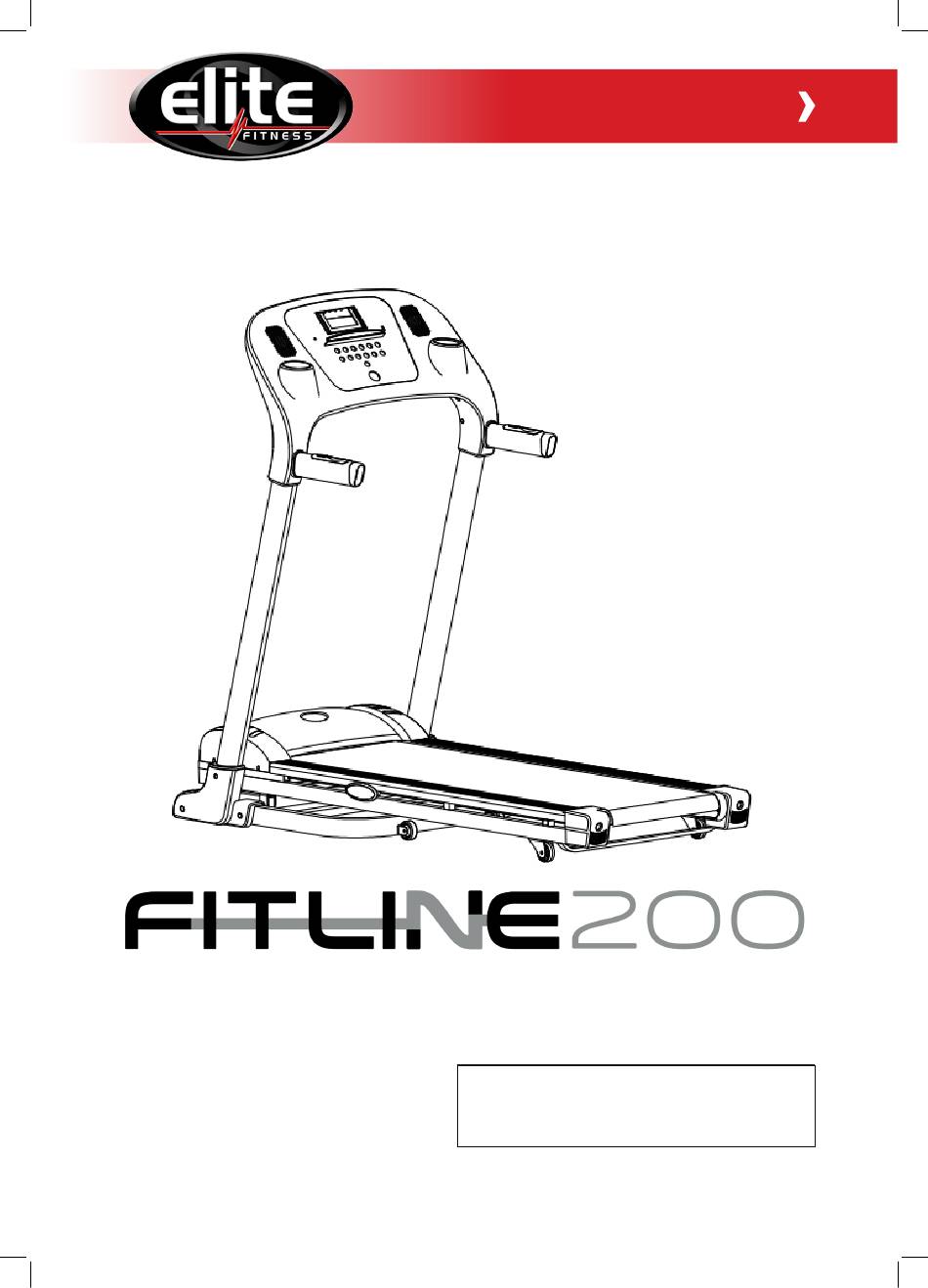

  • Page 1 ASSEMBLY MANUAL RECORD SERIAL NUMBER Elite Fitline 200 Treadmill...

  • Page 2: Table Of Contents

    Thank you for purchasing the Elite Fitline 200 Treadmill. For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of fitness equipment. Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality and biomechanics at the best possible price.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. Product liability and warranty conditions will not be applicable to products being subjected to professional use or products being used in a commercial environment.
  • Page 4 — Not for therapeutic use. WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting.

  • Page 5: Hardware List

    HARDWARE LIST HARDWARE PACKING LIST PART # DESCRIPTION QUANTITY (PCS) M8X15 MM. BOLT (#40) M8X45 MM. BOLT (#38) 3X10 BOLT (#48) Ø M8 CLOCK WASHER (Ø 15XØ 8.4XT0.8) (#39) SILICONE OIL (#71) 4X16MM BOLT (#49) SAFETY KEY ALLEN WRENCH Please Note: Above is a list of the hardware parts required to assemble this treadmill. Please ensure all parts are included befor you begin.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1 Assemble the posts — Attach the Left and right Upright Posts (#2 L&R) to the Main Frame (#1) using 4 x M8x45 Bolts (#38), 2 x M8x15 Bolts (#40) and 6 x Flat Washers (#39). Please Note: do not tighten bolts until they are all place.
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 2 Assemble the console — Rotate the Handlebar Frame (#12) in a clockwise direction so that both Handlebars slot into the Upright Posts (#2 L&R) as shown above. — Secure using 4 x M8x15 Bolts (#40) and 4 x Flat Washers (#39). ELITE FITLINE 200 TREADMILL ASSEMBLY MANUAL...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3 Assemble the Lower Covers — Using 3 screws (#49) secure the Left Lower Cover (#30) to the Left Upright Post (#2) as shown above. — Using 3 screws (#49) secure the Right Lower Cover (#30) to the Right Upright Post (#2) as shown above.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 4 Assemble the Handlebar Covers — Using a 3x10 Screws (#48) and a Screws (#49) secure the Left Handlebar covers (#36) to the left hand side Handlebar. — Using a 3x10 Screws (#48) and a Screws (#49) secure the Right Handlebar covers (#37) to the left hand side Handlebar.
  • Page 10 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite Fitline 200 Treadmill is now complete! Be sure to fully inspect your machine before using it for the first time. Failure to visually check and test and tech the assembly before use can cause damage to the Elite Fitline 200 Treadmill and serious injury to users and bystanders and can also compromise the effectiveness of your exercise program.

  • Page 11: Moving And Storage Instructions

    MOVING AND STORAGE INSTRUCTIONS FOLDING MOVING — Turn off the treadmill, switch off at the main The treadmill can then be moved by tilting power switch and pull out the plug. the treadmill deck towards you onto it’s transportation wheels. —...

  • Page 12: User Instructions

    USER INSTRUCTIONS USER INSTRUCTIONS CONSOLE DISPLAY KEY FUNCTION: — START: Starts the treadmill. STOP (Red square): Stops the treadmill — “P”: Program button, when stopped select a loop (P1,P2,P3, …P12). — “M”: Mode button, in settings select the countdown time, countdown distance and countdown calories circularly.
  • Page 13 USER INSTRUCTIONS SPEED DISPLAY: At the setting state, P1-P12 programs will be displayed. At the running state, speed range will be displayed at 0.8-16km/h COUNTDOWN TIME TRAINING MODE: At the stopping state, press the “MODE” button and enter the setting state, the time window display will flash, default display is 30:00, press the SPEED +/- button amend the setting value.
  • Page 14 USER INSTRUCTIONS — Once you have entered your age and heart rate press “MODE” to select your time duration. This will default to 10:00. Adjust accordingly using the incline buttons. Time can be set between 5--99 minutes. — Press “MODE” to enter the waiting time or press “START” to start your workout. —...
  • Page 15 USER INSTRUCTIONS 4. Quick start (manual mode) 4.1. press power switch ,put the safe key to correct place. 4.2 press “START” button, the system into 3 seconds countdown time, the buzzer sounds ,the time display will show countdown time at the same time .3 seconds later the machine will start to running with 0.8km/h. 4.3 at the running state, press “SPEED+””SPEED-“...
  • Page 16 USER INSTRUCTIONS BUILT-IN PROGRAM: There are 12 build-in programs (P1-P12). To select a program press “PROGRAM”, “SPEED“ will display “P1-P12”, select a program, the “TIME” display will flash, time display will show 30:00. Press “SPEED +/-” to amend running time. Press “START” to commence the selected build-in program.
  • Page 17 USER INSTRUCTIONS than 19% this indicates you are underweight, if FAT data between 25-29% this indicates you are overweight, if the data more than 30% indicates you are obese. Note: This data just for reference and is not for medical data. Gender Male Female 10------99...

  • Page 18: Exercise Program

    EXERCISE PROGRAM 10 PARTS TOTAL 30 MINUTES EACH PROGRAM PROGRAM TIME SPEED INCLINE 1 SPEED INCLINE 1 SPEED INCLINE 1 SPEED INCLINE 2 SPEED INCLINE 1 SPEED INCLINE 2 SPEED INCLINE 4 SPEED INCLINE 3 SPEED INCLINE 3 SPEED INCLINE 4 SPEED INCLINE 4 SPEED...

  • Page 19: Care And Maintenance

    Medium user (3-5 hours/ week) every six months — Heavy user (more than 5 hours/ week) every three months Treadmill lubricating oil can be purchased from your nearest Elite Fitness store or our Service Department. — In order to maintain and prolong the working life of your treadmill, we suggest you power off the treadmill for 10 minutes after every 2 hours of running use.
  • Page 20 CARE AND MAINTENANCE BELT ADJUSTMENT — Place treadmill on a level surface. — Run the treadmill at 6-8km/h. — If the belt has drifted to the right . With the right adjusting bolt clockwise rotation 1/2 turn, then with the left adjusting bolt anticlockwise 1/2 turn AS PICTURE C —...

  • Page 21: Maintenance Log

    MAINTENANCE LOG Prolong the life of your treadmill by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated.

  • Page 22: Warranty Description

    B) Used with an extension cord any longer than 1.5m. C) Lubricated only with manufacturers approved silicone oil, do NOT use: WD40, CRC or any other lubricant. Consult Elite Fitness Service Department for advice or supply of the correct product. REPAIR AND MAINTENANCE SERVICE Please contact our Elite Fitness Service Department at EliteService@elitefitness.co.nz or visit...

  • Page 23: Warm-Up Exercises

    WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —...

  • Page 24: Training Stages

    TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively.

  • Page 25: Parts List

    PARTS LIST PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY main frame handle bar cover R (A/B) upright post (L/R) bolt M8x45 base frame falt washer incline frame bolt M8x15 running deck bolt M10 x 50 running belt screw φ4*16 side rail (L/R) screw φ4*16 console cover up botl M10 x 45...

  • Page 26: Exploded Drawing

    EXPLODED DRAWING...

  • Page 27: Notes

    NOTES ELITE FITLINE 200 TREADMILL ASSEMBLY MANUAL...
  • Page 28 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2016 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
