Summary of Contents for Elite Fitness FITLINE300

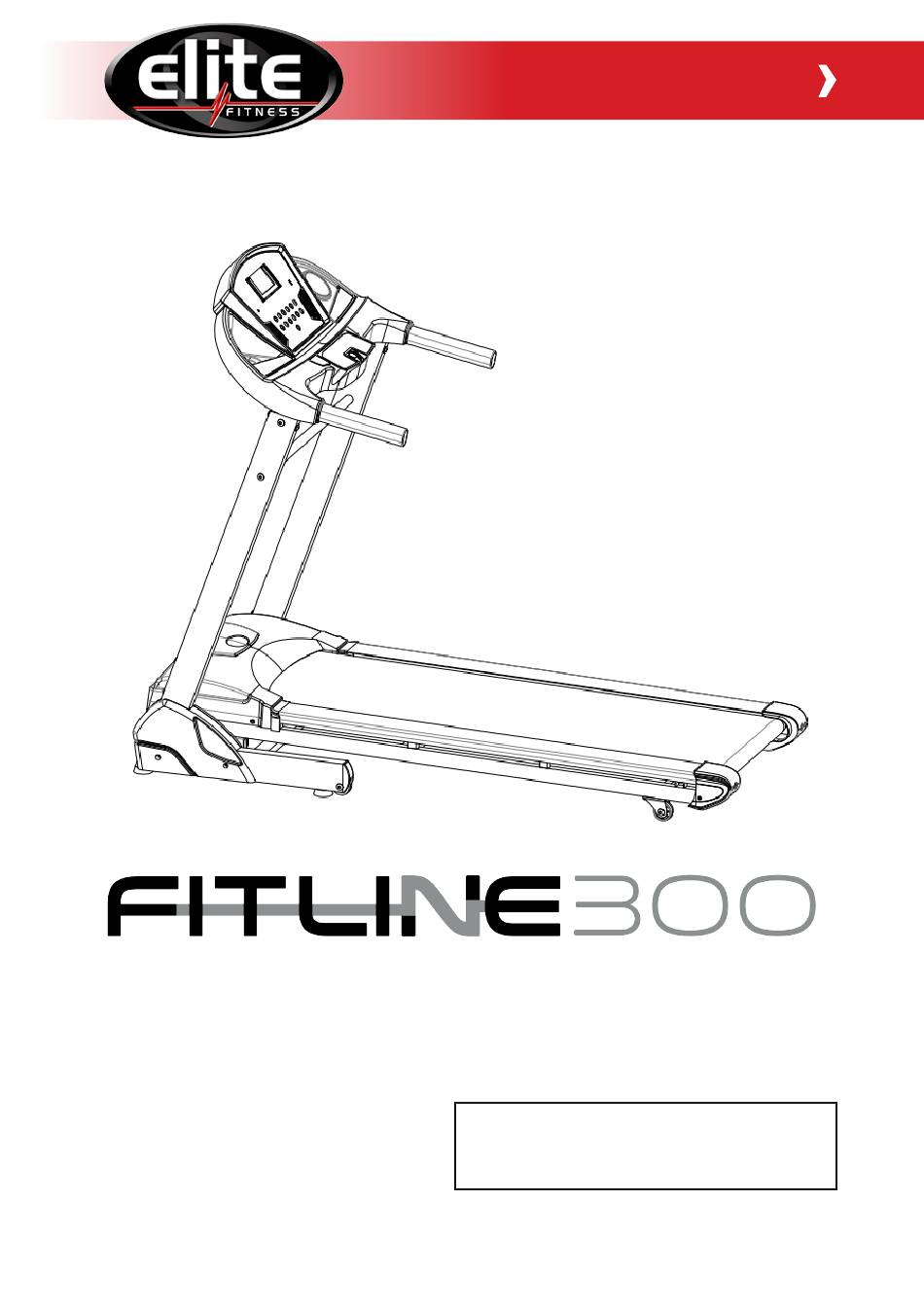

- Page 1 ASSEMBLY MANUAL RECORD SERIAL NUMBER Elite Fitline 300 Treadmill...
-
Page 2: Table Of Contents
Thank you for purchasing the Elite Fitline 300 Treadmill. For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of fitness equipment. Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality and biomechanics at the best possible price. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS The following definition applied to the word “WARNING” when used in this manual: Used to call attention to POTENTIAL hazards that could result in personal injury. READ ALL INSTRUCTIONS BEFORE USING THE MACHINE This product has been designed for home use only. Product liability and warranty conditions will not be applicable to products being subjected to professional use or products being used in a commercial environment. - Page 4 — Not for therapeutic use. WARNING: Before beginning any exercise programme, consult your physician. This is especially important for persons with pre-existing health problems. The seller assumes no responsibility for personal injury or property damage sustained by or through the use of this product. SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular basis, check all screw connections and moving parts on proper fitting.
-
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS HARDWARE PACKING LIST PART # DESCRIPTION QUANTITY (PCS) M8X15 MM. BOLT M8X45 MM. BOLT M8 FLAT WASHER (Ø 15XØ 8.4XT0.8) SILICONE OIL 4.2X16MM SCREW SAFETY KEY ALLEN WRENCH STEP 1 — Remove the Main Frame (11) and Spare Parts from the packing. The treadmill must be placed on a level surface. - Page 6 ASSEMBLY INSTRUCTIONS STEP 2 — Use the screws (7 M8 x 45) and washers (6) to fix the cross bar (3) to the side posts (2L and 2R)
- Page 7 ASSEMBLY INSTRUCTIONS STEP 3 — Connect the cable between the (2-R) post and the Console (1) Caution: Do not pinch the wire between the upright frame and the console assembly. — Using the supplied screws (4 M8 x 15) and washers(6) secure the console to posts (2-L and 2-R) in an upright position.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4 — Fix plastic covers (9-L and 9-R) to posts (2-L and 2-R) using screws (4.2x16mm). — Caution: Ensure all bolts are tightened before operating treadmill.
- Page 9 ASSEMBLY INSTRUCTIONS CONGRATULATIONS Assembly of your Elite Fitline 300 Treadmill is now complete! Be sure to fully inspect your machine before using it for the first time. Failure to visually check and test and tech the assembly before use can cause damage to the Elite Fitline 300 Treadmill and serious injury to users and bystanders and can also compromise the effectiveness of your exercise program.
-
Page 10: Moving And Storage Instructions
MOVING AND STORAGE INSTRUCTIONS FOLDING MOVING — Turn off the treadmill, switch off at the main The treadmill can then be moved by tilting power switch and pull out the plug. the treadmill deck towards you onto it’s transportation wheels. —... -
Page 11: User Instructions
USER INSTRUCTIONS USER INSTRUCTIONS 1. CONSOLE DISPLAY 2. SCREEN DISPLAY Quick Start or Program Start Start Stop To stop the treadmill while exercising and reset the computer Displays exercise time, positive timing from 0:00-99:59. Time Display Displays the running distance, count forward from 0.00-99.9. Displays heart rate when using hand pulse system or wireless chest belt receiver. - Page 12 USER INSTRUCTIONS KEY FUNCTION: — START (Green triangle): Starts the treadmill. STOP (Red square): Stops the treadmill — “P”: Program button, when stopped select a loop (P1,P2,P3, …P12). — “M”: Mode button, in settings select the countdown time, countdown distance and countdown calories circularly.
- Page 13 Please Note: - Contact Heart rate sensors are for reference only and may provide inaccurate readings as they are not medically certified devices. If you require accurate heart rate readings for the purpose of training or a medical condition, please consult your Elite Fitness Sales Professional for further advice...
- Page 14 EXERCISE PROGRAM 10 PARTS TOTAL 30 MINUTES EACH PROGRAM PROGRAM TIME SPEED INCLINE 1 SPEED INCLINE 1 SPEED INCLINE 1 SPEED INCLINE 2 SPEED INCLINE 1 SPEED INCLINE 2 SPEED INCLINE 4 SPEED INCLINE 3 SPEED INCLINE 3 SPEED INCLINE 4 SPEED INCLINE 4 SPEED...
-
Page 15: Care And Maintenance
Medium user (3-5 hours/ week) every six months — Heavy user (more than 5 hours/ week) every three months Treadmill lubricating oil can be purchased from your nearest Elite Fitness store or our Service Department. — In order to maintain and prolong the working life of your treadmill, we suggest you power off the treadmill for 10 minutes after every 2 hours of running use. - Page 16 CARE AND MAINTENANCE BELT ADJUSTMENT — Place treadmill on a level surface. — Run the treadmill at 6-8km/h. — If the belt has drifted to the right . With the right adjusting bolt clockwise rotation 1/2 turn, then with the left adjusting bolt anticlockwise 1/2 turn AS PICTURE C —...
-
Page 17: Maintenance Log
MAINTENANCE LOG Prolong the life of your treadmill by performing periodic maintenance checks. Not only does this ensure your machine is in full working order, but it will save you service costs in the long run. Every time you perform maintenance, record the date and if you can, the distance and hours operated. -
Page 18: Warranty Description
B) Used with an extension cord any longer than 1.5m. C) Lubricated only with manufacturers approved silicone oil, do NOT use: WD40, CRC or any other lubricant. Consult Elite Fitness Service Department for advice or supply of the correct product. REPAIR AND MAINTENANCE SERVICE Please contact our Elite Fitness Service Department at EliteService@elitefitness.co.nz or visit... -
Page 19: Warm-Up Exercises
WARM-UP EXERCISE Warm up exercise is important in preparing the muscles for activity whilst minimising the risk of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before stopping and performing some simple stretches. (As shown in the pictures below) —... -
Page 20: Training Stages
TRAINING STAGES Cardiovascular training plays an important part in maintaining a healthy heart and lung function, so it’s no surprise we should be paying attention to how quickly our heart beats during exercise. The chart above outlines a range of heart rate training zones determined by the individual’s age and workout goals to ensure you train safely and effectively. -
Page 21: Parts
PARTS We recommend 2 people assist in assembling this unit. Place all parts of the treadmill in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Before you start installation, inspect and prepare all parts and screws featured in this manual. -
Page 22: Parts List
PARTS LIST PART PART DESCRIPTION Q’TY DESCRIPTION Q’TY Whole console cable fixer upright post(L.R) switch Middle barM8x 15 fuse set bolt φ8.5*φ12*T1.8 bolt M8*25 spring washer φ8.5*φ17*T1.5 6 deck frame flat washer M8*4515 cushion bolt incline frame adjustable foot incline motor decorative cover(L/R)φ4.2*16 real wheel screw... -
Page 23: Exploded Drawing
EXPLODED DRAWING ELITE FITLINE 300 TREADMILL ASSEMBLY MANUAL... - Page 24 For more information about our Elite exercise equipment or other brands that we stock for your home, visit www.elitefitness.co.nz Copyright © 2015 Elite Fitness Elite Fitness, 11 George Bourke Drive, Mt Wellington, Auckland, New Zealand, 0800 243 834, www.elitefitness.co.nz Keep up to date with the latest products, competitions and equipment, follow us on our social media sites.
