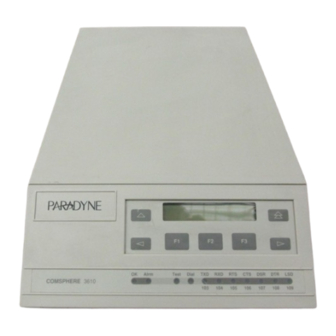

Paradyne COMSPHERE 3610 Quick Reference Manual

Paradyne COMSPHERE 3610 Quick Reference Manual

Data service units time division multiplexer, multichannel multipoint, and digital bridge options
Hide thumbs Also See for COMSPHERE 3610:

Advertisement

COMSPHERE
3600 SERIES
DATA SERVICE UNITS
TIME DIVISION MULTIPLEXER,
MULTICHANNEL MULTIPOINT,
AND DIGITAL BRIDGE OPTIONS
QUICK REFERENCE
Document No. 3610-A2-GL12-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMSPHERE 3610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paradyne COMSPHERE 3610

  • Page 1 COMSPHERE 3600 SERIES DATA SERVICE UNITS TIME DIVISION MULTIPLEXER, MULTICHANNEL MULTIPOINT, AND DIGITAL BRIDGE OPTIONS QUICK REFERENCE Document No. 3610-A2-GL12-00...
  • Page 2: Document Feedback

    Copyright E 1998 Paradyne Corporation. All rights reserved. Printed in U.S.A. Notice This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Ave.
  • Page 3: Things To Know Before Installation

    Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396) Outside the U.S.A., call 1-727-530-8623 Things to Know Before Installation The COMSPHERE Model 3610 DSU with the TDM or MCMP option is delivered with default hardware settings, factory default configuration option settings, and factory-installed software.
  • Page 4: Installing The Dsu

    Installing the DSU The Model 3610 DSU is designed for desktop operation. Place the DSU in the planned location. Allow 1 to 2 feet of clearance for cable connections, space for the ventilation slots on the sides, and clearance at the rear for the cable connections.
  • Page 5: Opening The Dsu

    Opening the DSU NOTE: If the unit is already installed, disconnect all cables, including the power source, before opening the DSU. Opening a Model 3610 DSU without MUX Follow this procedure to separate the DSU cover from the base. " Procedure 1.
  • Page 6 Opening a Model 3610 DSU with MUX Follow this procedure to separate the MUX DSU cover from the base and to separate the DSU circuit card from the MUX circuit card. " Procedure 1. Use a small flat-blade screwdriver to release the four snap tabs holding the base in place.
  • Page 7 Keypad Flat Cable Flat Cable Screw Circuit Card Snap Tabs Expanded Base Assembling and Disassembling a TDM or MCMP DSU TDM or MCMP Flat Cable Screw Screw Snap Tabs 98-13846d...
  • Page 8 Changing the EIA-232 or V.35 Interface Follow this section to change a TDM/DSD or MCMP/DSD model from: EIA-232 interface to V.35 interface, or V.35 interface to EIA-232 interface Separating the DSU from the TDM or MCMP Follow this procedure to separate the DSU circuit card from the TDM or MCMP. "...
  • Page 9 Model 3610 DSU An MCMP/TDM circuit card assembly (CCA) can be added to an installed DSU. The MUX CCA must be physically and electrically connected to the DSU. The Model 3610 is installed into a larger base. The MCMP/TDM Flex model is designed so that each port can be set individually to either EIA-232 or V.35 by using either the front panel, an async terminal, or an NMS.
  • Page 10 3. Connect the 40-pin TDM/MCMP flat cable to the new MUX CCA. Fold the flat cable out over the side of the new expanded base. 4. Proceed to Reassembling the DSU . Reassembling the DSU " Procedure 1. Secure the DSU to the expanded base using the two #4 thread-cutting screws at the front corners, and the #4 screw with the captive lock-washer at the back corner.
  • Page 11: Powering Up The Dsu

    PORT 6 CAUTION: Only use the power transformer designed for the Model 3610 DSU. Using other transformers may result in personal injury or damage to the equipment. 2. Connect the 3-prong plug at the other end of the cable to an ac outlet.
  • Page 12: Dte Connections

    DTE Connections Make the DTE connections as described in the User’s Guide. In a TDM or MCMP application, all ports default to EIA-232 port interface operation. For MCMP/TDM Flex, Ports 1 through 6 can be set individually to EIA-232 or V.35 by using the MUX port configuration options.
  • Page 13 5. Select Activ (F1). The Edit/Save screen appears. Edit/Save: SAVE Bkup LPDA 6. Press the key to scroll the MUX option set into view. 7. Press the function key directly below MUX. The Change MUX Opts screen appears. Change MUX Opts: Copy Setup Prt2...
  • Page 14: Network Verification Testing

    (ID from the Status branch). NOTE: The Model 3610 is delivered with its network address set to 254. 2. Perform a Digital Test on the DDS circuit to ensure that the network is functioning (DT from the Test branch).
  • Page 15: Menu Structure

    Menu Structure A 3600 Series DSU comes factory-loaded with default configuration settings: Model 3610 DSU is configured as a tributary (FacT) Model 3611 DSU is configured as a control (FacC) DSU with MCMP/TDM comes configured as a TDM Menus and Modes of Operation A DSU without TDM or MCMP operates in Basic mode.
  • Page 16: Status Branch

    Status Branch The Status (Stat) branch includes reports on the health and status of the DSU, TDM, MCMP, and DBM. Local Bckup Stat DTE CircQ Port Select Devic Expan Subn Backup Branch The Backup (Bckup) branch controls operation of digital bridging when a DSU with TDM or MCMP has MUX Funct set to CBrdg or EBrdg.
  • Page 17: Test Branch

    Test Branch The Test branch provides extensive testing capabilities for the DSU, DDS circuit, DBM, and backup circuit. Local Stat Bckup Abort Devic Lpbk Subn Selective Port Port Select Select Configuration Branch The Configuration (Confg) branch allows you to configure or customize the DSU and its options.
  • Page 18 TOP-LEVEL MENU Local Remot Address Stat Bckup Test Confg Opts PList Dir Phone Addr Displ Chang Save Activ Skip Delet Chang Load Activ Remt Usr1 Usr2 Address Activ Usr1 Usr2 Usr3 SAVE Diag Bkup Activ Remt Usr1 Usr2 Usr3 Copy Setup Prt1 Prt2 Prt3 Prt4 Prt5 Prt6 Address TDM MCMP CBrdg EBrdg None...
  • Page 19 Configuration Option Tables In the tables that follow, FacT (Factory Tributary) defaults are shown in boldface. If different from the FacT defaults, FacC (Factory Control) defaults are shown in italics . Key to symbols: Configuration options that do not appear when Full mode is disabled using Menu from the Configuration branch.
  • Page 20 Diagnostic General Configuration Options Cntrl , Trib, G2Trb Position LinkConfg Pt-Pt, M-Pt A 1, 2, 10 Resp Period A 0:10 TribTimOut (5 sec to 10 min) Diag Conn CC, DC A 0s, 1s, 2s, 5s, 10s, 20s, 50s Link Delay A 0s, 1s, 2s, 5s, 10s, 20s, 50s Network Delay A 0s, 1s...
  • Page 21: Dbm Configuration Options

    ChgMd Configuration Options Protocol Mode DPII, ADp DBM Configuration Options Configuration Options Rate(Kbps) } 56, 28.8, 24.0, 19.2, 16.8, 14.4, 12.0, 9.6, 7.2, 4.8, 2.4 LL }} TxClkSource Int , RXC, DSU, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6 CarrLossDisc Yes, No Auto Retrain Yes, No Single Rate...
  • Page 22 Backup Configuration Options Auto Bckup Enab, Disab Backup Dir 1–10 FAOnCMI Enab, Disab AutoRestor Enab, Disab NtwkTimOut 1:00, 0:20 (1 sec to 30 min) RestorTimOut 5 min (1 min to 60 min) TriesTimeOut 15 min (1 min to 60 min) MultiCall Enab, Disab DBM PrtSp...
  • Page 23 Prt n Configuration Options Async Sync Enab, Disab Async Rate =Sync, 1800, 1200, 600, 300, 150 AsyncBit/Char 6, 7, 8, 9, 10 Stop Bits 1, 2 RTS Cntrl FrcOn, DTE A Const, Cntrl TxCarrSel A Const, Cntrl, Mark RxCarrSel PCC Buffer Enab, Disab A Enab, Disab Elast Stor...
  • Page 24 Configuration Options for TDM Mode To change a MUX circuit card from MCMP mode to TDM mode, change the following settings from their factory defaults: Configuration Branch Configuration Option MUX Setup MUX Funct Rate(Kbps) Diag Gen Link Config RTS Cntrl DBM (with ISDN DBM Rate(Kbps) installed)
  • Page 25 Prt n Configuration Options Async Sync Enab, Disab Async Rate =Sync, 1800, 1200, 600, 300, 150 AsyncBit/Char 6, 7, 8, 9, 10 Stop Bits 1, 2 Overspeed 1.25, 2.50 RTS Cntrl FrcOn, DTE A Const, Cntrl TxCarrSel A Const, Cntrl, Mark RxCarrSel PCC Buffer Enab, Disab...
  • Page 26 Configuration Options for Bridge Mode MUX Setup Configuration Options MUX Funct: TDM, MCMP, CBrdg, EBrdg, None (CBrdg or EBrdg) =DSU z, 64, 56, 28.8, 24.0, 19.2, 16.8, 14.4, 12.0, 9.6, 4.8, 2.4 Bridge Rate Brdg Timing }} Int, Auto, Prt1, Prt2, Prt3, Prt4, Prt5, Prt6 Share DevA: Enab Lowest Port #...
  • Page 27: Control Branch

    DBM’s, and to display/change the status of the general purpose external DTE leads. Local Stat Bckup TxCtl Devic Enab Disab Remote Mode Remote mode is not available for a multipoint tributary. Refer to Document No. 3610-A2-GB46 for additional information. TOP-LEVEL MENU Remot Msgs Address Test Confg Ctrl LEDs ExtL Reset...
