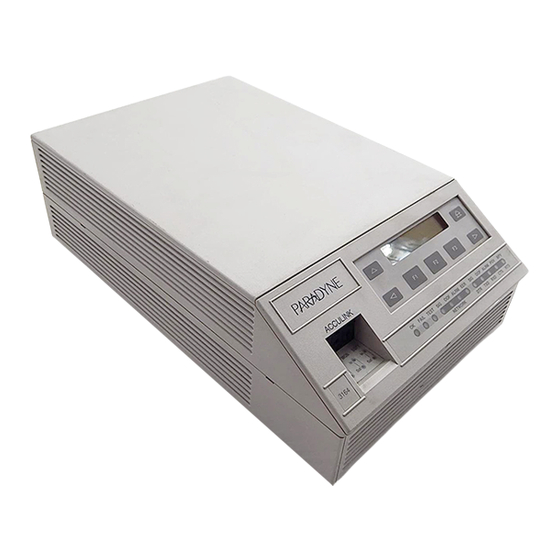

ACCULINK 3164
DSU/CSU
QUICK REFERENCE
Document No. 3164-A2-GL10-00

Advertisement

Table of Contents
loading

Related Manuals for Paradyne 3164

Summary of Contents for Paradyne 3164

  • Page 1 ACCULINK 3164 DSU/CSU QUICK REFERENCE Document No. 3164-A2-GL10-00...

  • Page 2: Warranty, Sales, Service, And Training Information

    Copyright 2000 Paradyne Corporation. All rights reserved. Printed in U.S.A. Notice This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Ave.

  • Page 3: Quick Reference

    Complete documentation for this product is available at www.paradyne.com. Select Library Technical Manuals Select the following document: 3160-A2-GB24 ACCULINK DSU/CSU, Models 3160-A4, 3161, 3164-A2, and 3165-A4 Operator’s Guide To request a paper copy of a Paradyne document: Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396) Outside the U.S.A., call 1-727-530-8623...

  • Page 4: Quick Start Procedure

    24. The following procedure is for experienced DSU/CSU users who are familiar with the 3164 DSU/CSU installation process and have no special requirements for their application. See the ACCULINK DSU/CSU Operator’s Guide for more information. 1. Attach the power cord to the rear of the DSU/CSU and the other end to a grounded 115 Vac power outlet.
  • Page 5 NETWORK T1 Network 3164 DSU/CSU Power SNMP Manager Modem SNMP Manager 3164 DSU/CSU Network Port COM Port COM PORT MODEM POWER AUX PORT CLASS 2 CAUTION: AUX PORT OR COM PORT MUST NOT BE CONNECTED TO PSTN OR T1 NETWORK...

  • Page 6: Configuration Procedures

    Configuration Procedures For detailed configuration procedures see Chapter 4, Configuration , and Appendix C, Configuration Options , of the Operator’s Guide . Displaying/Editing Configuration Options To display/edit configuration options: 1. From the top-level menu screen (which you can access by pressing the select Cnfig.

  • Page 7: Allocating Data Ports

    Configuring the Data Ports Network DS0s must be mapped to the Data Ports for data. To configure the DataPort: 1. From the top-level menu screen, select Cnfig. 2. Select Activ. 3. Select Edit. 4. Select Port. 5. Press the Function key under the port to be configured. 6.

  • Page 8: Block Or Acami Assignment Method

    Block or ACAMI Assignment Method The Assign By configuration option screen appears after you select a port. To assign by the block or ACAMI method: 1. Press F2 for Block or F3 for ACAMI. 2. Press F1 (Next) to display the next configuration option (Port Rate). 3.

  • Page 9: Allocating Ds0 Channels From The Dte Drop/Insert Interface To The Network Interface

    Allocating DS0 Channels from the DTE Drop/Insert Interface to the Network Interface By using the configuration options, you can allocate DS0 channels from the DTE Drop/Insert (DSX-1) interface to the network interface and specify which DS0 channels carry Robbed Bit Signaling (RBS) information for voice channels. To allocate DS0 channels from the DTE Drop/Insert (DSX-1) interface to the network interface: 1.

  • Page 10: Configuration Options

    Configuration Options Configuration options are accessed from the Cnfig branch of the front panel menu. DSU ESF Stat Test Cnfig Ctrl...
  • Page 11 Factory default configuration options are shown in boldface type in the following tables. Table 1. DTE Interface Configuration Options Option Factory 1 DTE Port: DTE Port: DTE Framing: DTE Framing: DTE Coding: DTE Coding: Equal: Equal: (DTE Line (DTE Line Equalizer) Extrn DLB: (External DTE...
  • Page 12 Table 2. Port Configuration Options (1 of 2) Option Factory 1 Port Type: Port Type: Base Rate: Base Rate: Net DCLB: Net DCLB: Port LB: Port LB: All Ones: All Ones: Rcv Yellow: Rcv Yellow: (Received Yellow) Tx Clock: Tx Clock: InvertTxC: (Invert Tx Clock) (Invert Tx Clock)
  • Page 13 Table 2. Port Configuration Options (2 of 2) Option Factory 1 EDL: EDL: Err Rate: (Excessive Error (Excessive Error Rate) a e) Near-end: Near end: Far end: Far-end: Mgmt Link: Mgmt Link: Factory 2 Enab Enab Disab Disab 10E–4 10E–4 10E–5 10E–5 10E–6...
  • Page 14 Table 3. Network Interface Configuration Options Option Factory 1 NET Framing: NET Framing: NET Coding: NET Coding: LBO: LBO: ANSI PRM: ANSI PRM: Mgmt Link: Mgmt Link: NET LLB: NET LLB: NET PLB: NET PLB: BitStuff: BitStuff: Circuit Ident: Circuit Ident: Factory 2 B8ZS B8ZS...
  • Page 15 Table 4. DTE Channel Configuration Options Line 1 Displays: Line 2 Displays: N1 N2 N3 ... N24: N1 N2 N3 ... N24: D1 D2 D3 ... D24: Meaning — Unassigned Channel D1, D2 ... D24 assigned to this DTE channel Prt1 Channel Prt2...
  • Page 16 Table 5. Data Port Channel Configuration Options (1 of 2) Option Factory 1 Assign To: Assign To: Assign By: Assign By: Port Rate: Factory 2 Prt n Prt n Block Block ACAMI ACAMI Chan Chan 64 (56) 64 (56) 128 (112) 128 (112) 192 (168) 192 (168)
  • Page 17 Table 5. Data Port Channel Configuration Options (2 of 2) Option Factory 1 Start At: Line 1 Displays: Line 2 Displays: N1 N2 N3 ... N24: (If assigned to NET) (If assigned to NET) D1 D2 D3 ... D24: D1, D2 ... D24 (If assigned to DTE) N1, N2 ...
  • Page 18 Table 6. General Configuration Options Option Factory 1 Gen Yellow: Gen Yellow: (Generate Yellow) Clock Src: Clock Src: Clock Rate: Clock Rate: Tst Timeout: Tst Timeout: Tst Duration: Tst Duration: Factory 2 Enab Enab Disab Disab Prt1 Prt1 2048 2048 1544 1544 Enab...
  • Page 19 Table 7. User Configuration Options (1 of 3) Option Factory 1 Self-Test: Self-Test: FP Access: FP Access: FP Pass: FP Pass: Dial-In: Dial-In: Password: Password: Com Use: Com Use: Com Type: Com Type: Com Clk: Com Clk: Com Rate: Com Rate: (Communication Port (Communication Port Rate)
  • Page 20 Table 7. User Configuration Options (2 of 3) Option Factory 1 CStop Bits: CStop Bits: (Communication Port (Communication Port Stop Bits) Bit ) Ignore DTR: Ignore DTR: CmInActTm: (COM Port Inactivity (COM Port Inactivity Timeout) CmDiscTm: (COM Port (COM Port Disconnect Time) Modem Use: Modem Type:...
  • Page 21 Table 7. User Configuration Options (3 of 3) Option Factory 1 MoDiscTm: (Modem Port (Modem Port Disconnect Time) Aux Use: Aux Rate: Aux Rate: TnSession: TnSession: (Telnet Session) TnPaswd: TnPaswd: (Telnet Password) TnInActTm: (Telnet Inactivity (Telnet Inactivity Timeout) TnDiscTm: (Telnet Disconnect (Telnet Disconnect Time) Factory 2...
  • Page 22 Table 8. Alarm Configuration Options Option Factory 1 Alrm Msg: SNMP Trap: SNMP Trap: TrapDisc: TrapDisc: DialOut: DialOut: Call Retry: Call Retry: Dial Delay: AltDialDir: Err Rate: (Excessive Error (Excessive Error Rate) Rate) Factory 2 Disab Disab Modem Modem Both Both Enab Enab...
  • Page 23 Table 9. General Management Configuration Options (1 of 2) Option Factory 1 SNMP Mgt: SNMP Mgt: NMS Valid: NMS Valid: Num Sec Mgrs: Num Sec Mgrs: NMS n IP Adr: NMS n IP Adr: NMS n Acs: NMS n Acs: System Name: System Name: System Location:...
  • Page 24 Table 9. General Management Configuration Options (2 of 2) Option Factory 1 Com NetMask: Com NetMask: Com Link: Com Link: Modem IP Adr: Modem IP Adr: Mdm NetMask: Mdm NetMask: Alt Mdm IP Adr: Alt Mdm IP Adr: Alt Mdm NetMask: Alt Mdm NetMask: Modem Link: Modem Link:...
  • Page 25 Table 10. Management Trap Configuration Options Option Factory 1 Num Trap Mgrs: Trap n IP Adr: Trap n IP Adr: Trap n Dst: Trap n Dst: Gen Trap: Gen Trap: Entp Trap: Entp Trap: Link Trap: Link Trap: Trap I/F: Trap I/F: Factory 2 2–6...

  • Page 26: Important Safety Instructions

    Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. This product is intended to be used with a 3-wire grounding type plug – a plug which has a grounding pin. This is a safety feature. Equipment grounding is vital to ensure safe operation.
  • Page 27 11. In addition, if the equipment is to be used with telecommunications circuits, take the following precautions: — Never install telephone wiring during a lightning storm. — Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. —...

  • Page 28: Government Requirements And Equipment Return

    Telephone Network using a USOC Type RJ11C jack. The Facility Interface Code 02LS2 along with the RJ11C jack should be specified to the telephone company when ordering a dial line for the modem. 3164 DSU/CSU Facility Interface Codes Code 04DU9-BN...
  • Page 29 4. If the DSU/CSU causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

  • Page 30: Notice To Users Of The Canadian Telephone Network

    Notice to Users of the Canadian Telephone Network The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.
