Summary of Contents for PowerPoint P9818SKHGIFD

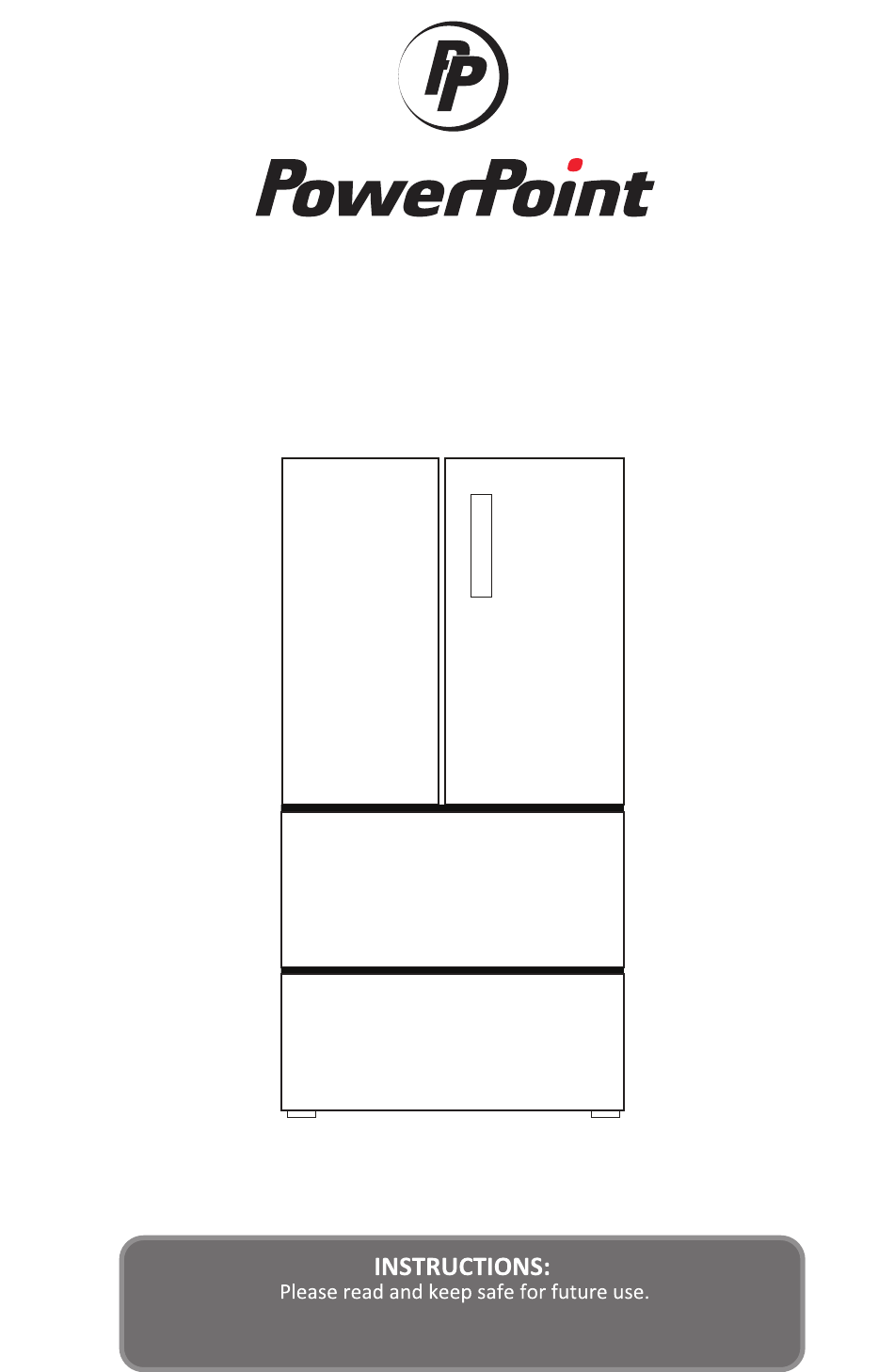

- Page 1 FRENCH DOOR 2 DRAWER with Premium Steel interior trim & wine rack P9818SKHGIFD Supplied by Shomar Ltd Dublin Ireland. To contact us see www.powerpointappliances.ie...
-
Page 2: Table Of Contents
Table of Contents Warning Warning------------------------------------------------------- 1 Safety and warning information Basic safety symbol----------------------------------------- 5 Appliance connection -------------------------------------- 5 LED light ------------------------------------------------------ 5 Safety and warning information--------------------------- 5 Product Introduction Product features -------------------------------------------- 8 Product components --------------------------------------- 9 Installation dimension-------------------------------------- 10 Installation Transportation----------------------------------------------- 11 Where to install your unit ---------------------------------- 11... -
Page 3: Warning
Warning CAUTION This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 4 Warning replaced by the manufacturer,its service agent or similarly qualified person to avoid any hazards. 3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. 4. WARNING: Do not use mechanical devices or othermeans to accelerate the defrosting process, other than those recommended by the manufacturer.
- Page 5 Warning 3. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. 14. WARNING: To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause asignificant increase of the temperature in the compartments of the appliance.
- Page 6 Warning installation or cleaning,disconnect the refrigerator from the power source and reset the temperature controls to the desired setting(s). When you are finished, reconnect the refrigerator to the electrical source and reset the temperature controls to the desired setting. 16. This appliance is intended for domestic use only. This marking indicates that this product should not be disposed with other household wastes throughout the EU.
-
Page 7: Safety And Warning Information
Safety and Warning Information Basic safety symbol This guide contains many important safety messages. Always read and obey all safety messages. △ This is the safety alert symbol.It alerts you to warnings that will inform you of any potential hazards that could hurt or kill you. These messages will also help protect your unit from damage. - Page 8 Safety and Warning Information Safety and warning information If you believe there is refrigerant leaking, do not touch the unit or the power outlet, ventilate the room and if possible turn your unit off using the circuit breaker. Call the manufacturer immediately. Refrigerant will cause serious injury when coming into contact with the skin or eyes.
- Page 9 Safety and Warning Information Safety and warning information Do not touch food or containers in the freezer with wet hands.It may cause frostbite. Do not spray water at the outside or the inside of the fridger do not clean it with benzene or thinner.
-
Page 10: Product Introduction
Product Introduction Product features This unit container super freeze, energy-savings, noise reduction, optimal refrigeration are preset options for your unit. Precise temperature control Microcomputer control systems are able to separately control both the fridge and freezer more accurately. Automatic defrosting This unit is equipped with a program that controls the frequency and duration of defrosting your freezer. -
Page 11: Product Components
Product Introduction Product components The layout of items below are subject to change without notice, and may not look or come setup as seen in the picture below. The appearance and specifications of the actual product may differ depending on the model. -
Page 12: Installation Dimension
Product Introduction Installation dimension Select a good location to place your appliance where it is flat and easy to use.Avoid placing the unit near heat sources,direct sunlight or moisture. 19.8mm 1774 1830 1521 1076 The above figures are a guideline for installation purposes. The actual dimensions of the unit may vary slightly. -
Page 13: Installation
Installation Transportation Do not carry the refrigerator horizontally or by laying it down. Do not carry the refrigerator by holding the door or handle; the refrigerator shall be carried by lifting the bottom. This unit should never be moved alone, two people are required to safely lift or move your unit. -
Page 14: Operation
Operation Before Use This refrigerating appliance is not intended to be used as a built-in appliance. Remove all of the packaging, including the foam backing at the bottom of the unit and the tape that fixes the shelves and door bins inside. Place the refrigerator to a proper position, and adjust the feet to level. -
Page 15: Control Panel
Operation Operation Control panel Feature selection Each press of the “Feature” button will cycle through the operating modes. Holiday Mode - the refrigerator will run at 8°c while the freezer will operate at -15°c. Super freezer mode – When the super freezer mode is selected, the compressor will operate continuously to freeze foods faster, and keep them fresh.The super freezer mode will automatically turn off either after 24h of operation, or when the freezer reaches -28°C.The super freezer icon will turn off, and the freezer will continue to operate at the normal set... -
Page 16: Freezer Chamber Settings
Operation Freezer compartment settings The default temperature of the freezer is -18°C. To change the temperature press the “Freezer” button to cycle through the set temperatures. Set Temperature CAUTION: Do not put fresh foods directly on the frozen foods. Refrigerator compartment settings The default temperature of the refrigerator is 5°C. -
Page 17: Refrigerator Chamber
Operation Refrigerator chamber The fridge compartment should mainly be used to store food that will be consumed in a short time. 1 Door racks 2 Glass shelves 3 Refrigerator drawers Freezing chamber The freezing chamber is used to freeze foods,store deeply frozen foods and make ice cubes.lt can preserve foods for a long time. -
Page 18: Instructions For Storing Foods
Operation Instructions for storing foods CAUTION -When storing freezing foods, put them to the inside of freezing chamber, other than the bottle rack. -Do not put bottled or canned foods into the freezing chamber to prevent frost cracking. Before putting hot foods into the refrigerator, cool them to room temperature first; otherwise, they will increase power consumption. - Page 19 Operation Storage of foods Butter can become tainted by strong smelling foods so it is best stored in a sealed container. Eggs should be stored in the fridge compartment. Red meat Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil. Store cooked and raw meat on separate plates.
- Page 20 Operation Storage of foods Note: Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes. Freezing and storing food in the freezer compartment ·...
-
Page 21: Maintenance
Maintenance Defrosting This production has automatic defrosting function, without manual operation. Cleaning Precautions for internal and external cleaning of refrigerator: - Before cleaning, always turn off the power switch, disconnect the power plug. - During cleaning, make sure that no water will enter the switch, control panel, doorlamp and top control box. -
Page 22: Normal Phenomena
Maintenance Normal phenomena Button failure Please check the control board whether the fridge under lock mode.When under lock mode, all buttons can't work. Low voltage,the compressor can't start You should purchase pressurizer of more than 1000W when the area of the appliance installation,that's better to protect your fridge. -
Page 23: Troubleshooting
Maintenance Troubleshooting Climate class: - Extended temperate(SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C'; - Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'; - Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';...
