- Page 1 Fridge with 4* Freezer P4504MDW INSTRUCTIONS: Please read and keep safe for future use. You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
- Page 2 Installation and User Instructions Features………………………………………………………………………………………………….. Transportation instructions................. Introduction & safety warnings..............Electrical Requirements …………………............Installation ………………………………..............Food Storage …………………………………………………………………….…………………….. Defrosting....................Arrangement of Food………………………………………………………….…………………… Temperature Control ……………………………………………………………………………….. Cleaning and Care………………................ Replacing Bulb/Top Tips …................. Problem solving................... Technical data..................... Health and Safety..................Warranty Information..................

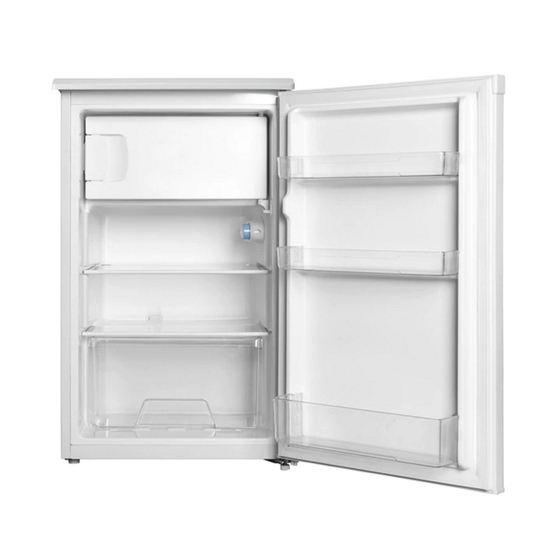

- Page 3 Features You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
- Page 4 Transportation of your Appliance When transporting, never tilt appliance to more than 45 degrees The appliance should be transported only in a vertical upright position The packaging as supplied must be intact during transportation If during the course of transport the appliance has to be transported ...
-
Page 5: Before First Use
Before First Use IMPORTANT: Do NOT connect your appliance to the electricity supply until All packing and transit protectors have been removed. Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally Wipe the inside of the Fridge/Freezer with a weak solution of ... -
Page 6: Electrical Requirements
WARNING: Keep ventilation openings in the appliance enclosure or In the built-in structure clear of obstruction. IMPORTANT: Care must be taken while cleaning / carrying the appliance to Avoid touching the bottom of the condenser metal wires at The back of the appliance as you may injure your fingers and hands. -
Page 7: Installation Instructions
Installation Instructions 1. Install the refrigerator on a flat surface in order to prevent vibration and noise. If required adjust the levelling feet at the front by turning them. 2. Choose a dry well-ventilated place. 3. Minimum space in the room where the refrigerator is being installed is 10 cubic metres. -
Page 8: Food Storage
Food Storage How to Use the Refrigerator Compartment: Cooked /fresh foods may be stored in your refrigerator. Hot foods must first be allowed to reach room temperature before storage Eggs and Bottle’s should be stored on the shelves provided in the door ... - Page 9 Quick freezing allows moisture inside food stuffs to be retained and thus the original freshness and nutrition constituent can be retained. Fresh meat and fish to be kept for a long time must use quick freezing: Turn the temperature control knob to 6. Add food to be frozen quickly.
-
Page 10: Defrosting The Refrigerator
Defrosting DEFROSTING THE REFRIGERATOR The fridge compartment defrosts automatically. The defrosting water runs To the drain tube via a collection container at the back of the appliance. During defrosting water droplets may form at the back of the fridge compartment where the concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. - Page 11 2. Turn the Fridge/Freezer off at the mains supply. 3. Leave the doors open. 4. Scrape away as much frost build-up as possible using the plastic scraper. To accelerate the thawing process place bowls of hot water inside the Fridge/Freezer cabinet. As the solid frost loosens, prize it away with the plastic scraper and remove.
-
Page 12: Temperature Control
6. To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not allow to come into contact with cooked food to avoid contamination. For safety, only store raw meat for two to three days. 7. Keep the food packed, wrapped or covered. Allow hot food and beverages to cool before placing them in the fridge. -
Page 13: Cleaning And Care
temperature of the freezer compartment should be should be between -18°C and -25°C. Cleaning and Care We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning Never use any sharp abrasive instrument, soap, household cleaner, ... -
Page 14: Replacing The Light Bulb
Leave the doors open to prevent any unpleasant smells from building up while the refrigerator is not used Replacing the Light Bulb The fridge light is a energy efficient, long life LEDs. Therefore, they should not need replacing throughout the life of the product. In the unlikely event it does fail then it will need to be replaced by a qualified engineer. -
Page 15: Energy Saving Tips
Don't consume food which has been stored for an excessive time in the fridge Don't leave the door open for long periods as this will make the appliance more costly to run and cause excessive ice formation Don't put hot food into the appliance ... -
Page 16: Problem Solving
Problem Solving Check the following: That the plug is inserted properly in the socket and that the power supply is on That the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off That the temperature control has been set correctly ... - Page 17 Symptom: Appliance does not cool sufficiently. Cause: Door has been opened too often, or for too long a time There may be too much food in the refrigerator, possible incorrect temperature selection Symptom: Smell inside the appliance. Cause: Some of the food is not properly wrapped or covered. The inside of the refrigerator needs cleaning;...
-
Page 18: Technical Data
Technical Data You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com) -
Page 19: Health And Safety
Health & Safety The use of any electrical appliance requires the following common sense safety rules. There is danger of injury or death to the person and damage to the appliance. Location This appliance is intended to be used in household and residential ... - Page 20 To protect against the risk of electric shock ensure the electrical connections are kept dry This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities Children Children should be supervised to ensure that they do not play with ...
-
Page 21: Warranty Information
Warranty Information Registering Your 2 Year Guarantee Your standard one year guarantee is extended for an additional 1 year when you register the product within 28 days of purchase with the supplier Shomar Ltd. If you do not register the product with Shomar Ltd within 28 days, your product is guaranteed for 1 year. -
Page 22: Contact Details
Contact Details The After Sales Division for PowerPoint Appliances is located at the offices of the Brand owner and Distributor – Shomar Ltd, Unit 9 Western Industrial Estate, Dublin 12, Republic Of Ireland. - Page 23 You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
- Page 24 You created this PDF from an application that is not licensed to print to novaPDF printer (http://www.novapdf.com)
