Summary of Contents for PowerPoint P4554FML

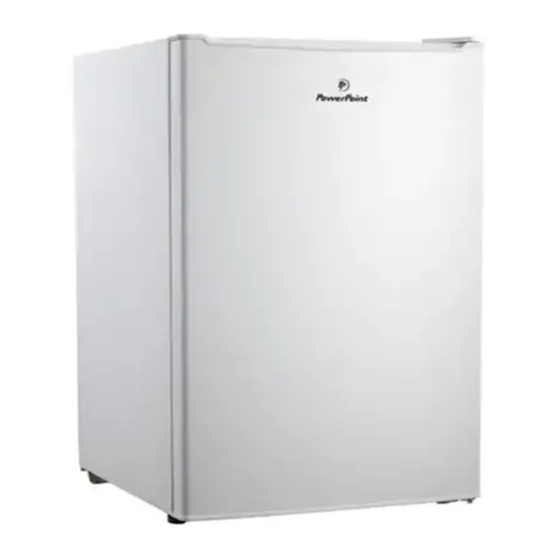

- Page 1 Single Door Larder Refrigerator P4554FML INSTRUCTIONS: Please read and keep safe for future use.
- Page 2 INSTALLATION AND USER INSTRUCTIONS Features………………………………………………………………………………………………….. Transportation instructions................. Introduction & safety warnings..............Electrical Requirements/Installation............Food Storage……………………………..............Defrosting....................Temperature Control / Cleaning and Care ………………………….…………………. Replacing the interior light bulb..............Top Tips …………………………………………………………………………………………………. Problem solving..................Health and Safety..................Warranty Information................Customer Care ……………………………………………………………………………………….
- Page 3 Features Freezer Door Thermostat Refrigerator Shelf Crisper Cover Salad Crisper Adjustable Feet Bottle Retainers...
- Page 4 Transportation of your Appliance • When transporting, never tilt to more than 45 degrees. The appliance should be transported only in a vertical upright position • • The packaging as supplied must be intact during transportation • If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in the front of the appliance.
-
Page 5: Before First Use
Before First Use IMPORTANT! DO NOT connect your appliance to the electricity supply until all Packing and transit protectors have been removed. Leave to stand for at least 4 hours before switching on to allow • compressor oil to settle if transported horizontally •... -
Page 6: Electrical Requirements
Electrical Requirements Before you insert the plug into the wall socket make sure that the voltage and The frequency shown in the rating plate inside the appliance corresponds to Your electricity supply. We recommend that this appliance is connected to the mains supply via a suitable switched and fused socket in a readily accessible position. -
Page 7: Food Storage
5. Do not place the appliance near cookers, radiators or in direct sunlight as This will cause your appliance to work harder. . If installed next to a source of heat or freezer, maintain the following minimum side clearances: From Cookers 50 mm From Radiators 300 mm From Freezers 25 mm Before you start using the fridge check that:... - Page 8 It is advisable to store cooked food on top shelves and fresh food on the • lower shelves to prevent cross contamination Defrosting DEFROSTING THE REFRIGERATOR The fridge compartment defrosts automatically. The defrosting water runs To the drain tube via a collection container at the back of the appliance. During defrosting water droplets may form at the back of the fridge compartment where the concealed evaporator is located.
- Page 9 Arrangement of Food in the Fridge The following guidelines and recommendations are suggested to obtain the Best results: 1. Fresh wrapped produce can be placed on the shelf. Fresh fruit and vegetables should be cleaned and stored in the crisper bins. 2.
-
Page 10: Temperature Control
Temperature Control Temperature Control The temperature of the appliance can be adjusted by turning the thermostat dial. • The thermostat can be set between 1 and 7. • 1 is the warmest setting. • 7 is the coldest setting. • The recommended setting is 4. •... -
Page 11: Cleaning And Care
Cleaning and Care We recommend that you switch off the appliance at the socket outlet and • pull out the mains plug before cleaning Never use any sharp abrasive instrument, soap, household cleaner, • detergent and wax polish for cleaning •... -
Page 12: Replacing The Interior Light Bulb
Replacing the Interior Light Bulb The LED lamp is used by the refrigerator for lighting, which features low energy consumption and long service life. Lamp type: LED light. Top Tips Clean and defrost your appliance regularly • • Keep raw meat and poultry below cooked food and dairy products Take off any unusable leaves on vegetables and wipe off any soil •... -
Page 13: Problem Solving
Don't leave the door open for long periods as this will make the appliance • more costly to run and cause excessive ice formation • Don't put hot food into the appliance Keep electrical cable away from all sources of heat / high temperature •... - Page 14 Working Defects and Failures Symptom: Appliance will not work at all. Cause: The power supply plug is not inserted in the wall socket or the plug and the outlet is loose. To test the supply socket a lamp or small electrical appliance may be used to check that the socket is working.
-
Page 15: Health And Safety
The compressor and the rear condenser will become hot and should not • be touched. If after checking all of the above and the problem persists contact the Shomar Service Department Health & Safety The use of any electrical appliance requires the following common sense safety rules. - Page 16 Personal Safety Avoid touching moving parts. Keep hands, hair and clothing and utensils • away from the appliance and fan to prevent personal injury and/or damage to the appliance. To protect against the risk of electric shock ensure the electrical •...
-
Page 17: Warranty Information
Warranty Information. Registering Your2 Year Guarantee Your standard one year guarantee is extended for an additional 1 year when you register the product within 28 days of purchase with the supplier Shomar Ltd. If you do not register the product with Shomar Ltd within 28 days, your product is guaranteed for 1 year. - Page 18 This guarantee is valid in Ireland and the UK only. Powerpoint products are intended for household use only. See usage limitations within the location safety instructions. Shomar Ltd has a policy of continuous improvement in product quality and design.
-
Page 19: Contact Details
Contact Details The After Sales Division for PowerPoint Appliances is located at the offices of the Brand owner and Distributor – Shomar Ltd, Unit 9 Western Industrial Estate, Dublin 12, Republic Of Ireland. Helplines (office hours) & Spare Parts contact number is 01-450 5327 or email...
