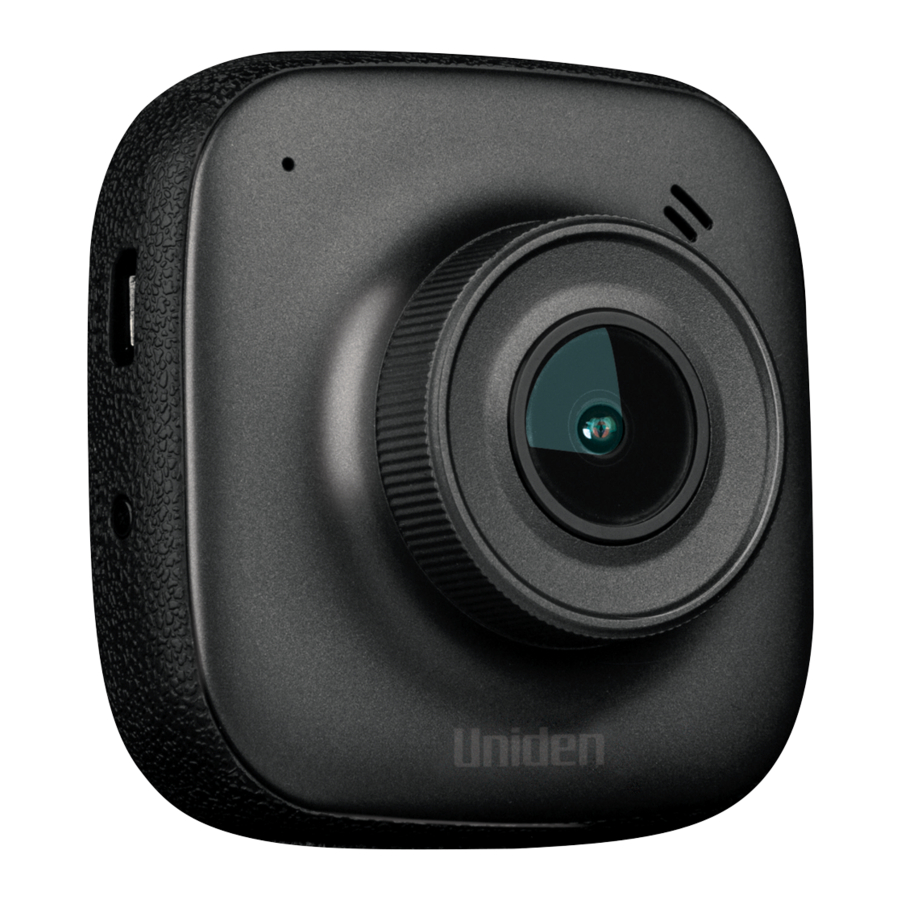

Uniden iGO CAM 30 - Full HD Smart Dash Cam Manual

What's In The Box

Make Sure These Items Arrived in the Box

• If any item is missing or damaged, contact your place of purchase immediately. Never use damaged products!
• Need help? Get answers at our website: www.uniden.com.au for Australian model.

Controls & Indicators

Ref	Component	Description
1	LED	RED - Flashing indicates recording. BLUE - Indicates there is power supplied.
2	LCD Screen
3	RETURN	Recording Mode: Start emergency recording. Record Mode: Enter Settings menu. Photo Mode: Enter Settings menu. Playback Mode: Enter Settings menu/Return. (Press and hold to return Record Mode)
4	UP	Recording Mode: Turn on/off audio recording. Record Mode: Enter Playback mode. Photo Mode: Zoom in/out. Playback Mode: Toggle to previous file/Fast rewind.
5	OK	Recording Mode: Stop video recording. Record Mode: Start video recording. Photo Mode: Return to Record mode. Playback Mode: Play/Pause/Resume.
6	DOWN	Recording Mode: Enter Photo mode. Record Mode: Enter Photo mode. Photo Mode: Take a snapshot. Playback Mode: Toggle to next file/Fast forward.
7	Micro USB Port	Connect micro USB cable & charge battery. Connect to PC for data (SD card) transfer (USB data cable is not supplied).
8	Reset	If the device fails to operate, try resetting the device. Press the reset button using a fine pen or paperclip.
9	POWER	Press & hold for 3 seconds to turn power on. Press & hold for 5 seconds to turn power off.
10	Card Slot	Insert micro SD Card.
11	Bracket Slot	Slot in the sticker mount bracket.
12	Speaker
13	MIC	Records sound.
14	Lens

*Record Mode is when the device is not recording.

Installation

Location

To have a better view, try to install at the center of the windshield. Make sure the lens is located in a place where the windshield wiper can clean the window to ensure view is clear.

Make sure the device is not installed in a place where it will interfere with the safety bag. Make sure the device will not be obstructed by the windshield's sun control film (window tint).

Installing the Mount onto the Windshield

1. Slide the sticker mount bracket into the device bracket slot and make sure it fits tightly.
2. Clean the area you desire to have the dash cam placed before sticking the device.
3. Peel off the sticker protective film from the 3M sticker
4. Press and apply force on the mount onto the windshield behind the rear- view mirror.
5. Adjust the viewing angle of the camera by loosening the screw of the bracket and fasten it back to secure the viewing angle. We recommend the camera should point slightly downwards ~10° below eye level.

NOTE
Sticker mount is difficult to remove after it is installed and will not stick well on a curved/textured or wet surface.

NOTE
Do not install the product in a location where it can obstruct the driver's field of vision.

Operation

Micro SD Card

NOTE
A compatible micro SD card (not supplied) is required to record and store videos and photos.

The device can support micro SDHC cards (High Capacity SD) up to 32GB in capacity. A micro SDHC card of at least 8GB capacity and minimum Class 10 speed is recommended.

Insert a formatted micro SD card gently in the slot at the side of the device. To remove the card from the slot, press the edge of the SD card inwards for it to pop out and then pull it out of the slot.

Uniden only recommends using good quality MLC/SLC micro SD cards and rate for dash cam use. Please check with the SD card manufacturers for more information.

Video Storage Capacity
Refer to the table below for the recording capacity for different card capacity and some of the recording resolution.

Battery Information

Although primarily designed for in-car use, the device can operate from its built-in battery for up to 10 minutes. Please note, the power usage would depend on day/night recording and resolution setting.

The device will charge the battery whenever power is detected through the USB port. The device will take about 120 minutes to charge completely.

NOTE
Please ensure that the battery is fully charged before using it for the first time. To extend the battery life, fully charge the device once every 3 months. The battery life will degrade over a period of time especially the device is exposed to high temperature.

Power On

NOTE
When connected to a car charger with power, the device will automatically power on and start recording.

1. Ensure the USB Charging Cable is connected to the USB car charger.
2. Plug in the USB car charger to the car's cigarette lighter port.
3. Connect the other end of the USB cable into the micro USB port found on the device.
4. The device will power on automatically when the car supplies the power to the device.
5. The red dot on the screen will start flashing and recording starts automatically.

At other times, press and hold the power button for at least 3 seconds.

NOTE
Be sure insert the SD card before powering up the device. Format the SD card before you start recording for the first time.

Power Off

When the car's engine is turned off, the device will automatically turn off in a few seconds.
Press and hold the power button for at least 5 seconds to turn off the device. Do no eject the SD card immediately to prevent damage to the last recorded file.
If you wish to switch the device back on, press and hold the power button for at least 3 seconds.

NOTE
Only use the USB Car Charger Adaptor and USB cable that comes with your device. Any other adaptor might damage the device.

Record Mode

NOTE
To record a video, ensure that a valid micro SD card (not supplied) is inserted in the given slot. Also note, that inserting/ removing the SD card when the device is recording causes the device to shutdown and in worst case malfunction.

Recording

When connected to a car charger, the device automatically goes into the record mode and starts recording. The icon will display on the screen.

A flashing red dot next to the icon indicates that the device is recording. To stop recording, press OK and the red dot disappears, indicating that the recording has stopped.

Protect Function to Protect the Current Recording

If you want to protect the current recordings, then press the RETURN button, the emergency icon will appear on the screen. This indicates that those recordings have been locked and will not be overwritten by new video clips.

Record Settings

NOTE
Please note, you cannot access MENU when the device is recording. To access the Menu, you will need to stop recording by pressing OK.

In the record mode, press the RETURN button to access the record menu settings. Press twice to display the General Settings menu. Press the relevant UP and DOWN keys to scan through the various settings and then press OK to select.
Press the RETURN button to exit the Menu.

Photo Mode

In Record Mode, press the down button to enter Photo mode. You can take a snapshot with the device.
Press the DOWN button to take a snapshot.
Press the UP button to zoom in and out.

NOTE
To return to normal viewing after zoom in, you will need to zoom in till x4.0 then can zoom all the way out to normal viewing.

Press the OK button to return to Record Mode.
If you wish to modify the image parameters including resolution, quality and stamp, please press the RETURN button to access Photo settings.

Playback Mode

In Record mode, press the UP button to enter Playback mode. The device stores video and photos on the SD Card. Playback mode will allow you to review the saved video and photos and play back the video with sound.

When in the Playback mode, toggle the files by Press the UP and DOWN button to scan through the various video/image files and press OK button to play a video file.

During video playback pressing the UP or DOWN button will fast rewind or fast forward the current video. Press OK button to pause the video or RETURN button to return to files selection.

If you wish to delete or protect the file, press the RETURN button to access the playback settings menu

NOTE
To return to Record Mode, press and hold the RETURN button. Press OK to start recording.

General Settings

In any of the modes (record, photo or playback), press the RETURN button twice to open the general settings menu.

Connecting to a PC

The iGO CAM 30 can be connected to a PC by using a USB data cable (not supplied). The supplied USB cable is for charging and supplying power only. When the device is connected to the PC, Mass Storage is displayed on the device's screen.

You can view the SD card contents on the PC. When the device is detected on the PC as an external drive, select to view the DCIM folder. Click on the DCIM folder to open and view recordings or images arranged in folders according to the specified date.

The locked/protected recording files have locked icon on the thumbnail of the file and start with 'LOCK' name. The park mode recording files will start with 'PARK' name, thus enabling you to easily distinguish them from the rest of the recordings.

Playback recordings on PC.
Files can be played back using VLC player or a compatible. AVI media player or an image viewer (for images). You may need to install the AVI codec for video playback if it is missing on your computer. Search online to install the required codec.

NOTE
The supplied USB cable is for charging and supplying power only. You will need a USB data cable (not supplied) for transferring videos and photos from the device to the PC.

Troubleshooting

Listed below are some of the problems and the possible solutions.

If you still need help, visit our website or call our customer service.

Specification

Important Safety Instructions

NOTE
Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture.

NOTE
This product is intended for use in a motor vehicle. Don't install the device where it will block the driver's view of the road (including the mirrors!) or the deployment of the airbag.

NOTE
Keep your attention on the road! Don't try to operate or focus on any device while driving. If you have to concentrate on a device, pull off the road for a few minutes.

NOTE
Ensure that the camera lens is kept clean and there is nothing blocking the lens.

NOTE
Don't leave the device in direct sunlight for a long period of time or where the temperature could go above 30°C.

NOTE
You should examine, check and/or verify the device at least once a month including the associated SD card, to ensure the recording are working properly.

NOTE
Never attempt to disassemble, repair or make any modifications to your device.

Warranty
