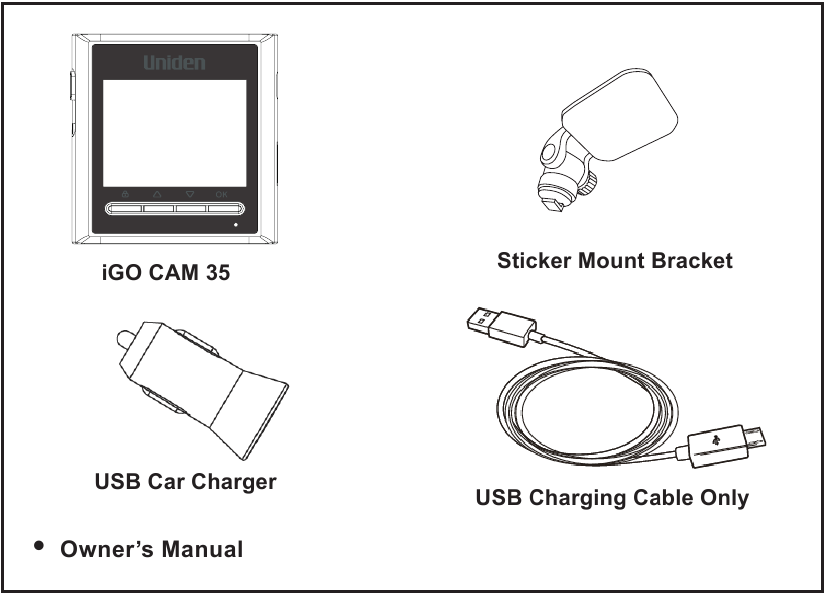

Make Sure These Items Arrived in the Box

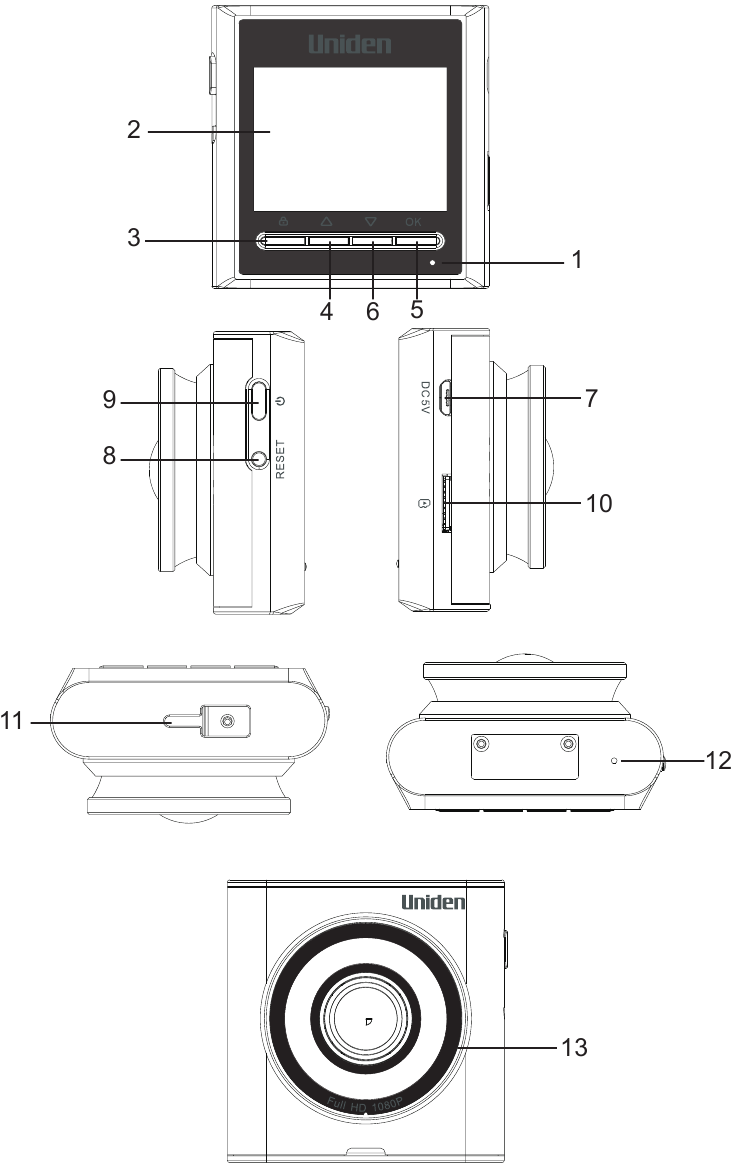

Ref | Component | Description |
1 | LED | BLUE Flashing - Indicates recording. BLUE Always ON- Indicates there is power supplied. |
2 | LCD Screen | |
3 | LOCK/RETURN | Recording Mode: Start emergency recording. Setting Mode: Enter Settings menu. Return Mode: Enter Settings menu Return button. |
4 | UP | Recording Mode: Take Snapshot. Stop Recording Mode: Screen Saver. Setting Mode: Select Menu List. Photo/Video Mode: Select video/photo order. Playback Mode: Delete video/photo. |
5 | OK | Recording Mode: Stop/Start video recording. Setting Mode: OK button. Photo/Video Mode: Play button. Playback Mode: Play/Pause. |
6 | DOWN | Recording Mode: Sound Recording On/Off. Setting Mode: Setting selection. Photo/Video Mode: Take a snapshot. Playback Mode: Play next video/photo. |
7 | Micro USB Port | Connect micro USB cable & charge battery. Connect to PC for data (SD card) transfer (USB data cable is not supplied). |
8 | Reset | If the device fails to operate, try resetting the device. Press the reset button using a fine pen or paperclip. |
9 | Power | Press & hold for 3 seconds to turn power off. Press & hold turn power on. |
10 | Card Slot | Insert micro SD Card. |
11 | Bracket Slot | Slot in the sticker mount bracket. |
12 | MIC | Microphone. |
13 | Lens |
To have a better view, try to install at the center of the windshield. Make sure the lens is located in a place where the windshield wiper can clean the window to ensure view is clear.
Make sure the device is not installed in a place where it will interfere with the safety bag. Make sure the device will not be obstructed by the windshield's sun control film (window tint).
NOTE
Sticker mount is difficult to remove after it is installed and will not stick well on a curved/textured or wet surface.
NOTE
Do not install the product in a location where it can obstruct the driver's field of vision.
NOTE
A compatible micro SD card (not supplied) is required to record and store videos and photos.
The device can support micro SDHC cards (High Capacity SD) up to 128GB in capacity. A micro SDHC card of at least 16GB capacity and minimum Class 10 speed is recommended.
Insert a formatted micro SD card gently in the slot at the side of the device. To remove the card from the slot, press the edge of the SD card inwards for it to pop out and then pull it out of the slot.
Uniden only recommends using good quality MLC/SLC micro SD cards and rate for dash cam use. Please check with the SD card manufacturers for more information.
Video Storage Capacity
Refer to the table below for the recording capacity for different card capacity and some of the recording resolution.
Resolution | 16GB | 32GB | 64GB | 128GB |
1920Px1080P | 110 mins | 220 mins | 430 mins | 870 mins |
Emergency File
When Emergency file storage is less than 30%, a voice reminder " Emergency file will be full, please delete locked files or save them to other device" will notify once every five minutes.
You can turn off the voice reminder under Setting -> Deleting Reminder -> ON
NOTE
When connected to a car charger with power, the device will automatically power on and start recording.
NOTE
Be sure insert the SD card before powering up the device. Format the SD card before you start recording for the first time.
When the car's engine is turned off, the device will automatically turn off in a few seconds.
Or,
Press and hold the power button for at least 3 seconds to turn off the device. Do no eject the SD card immediately to prevent damage to the last recorded file.
NOTE
Only use the USB Car Charger Adaptor and USB cable that comes with your device. Any other adaptor might damage the device.
NOTE
To record a video, ensure that a valid micro SD card (not supplied) is inserted in the given slot. Also note, that inserting/removing the SD card when the device is recording causes the device to shutdown and in worst case malfunction.
When connected to a car charger, after setting up Date/Time, the device automatically goes into the record mode and starts recording. The red dot icon and record time will display on the screen.
A flashing red dot next to the record time indicates that the device is recording. To stop recording, press OK and the red dot disappears, indicating that the recording has stopped.
If you want to protect the current recordings, then press the LOCK/RETURN button, the emergency lock icon will appear on the screen. This indicates that those recordings have been locked and will not be overwritten by new video clips.
NOTE
Please note, you cannot access MENU when the device is recording. To access the Menu, you will need to stop recording by pressing OK.
In the record mode, press the OK button to stop, then press the LOCK/RETURN button to access the record menu settings. Press the relevant UP and DOWN keys to scan through the various settings and then press OK to select.
Press the LOCK/RETURN button to exit the Menu.
Setting | Description |
Playlist | Normal Video/Emergency File/Photo. |
Video Resolution | Set the recording resolution. The maximum resolution is 1920x1080 30FPS. And 1280x720 30FPS. Higher resolutions will give you a sharper image, but take up more memory on the card. |
Loop Recording | Use this option to set the recording duration into smaller fragments that enable the device to overwrite SD Card when reach storage capacity. The duration of these recorded files will be 1 min, 3 mins and 5 mins. |
WDR | Turn on/off the Wide Dynamic Range (WDR) feature to improves the overall exposure throughout your entire image. |
EV Setting | Set the brightness sensitivity for better effect in different lighting condition. Choose between -0.2 ~ +0.3. |
Frequency | Under this setting you have the option to choose between 50Hz/60Hz. Select the relevant option and press OK to save the setting. |
G-Sensor | This functions helps protect/lock video files in case of a sudden movement/collision. Set sensitivity level: Low/Medium/High/Off |
Screen Saver | Set up screen saver. Screen off after configured time, only display date and time. 30 Sec, 1 Minute, and Off. |
Volume Settin | Key Beep(On/Off), System Volume (100%/75%/50%/Off), Video Playback Sound (100%/75%/50%/Off) |
Sound Recording | Use this setting to enable or disable audio recording. |
Headlight Reminder | Headlight Reminder On/Off |
Fatigue Driving Alert | Fatigue Driving Alert 1 hour/2 hours/4 hours/Off |
Parking Mode | Parking mode settings will only appear when the unit powered with the optional Hard Wire Kit (HWK-1). The unit must have sufficient external power supplied in order to record in parking mode. Parking Mode: When movement/collision (G-sensor) is still detected at 20s, the unit will keep record another 30s (30s+30s). All video recorded in Parking Mode are locked and saved in the Event File. When the device detects movement or collision, a voice prompt will remind the user "Please check the latest event files" upon starting the engine. Exit parking mode:
Addition in 2 wires (no ACC)/Cigarette charger: The device will record for 5 minutes with no movement or collision. If there is any movement or collision detected by the G-sensor, the device will wake up and begin continuous loop recording. |
Date & Time | Change the date and time by using the relevant UP and DOWN keys, and then press OK to confirm. You can set the date display format. |
Deleting Reminder | When Emergency file storage is less than 30%, a voice reminder " Emergency file will be full, please delete locked files or save them to other device" will notify. |
Car Plate Stamp | Use to display Car Plate Stamp in the recorded files. |
Video Stamp | Display the model IGOCAM35 on the recorded footage on/off. |
Card Information | Display the SD card total, used and available space. |
Format Reminder | Set format SD card reminder schedule: 15 days/30 days/60 days/Off. |
Format Card | Use this option to format the SD card. (All files will be permanently erased.) |
Default Settings | Resets the device to factory settings. Note that restoring defaults will not erase data on the SD card. |
Version | Display the device firmware version. |
The device stores video and photos on the SD Card. Playlist setting will allow you to review the saved video and photos and play back the video with sound.
When in the Playlist mode, press the UP and DOWN button to scan through the various video/image files and press OK button to play a video file.
If you wish to delete the file, press the UP button to delete the current video.
Setting | Description |
Normal Video | Record normal videos. |
Emergency File | Record and lock emergency videos. |
Photo | Image files. |
NOTE
To return to Record Mode, press the LOCK/RETURN button. The video will start recording.
In Record Mode, press the UP button to take a snapshot. View the photo in Setting -> Playlist.
Press the UP and DOWN button to choose the video/photo.
Setting | Description | |
Return | Return to saved video list. | |
Delete | Delete current file. | |
DOWN | Play next video. | |
Play | Play/Pause the current video. |
NOTE
To return to normal viewing, you will need to press LOCK/RETURN button.
The iGO CAM 35 can be connected to a PC by using a micro USB data cable (not supplied). Select two options:
You can view the SD card contents on the PC. When the device is detected on the PC as an external drive, select to view the Emergency file/Normal/ Photo folder. Click on the selected folder to open and view recordings or images arranged in folders according to the specified date.
The Emergency recordings file is under Event File. Thus, enabling you to easily distinguish them from the rest of the recordings.
Connect iGO CAM 35 to a PC via micro USB data cable, choose PC Camera, the dash camera can be used for online meeting and video call.
Files can be played back using MP4 player or a compatible. MP4 media player or an image viewer (for images).
NOTE
The supplied USB cable is for charging and supplying power only. You will need a USB data cable (not supplied) for transferring videos and photos from the device to the PC.
Listed below are some of the problems and the possible solutions.
General Problems | Possible Solutions |
The device cannot take photos or record videos | Ensure that the SD card is formatted properly and inserted correctly. Use the recommended type of SD card (minimum 16GB Class 10) |
The device automatically stops when recording | |
Video is unclear | Ensure that there are no fingerprints or dirt on the lens. Ensure that the lens is always kept clean. |
Dark images while recording water/sky | Adjust the exposure setting. |
Colour of the images is not good | Set the 'white balance' setting to automatic. |
Cross-stripe interference in an image | This is due to the light frequency. Change the light frequency depending on the light source. |
The device crashes/freezes | Press the 'Reset' button, to restart the device. |
SD Card Error | Please format the SD card and use recommended card only. Please make sure the SD card is recommended dash cam use. |
Display turns off after a few minutes | Please check the LCD Screen saver setting and select Off. |
Memory card is full | Please allow loop recording to overwrite older recording files or delete unwanted files including emergency recordings. |
The unit feels warm during operation | It is normal for the camera to get warm during operation. Please bear in mind that the if the camera is exposed to high temperature for a long period of time, it might fail to boot up. Cool it down and try again. |
If you still need help, visit our website or call our customer service.
Screen Size | 2.0" LCD |
Sensor Type | CMOS 2.0 Megapixel |
Video Resolution | 1920x1080P @30fps |
Loop Recording | Yes |
Audio Recording | Yes |
Viewing Angle | 130° |
Date and Time Stamp | Yes |
Parking Mode | Yes |
G-Sensor | Yes |
Video Format | H.264 |
Image Format | JPEG |
Storage | microSD (up to 128GB) |
Power Input | 5V 1.5A |
Battery Capacity | Super Capacitor |
Operating Temperature | -10°C ~ 60°C |
Working Humidity | 10 ~ 80% |
NOTE
Uniden does not represent this product to be waterproof. Do not expose this product to Rain or Moisture.
NOTE
This product is intended for use in a motor vehicle. Don't install the device where it will block the driver's view of the road (including the mirrors!) or the deployment of the airbag.
NOTE
Keep your attention on the road! Don't try to operate or focus on any device while driving. If you have to concentrate on a device, pull off the road for a few minutes.
NOTE
Ensure that the camera lens is kept clean and there is nothing blocking the lens.
NOTE
Don't leave the device in direct sunlight for a long period of time or where the temperature could go above 60°C.
NOTE
You should examine, check and/or verify the device at least once a month including the associated SD card, to ensure the recording are working properly.
NOTE
Never attempt to disassemble, repair or make any modifications to your device.
UNIDEN AUSTRALIA PTY LTD
Phone: 1300 366 895
Email: custservice@uniden.com.au
For more exciting new products please visit our website:
Australia: www.uniden.com.au
