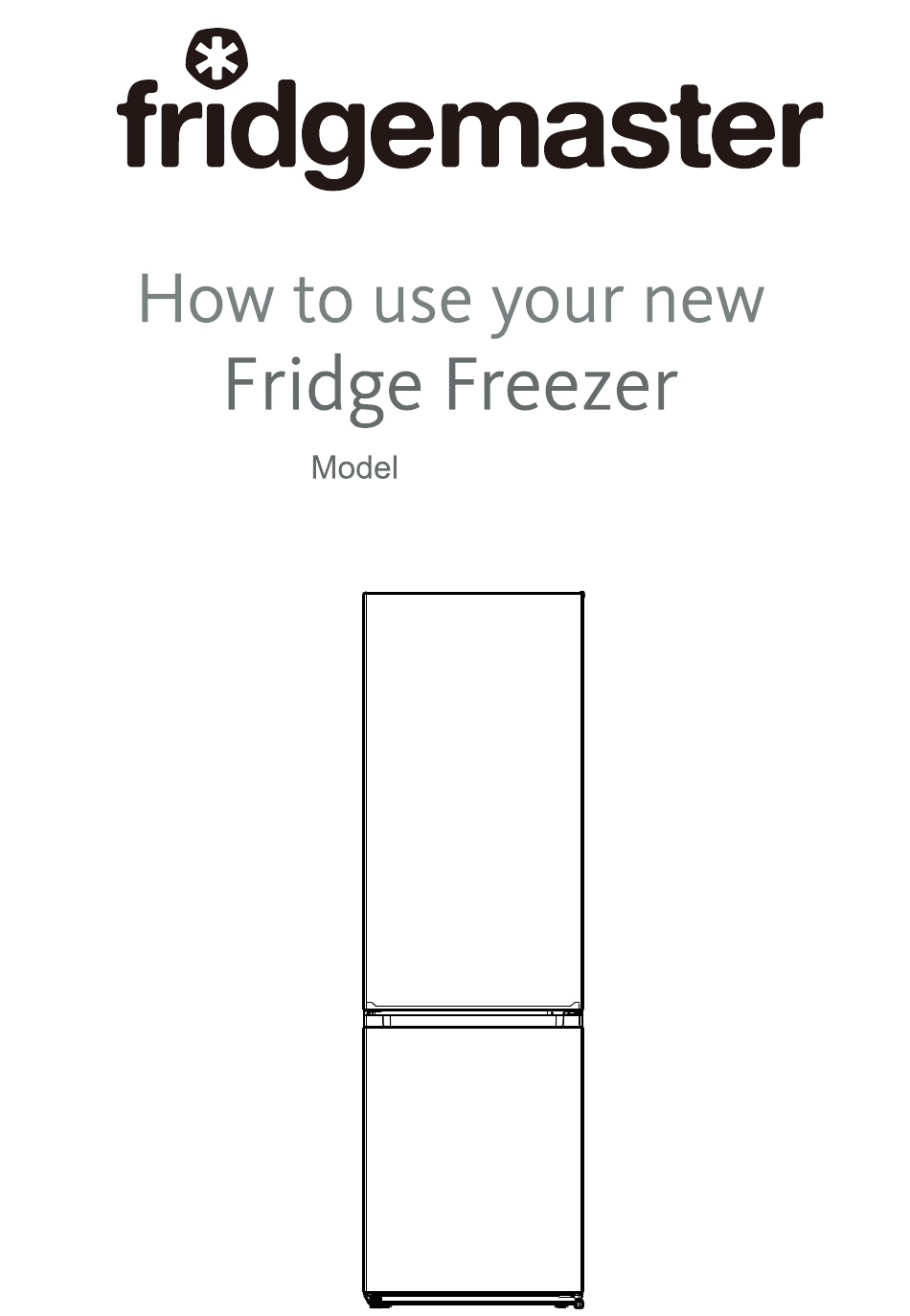

  • Page 1 MC55265E MC55265EB MC55265ES...
  • Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. https://www.fridgemaster.co.uk Important safety warning...

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 CHANGING THE DOOR OPENING DIRECTION 20 OPERATING THE APPLIANCE 21 USING YOUR APPLIANCE 24 HELPFUL HINTS AND TIPS DEFROSTING AND CLEANING 26 CLEANING AND CARE...

  • Page 4: Important Notes And Precautions

    IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
  • Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
  • Page 7 flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable. • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition.
  • Page 8 • You must not operate the appliance without the interior lighting lamp cover. • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
  • Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
  • Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.

  • Page 11: Installing Your New Appliance

    INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat.
  • Page 12 Leveling of appliance • For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted, you can adjust them by your fingers or a suitable spanner. • To allow the doors to self-close, tilt back the top backwards for about 10 mm. 1 1 0 0 m m m m...

  • Page 13: Appliance Description

    APPLIANCE DESCRIPTION 1. Controller box and LED light 7. Freezer lower drawer 2. Door switch 8. Adjustable bottom feet 3. Shelf 9. Upper rack 4. Crisper box cover 10. Refrigerator door 5. Crisper drawer 11. Lower rack 6. Freezer upper drawer 12.

  • Page 14: Changing The Door Opening Direction

    CHANGING THE DOOR OPENING DIRECTION The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains.
  • Page 15 1. Stand the refrigerator upright. Open the upper door to take out all door racks (to avoid damage) and then close the door. 2. Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at the top left corner of the refrigerator, and the upper hinge cover which is at the top right corner of the refrigerator.
  • Page 16 4. Remove the upper hinge axis, transfer it to reversed side and tighten securely, then put it in a safe place. 5. Remove the upper door from the middle hinge by carefully lifting the door straight up. NOTE: When removing the door watch for washer(s) between the center hinge and the bottom of the upper door that may stick to the door.
  • Page 17 7. Unscrew the two special flange self-tapping screws which are used for fixing the middle hinge part, then remove the middle hinge part that hold the lower door in place. NOTE: When removing the door, watch for washer(s) between the lower hinge and the bottom of the lower door that may stick to the door.
  • Page 18 10.Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts, and remove the front feet board and the lower hinge part by unscrewing the special flange self-tapping screws. Lower hinge part (right) 2 Adjustable bottom feet part 3 Self tapping screws 12 Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws.
  • Page 19 15.Transfer the upper door to the appropriate position. Secure the door`s level, make the middle hinge axis into the lower hole of the upper door. 16.Transfer the upper hinge part and make the upper hinge axis into the upper hole of the upper door, and adjust the position of the upper door (please support the upper door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws.

  • Page 20: Operating The Appliance

    OPERATING THE APPLIANCE A Temperature setting and on/off knob SWITCHING THE APPLIANCE ON/OFF To switch on: rotate the A dial clockwise. Switching off: Rotate the A knob back to the position in which the arrow is aligned with the symbol (caution: appliance will remain powered, i.e.

  • Page 21: Using Your Appliance

    USING YOUR APPLIANCE Accessories Movable shelves/trays • Various glass, plastic storage shelves or wire trays are included with your appliance - different models have different combinations and different models have different features. • The walls of the refrigerator are equipped with a series of runner so that the shelves can be positioned as desired.
  • Page 22 Ice-cube tray For making ice and storing ice-cubes. To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  • Page 23 ≤ –6 * – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food. 0 star –6 ≤ 0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.

  • Page 24: Helpful Hints And Tips

    HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •...
  • Page 25 Hints for freezing • When first staring-up or after a period out of use. Before putting the food in the compartment, let the appliance run at least 2 hours on the higher settings. • Prepare food in small portions to enable it to rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.

  • Page 26: Cleaning And Care

    CLEANING AND CARE For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. Warning! The appliance should not be connected to the main power supply during cleaning.
  • Page 27 • In order to speed up the process of defrosting, you may put a bowl of warm water (about 50°C) into the freezer chamber and scrape away the ice and frost with a defrosting spatula. After doing so, be sure to set the knob of the temperature regulator to the original position.

  • Page 28: Troubleshooting

    TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service. Warning! Don't try to repair the appliance yourself.
  • Page 29 Problem: Possible cause & Solution It is normal to frequently hear the sound of the motor, it will need to run more during following circumstances: • Temperature setting is set colder than necessary. The motor runs • Large quantity of warm food has recently been continuously stored within the appliance.

  • Page 30: Disposal Of The Appliance

    DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1.
  • Page 31 Fridgemaster Technical helpline and FRIDGEMASTER Service Centre Ground floor, Munroe Court, Telephone 0191 387 0804 White Rose Office Park, Millshaw Park Lane, Leeds LS11 0EA Fridgemaster@0800repair.com United Kingdom This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
