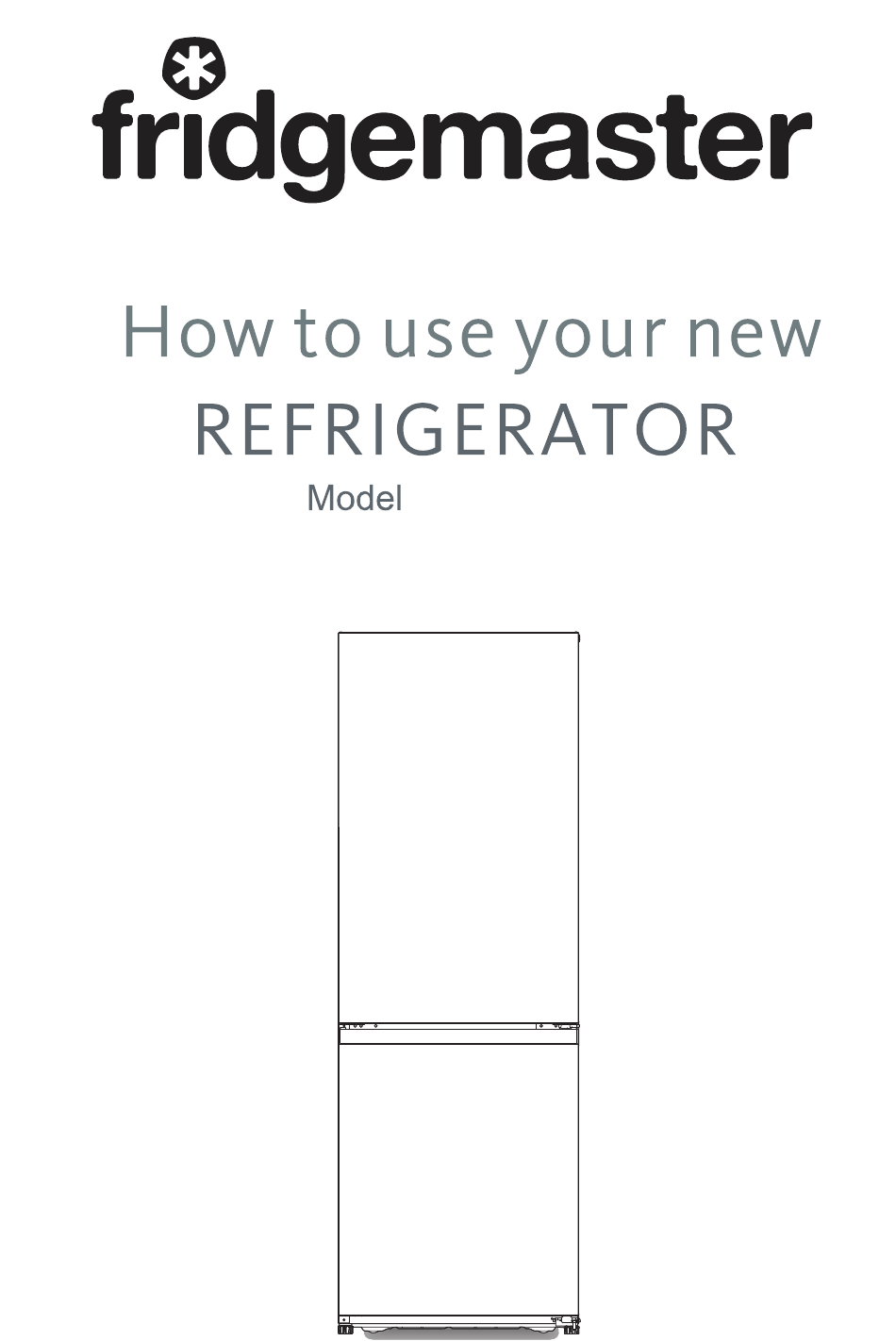

- Page 1 MC50165F MC50165SF MC50165BF MC50165E...
- Page 2 Contents Safety and warning information_ __ _ _ _ Helpful hints and tips__ _ _ _ _ _ _ _ _ _ _ Installing your new appliance_ _ _ _ _ _ _ 8 Cleaning and Care _ _ _ _ _ _ _ _ _ _ _ _ Description of the appliance _ _ _ _ _ _ _ Troubleshooting _ _ _ _ _ _ _ _ _ _ Operation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _...
- Page 3 Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.
- Page 4 WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Page 5 It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a shortcircuit, fire, and/or electric shock. Electrical safety 1.The power cord must not be lengthened. 2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
- Page 6 Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to.Refer to relrelevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the...
- Page 7 Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
- Page 8 50-70mm 50-70...
- Page 9 Description of the appliance View of the appliance 1 controller part 2.Storage shelf. 3.Crisper box Cover 4.Crisper box Upper freezer drawer Middle freezer drawer Lower freezer drawer 8.Adjustable feet 9.Upper door shelf 10.Lower door shelf To get more space in the freezer, you can remove drawers(except the bottom drawer in freezer! ) .To get the best energy of this product, please place all shelves, drawers on their original position as the illustration above.
- Page 10 High temperature setting will accelerate food waste. • For optimum food preservation, a medium setting is generally the most suitable.
- Page 11 Operation ① 4. Loose screws used to fix the middle Reversing the door ② ② hinge and remove middle hinge . Then The side at which the door opens can be remove the lower door. changed, from the right side (as supplied) to the left side, if the installation site requires.
- Page 12 Operation 11. Screw out the upper hinge axis, turn the 8. Screw out lower hinge, change it to the upper hinge over and fix axis on it. Then near hole site, and then screw up. place it at side for use. 9.
- Page 13 Door shelf shelf Helpful hints and tips Energy saving tips Place food properly so that air can ● We recommend that you follow the tips circulate freely around it. below to save energy. Hints for refrigeration ● Try to avoid keeping the door open for Meat (All Types) Wrap in polythene food: ●...
- Page 14 Hints for freezing Hints for the storage of frozen food ● When first starting-up or after a period out Ensure that frozen food has been stored ● of use, let the appliance run at least 2 hours correctly by the food retailer on the higher settings before putting food in Once defrosted，...
- Page 15 In the case of speeding up the process of Caution! Don't use sharp objects to remove defrosting, you may put a bowl of warm frost from the freezer compartment. Only water (about 50°C) into the freezer after the interior is completely dry should chamber, and scrape away the ice and the appliance be switched back on and frost with a defrosting spatula.
- Page 16 Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
- Page 17 Th e wa ter pan (located at the rear bottom of the cabinet) ma y not be properly leveled,or the draining spout (located underneath the top of the comp ressor depot) ma y not be Wat er dr ips on the floor properly positioned to direct wa ter into this pan,or the wa ter spout is blocked.You ma y need to pull the refrigerator awa y from the wa ll to check the pan and spout.
- Page 18 To avoid contamination of food, please respect the following instructions Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 19 Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, Fresh Food 0 +4 preferably no mo re than 3 days) red wine,white wine,sparkling wine etc. Wine +5 +20 Note: please store different foods according to the compartments or target storage temperature of your purchased products.
- Page 20 Ground floor, Munroe Court, White Rose Office Park, Millshaw Park Lane, Leeds LS11 0EA 4212538-B...
