Summary of Contents for Fridgemaster MC55274DF/SA

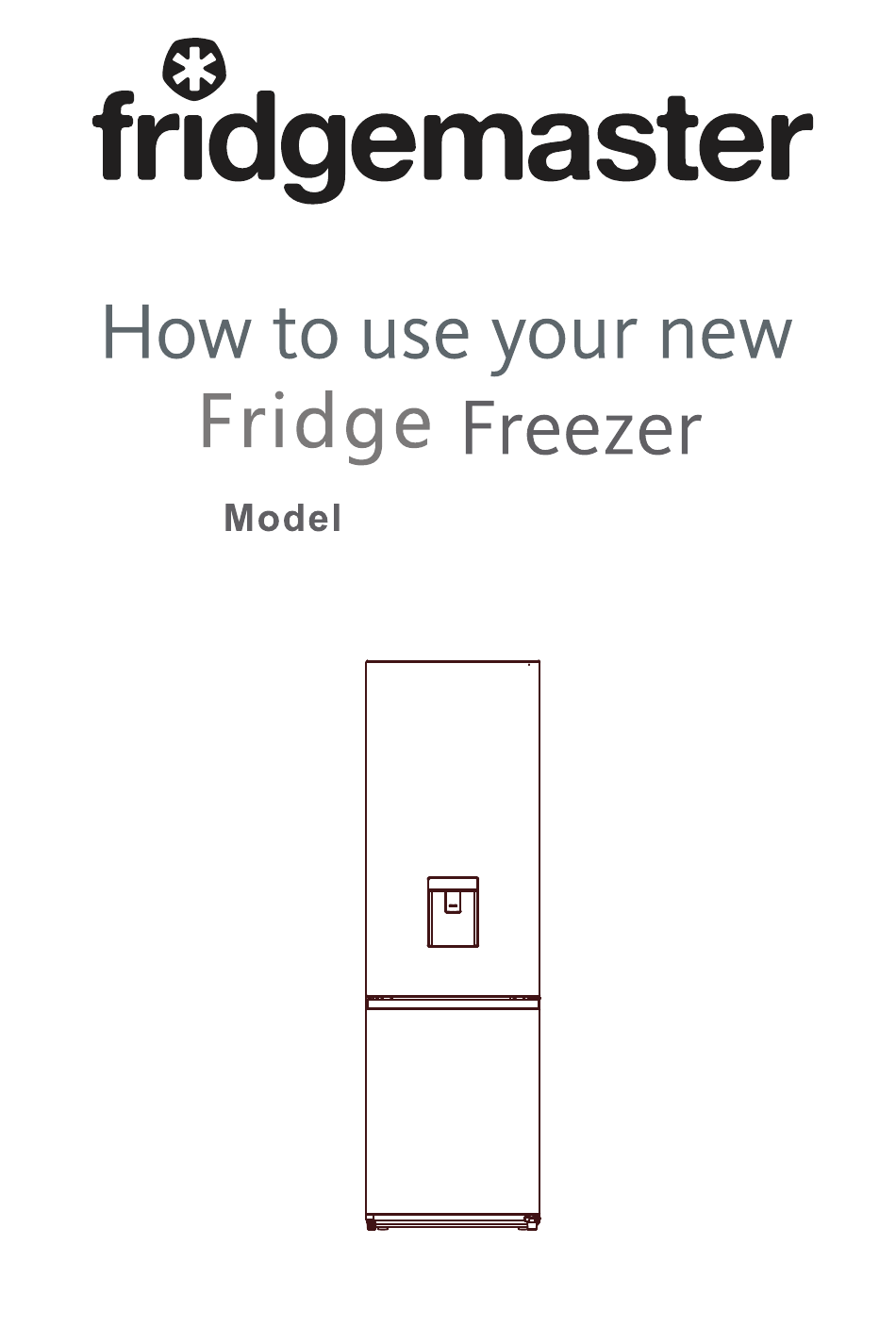

- Page 1 MC55274DF/SA MC55274DFS/SA...
-
Page 2: Table Of Contents
Contents Safety and warning information…..2 Using your appliance.…….…..14 Installing your new appliance………..8 Helpful hints and tips……….…..16 Description of the appliance....9 Cleaning and care..……………….17 Reversing the door....…..10 Troubleshooting..…………………19 Operation.....……….…....13 Disposal of the appliance..…..…20 For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. - Page 3 use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Keep all packaging away from children as there is risk of suffocation. If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves...
- Page 4 WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame. WARNING —When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING —Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
- Page 5 -Avoid opening flames and sources of ignition. -Thoroughly ventilate the room in which the appliance is situated. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.
- Page 6 Do not place food products directly against the air outlet on the rear wall. Store pre-packed frozen food in accordance with the frozen food manufacture’s instructions. The appliances manufactures storage recommendations should be strictly adhered to relevant instructions for storage. Do not place carbonated or fizzy drinks in the freeze compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the...
- Page 7 Caution! Care and cleaning Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket. Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
-
Page 8: Installing Your New Appliance
In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator. Suggest :It is advisable for there to be 50-70mm of space from the back to the wall, at least 100mm from its top,at last 100mm from its side to the wall... -
Page 9: Description Of The Appliance
Description of the appliance View of the appliance 1.Refrigerator lamp 2.Door switch 3.Shelf 4.Vegetable drawer cover Fridge 5.Vegetable drawer 6.Freezer upper drawer 7.Freezer lower drawer 8.Adjustable foot 9.Egg rack(inside) Freezer 10.Upper rack 11.Middle rack 12.Water storage box part 13.Refrigerator door 14.Lower rack 15.Freezer door Note: To get the best energy efficiency of this product, please place all shelves,... -
Page 10: Reversing The Door
Reversing the door 2.Stand the refrigerator upright, first ① unscrew the screw by a cross- shaped screwdriver, and remove the ② upper hinge cover which is at the top right corner of the refrigerator, and use a putty knife or thin-blade screwdriver to prize the crew hole ③... - Page 11 and remove it to the hole which is side by side and screw it. 10. Replace the lower hinge part to the left side and fixing it with the special flange screws. Replace the adjustable bottom feet part to another side and fixing it. 6.Place the lower door on a smooth surface with its panel upwards.
- Page 12 14.Transfer the upper hinge part and make the upper hinge axis into the upper hole of the upper door, and adjust the position of the upper door(please support the upper door with your hand when doing it), fixing the upper hinge part with the special flange self-tapping screws.
-
Page 13: Operation
Operation Starting up and temperature regulation Reason: when the ambient Insert the plug of the connection lead ● temperature is high, the compressor into the plug socket with protective earth must run continuously to maintain contact. When the refrigerator the low temperature in the appliance. compartment door is opened, the internal Changing the LED light lighting is switched on. -
Page 14: Using Your Appliance
Accessories 1) Install the door shelf Movable shelves/trays Various glass, plastic storage shelves or wire trays are included with your appliance-different models have different combinations and different models have different features. The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. - Page 15 Assembling It is only applicable to the appliance with Before assembling, please drain the dispenser. water inside the tank, and check whether the washer reversed or not. Water Dispenser 1. Insert the head into the hole. The water dispenser, located in the 2.
-
Page 16: Helpful Hints And Tips
Warning! Other beverage(milk,juice, ● Don’t push the dispenser lever carbonated beverage etc) is not forward without cup, it may cause suggestted to be used than potable the water leak from the dispenser. water.Especially beverage including grain must not be used Cleaning (may result in failure). -
Page 17: Cleaning And Care
● It is recommended to label and date each ● Milk bottles: frozen package in order to keep track of the Should have a lid and be stored in the door storage time. racks. Hints for the storage of frozen food Hints for freezing Ensure that frozen food has been stored ●... - Page 18 Caution! Don't use sharp objects to remove In the case of speeding up the process of frost from the freezer compartment. Only defrosting, you may put a bowl of warm after the interior is completely dry should the water (about 50°C) into the freezer appliance be switched back on and plugged chamber, and scrape away the ice and back into the mains socket.
-
Page 19: Troubleshooting
Troubleshooting If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks according to this section before before calling for service. Warning! Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. -
Page 20: Disposal Of The Appliance
Temperature inside is Increase the temperature by following the "Display controls” too cold chapter. Check whether the top of the refrigerator is tilted back by Doors cant be closed 10-15mm to allow the doors to self close, or if something inside is easily preventing the doors from closing. - Page 21 - Clean water tanks if they have not been used for 48 h. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
- Page 22 0191 387 0804...
- Page 23 FRIDGEMASTER Unit 2 Meadow Court Millshaw Lane Leeds, 0191 387 0804 West Yorkshire, LS11 8LZ, United Kingdom...
