WIRELESS BRIDGE
USER MANUAL
Model:CPE365
Tips:
Thank you for ordering and using AdaLov CPE365 Wireless Bridge, please read
the manual carefully before use.If there are any problems during the use, please
contact us in time.
Customer Service Email: cs@adalovus.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPE365 and is the answer not in the manual?

Questions and answers

Summary of Contents for Adalov CPE365

  • Page 1 WIRELESS BRIDGE USER MANUAL Model:CPE365 Tips: Thank you for ordering and using AdaLov CPE365 Wireless Bridge, please read the manual carefully before use.If there are any problems during the use, please contact us in time. Customer Service Email: cs@adalovus.com...
  • Page 2: Table Of Contents

    Contents Chapter 1 - Get to Know About Your Wireless Bridge 1.1 Product Overview 1.2 Appearance 1.2.1 Port and Button Description 1.2.2 LED Explanation 1.3 Specifications Chapter 2 - Highlights Chapter 3 - Package Chapter 4 - Wireless Bridge Pairing & Installation 4.1 POE Power Supplyower Supply 4.2 Master Bridge &...
  • Page 3: Chapter 1 - Get To Know About Your Wireless Bridge

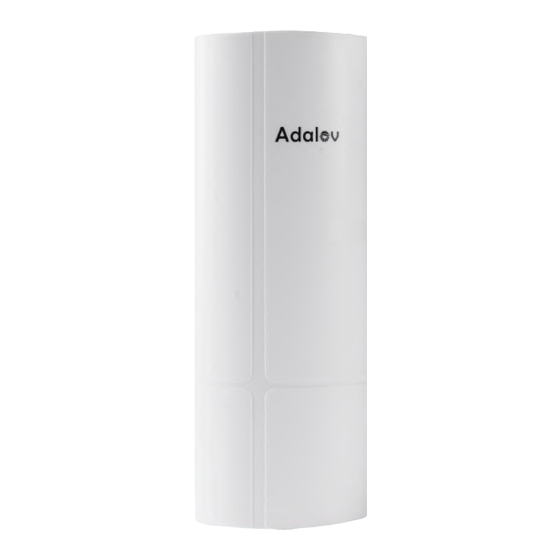

    Chapter 1 Get to Know About Your Wireless Bridge 1.1 Product Overview WLAN Indicator SIG1-SIG4---Signal Light 1000Mbps LAN2 Port 100Mbps LAN1 Port PWR-- Power Indicator Power Indicator Digical Tube 1000Mbps LAN Port DC Jack Reset Button Slave Bridge Indicator A-B Button 100Mbps LAN Port cs@adalovus.com...
  • Page 4: Appearance

    1.2 Appearance 1.2.1 Port and Button Description Port or Buttons Description Pushing the button to “A” indicates that the bridge acts as the master bridge(transmitter),and pushing the button to A-B Button “B” indicates that the bridge acts as the slave bridge (receiver) Short press once to toggle a different character to pairing;...
  • Page 5: Specifications

    1.3 Specifications Model CPE 365 7620A + 7612E + IP1001 Flash 8MByte DRAM DDR 264MByte Interface 10/ 100/ 1000Mbps LAN x 1 & 10/100Mbps LAN x 1 Data rate 11a: 54M,48M,36M,24M,18M,12M,9M,6Mbps 11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M,14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps 433Mbps Transfer method Direct Sequence Spread Spectrum (DSSS)
  • Page 6: Chapter 2 - Highlights

    11. Support 24V POE power supply, easy to install and deploy; 12. Support WEB GUI access. Chapter 3 - Package Package Included: 2 x CPE365 Wireless Bridges, 2 x POE Adapters, 2 x Metal Cable Ties, 2 x Network Cables, 1 x User Manual.
  • Page 7: Chapter 4 - Wireless Bridge Pairing & Installation

    Chapter 4 Wireless Bridge Pairing & Installation 4.1 POE Power Supplyower Supply The CPE365 wireless bridge adopts a POE power supply, which is easy to Install and manage while saving costs. (1) According to the requirements, prepare along enough network cable (Recommended within 20 meters, must Cat 5e network cable to connect the wireless bridge and the POE power supply.
  • Page 8: Master Bridge & Slave Bridge Installation

    2. Short press the reset button to change the channel from 0-9, A-F, the LED indicator will display the numeric to show what channel it is, please keep the master and slaves bridges in the same channel. Slave CPE Master CPE 3.
  • Page 9: Installation Steps

    4.3.2 Installation Steps: 1. Put the bridges front side face to face in the same direction, then use the ties to fix the CPE. (Note: The bracket is not included in the package). 2. Use a long network cable to connect the POE adapter and the bridge.
  • Page 10 5. Tips: (1). Before installation, please check whether the wireless bridge is paired well, please refer the master and slave pair setting page. (2). For installation, keep clear line of sight between the 2 wireless bridge. There is no strong electricity, strong magnetism, and other signal interference between the two wireless bridges.
  • Page 11: Chapter 5 - Application

    Note: (1). The slave bridges must in the front of the master bridge; (2). The master bridge and slave bridges must be face to face; (3). The maximum angle between the master bridge and slave bridges should not exceed 60 degrees. Chapter 5 - Application 5.1 Point to Point for Network Extend Diagram:...
  • Page 12: Multiple Network Equipment Expansion Diagram

    5.3 Multiple Network Equipment Expansion Diagram: 5.4 Point to Multi-Point Connection Diagram: 5.5 Multiples Clients Connection Diagram: cs@adalovus.com...
  • Page 13: Relay Mode Connection Diagram

    5.6 Relay Mode Connection Diagram: Chapter 6 - Computer Access 6.1 Modify Computer’s IP POE Charger Refer to the figure left to connect the CPE to the computer through a POE adapter and an Ethernet cable. Note: You can enable the device without advanced settings 2.
  • Page 14 Select Ethernet and click “Change Adapter Options” cs@adalovus.com...
  • Page 15 Find the network connection you are using, right click it and select “Properties” cs@adalovus.com...
  • Page 16: Login Via Browser

    Double-click the “Internet Protocol version 4(TCP/IPv4)” go to IP configure interface Configure your computer IP address as 192.168.255.x (x is a figure 0-200). Note: The Pc’s IP can not be the same as the bridge. 6.2 Login via browser Open the browser and enter the IP address of the wireless bridge to access, for example, enter “192.168.255.101″...
  • Page 17 A login screen will appear, by default, the Username and Password of the wireless bridge all are "admin". Note: “admin” is not the password of the WiFi SSID, it is just the password for WEB access cs@adalovus.com...
  • Page 18 Digital & IP Chart Digital & A - IP B - IP 5.8G ID WiFi SSID Password IP Chart 192.168.255.100 192.168.255.200 CPE5G_5G0 zllinkcpe1234560 192.168.255.101 192.168.255.201 CPE5G_5G36 zllinkcpe12345636 192.168.255.102 192.168.255.202 CPE5G_5G40 zllinkcpe12345640 192.168.255.103 192.168.255.203 CPE5G_5G44 zllinkcpe12345644 192.168.255.104 192.168.255.204 CPE5G_5G48 zllinkcpe12345648 192.168.255.105 192.168.255.205 CPE5G_5G120 zllinkcpe123456120...
  • Page 19: Chapter 7- Advanced Settings

    Chapter 7 - Advanced settings Can turn on/ off "Hide SSID", modify the SSID name and WiFi password, click "Apply" to complete the setting. cs@adalovus.com...
  • Page 20 Can modify the two bridge’s IP, click "Apply" to complete the setting. Can modify the two bridge’s Administrator Login name and Password, click "Apply" to complete the setting. cs@adalovus.com...
  • Page 21: Chapter 8 - After-Sales Service

    Chapter 8 - After-Sales Service Tips: 1. The installation of this device requires network knowledge, if you can not install it, please contact us or ask a professional for help, if the product you receive is damaged or miss any accessories, please contact us for exchange or resend.
