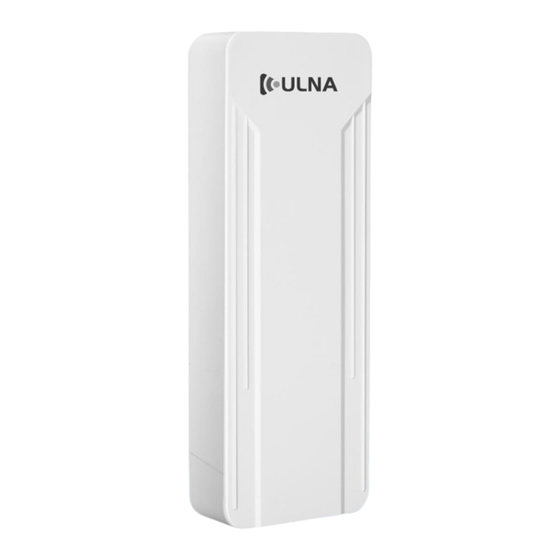

ULNA CPE-977 User Manual

Wireless bridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WIRELESS BRIDGE
USER MANUAL
Model: CPE-977
Tips:
Thank you for ordering and using ULNA CPE977 Wireless Bridge, please read
the manual carefully before use. If there are any problems during the use,
please contact us in time. The installation of this device requires some
network knowledge. If you can't install it, please let us know or contact a
professional.
Customer Service Email: support01@ulnastore.com

Advertisement

Table of Contents
loading

Related Manuals for ULNA CPE-977

Summary of Contents for ULNA CPE-977

  • Page 1 Model: CPE-977 Tips: Thank you for ordering and using ULNA CPE977 Wireless Bridge, please read the manual carefully before use. If there are any problems during the use, please contact us in time. The installation of this device requires some network knowledge.

  • Page 2: Table Of Contents

    Contents 1. Overview 1.1 introduce 1.2 Highlights 1.3 specifications 2. PackageIncluded 3. Interface Details 3.1. Button Operation 4. LED Indicator Details 5. Quick Start 5.1 PoE Power Supply 5.2 Point to Point Pairing Step 5.3 Point to Multipoint Pairing Step 6.

  • Page 3: Overview

    1. Overview 1.1 Introduce ULNA CPE977 is a long-distance 5.8G wireless transmission device. It uses wireless communication technology to transmit network data using air as a medium to perform long-distance point-to-point or point-to-multipoint interconnection. The working data link layer realizes the interconnection of local area networks.

  • Page 4: Specifications

    1.3 Specifications Brand ULNA Model CPE-977 7620A+7612E+IP1001 Flash 8MByte DRAM DDR2 64MByte Interface 10/100/1000Mbps LAN*1 & 10/100Mbps LAN*1 11a:54M,48M,36M,24M,18M,12M,9M,6Mbps 11n:7.2M,14.4M,21.7M,28.9M,43.3M,57.8M,65M, Data rate 72.2M,14.4M,28.9M,43.3M,57.8M,86.7M,115.6M,130M, 144.4Mbps 433Mbps Transfer method Direct Sequence Spread Spectrum(DSSS) Modulation OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK Protocol standard IEEE802.11ac IEEE802.11n,IEEE802.11a ,IEEE802.3u CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3, Agreement NDIS4,NDIS5 4900～6100MHz...

  • Page 5: Packageincluded

    Model: CPE-977 Tips: Thank you for ordering and using ULNA CPE977 Wireless Bridge, please read the manual carefully before use. If there are any problems during the use, please contact us in time. The installation of this device requires some network knowledge.

  • Page 6: Led Indicator Details

    4. LED Indicator Details WLAN Signal Light LAN2 LAN1 Power Indicator LED Light Description Signal Lights After the bridge is connected successfully, the WLAN light will be on, not connected the WLAN light will not be lit. LAN1/LAN2 The data connection is successful, the LED light is on, otherwise, it is not bright.

  • Page 7: Quick Start

    5. Quick Start 1. PoE Power Supply The CPE977 wireless bridge adopts a PoE power supply, which is easy to install and manage while saving costs. 5.1. According to the requirements, prepare a long enough network cable （Recommended within 20 meters, must Cat 5e or up） to connect the wireless bridge and the PoE power supply.

  • Page 8: Point To Multipoint Pairing Step

    5.3.Point to Multipoint Pairing Step: e.g. 1 master bridge with 3 slave bridges 1. Switch one unit to A(Master Bridge) and 3 units to B(Slave Bridge); 2. Connect the POE to each unit using the Ethernet cable and plug the POE in; 3.
  • Page 9 fix the CPE, the bracket is not included in the package. Recommended ULNA Universal Bracket (ASIN: B0B5TWYHWC). 2. Please, prepare a long enough network cable to connect the PoE adapter and CPE, the network cable is connected to the LAN port of the CPE, and the other end is connected to the PoE port of the PoE adapter.

  • Page 10: Wifi Function

    7.WiFi Function 1. The WiFi function is turned on by default for the master bridge. WiFi SSID: CPE5G-5GXXX WiFi PWD: zllinkcpe123456XXX XXX represents different channels, please refer to the comparison table in the user manual. 2. You can access the wireless bridge through your computer to set the SSID and new WiFi password.

  • Page 11: Case 2: Ptp Extended Of Surveillance Cameras Range

    8.2 Case 2: Point-to-point extended of surveillance cameras range 8.3 Case 3: Point-to-multiple point extended surveillance cameras range 8.4 Case 4: Point-to-point extended surveillance cameras range support01@ulnastore.com...

  • Page 12: Advanced Settings

    9.Advanced Settings Note: You can work the wireless bridge without advanced settings 1. Computer Access Wireless Bridge, connect the CPE to the computer Refer to the figure left to connect the CPE to the computer through a PoE adapter and an Ethernet cable.
  • Page 13 3. Change your computer's IP address to 192.168.255.xxx (192.168.255.xxx cannot be the same as the IP of the CPE), then the entry IP address is 192.168.255.xxx, the subnet mask is 255.255.255.0(Autofill), the Default gateway is 192.168.255.xxx, Preferred DDS server 192.168.255.xxx. You can use 192.168.255.105(xxx=2) in the reference picture to set.
  • Page 14 6. In the wireless settings, turn off "Hide SSID", then modify the SSID name and WiFi password, and finally click "Apply" to complete the setting. Digital & IP & WiFi Correspondence Chart You can check the SSID and password through this chart. support01@ulnastore.com...

  • Page 15: Troubleshooting

    10.Troubleshooting 1. Wireless interference 1. Wireless interference 2. Distance is too long, 2. Distance is too long, or there are some walls or there are some walls Packet Latency between them between them 3. CPE's angle in the 3. CPE's angle in the wrong direction, weak wrong direction, weak signal...
  • Page 16 1. PoE power supply is 1. Check if the PoE adapter not working or PoE switch work 2. Some problem in 2. Check if the PoE port of CPE's PoE port CPE is ok 3. Ethernet cable is 3. Check if Ethernet cable is System LED light loose, RJ45 port is loose if Ethernet cable...

  • Page 17: Technical Support And Service

    11.Technical Support and Service A. Thank you for your order and for using ULNA Wireless Bridge, please read the manual carefully before use. If there are any problems during the use, please contact us in time; B. The installation of this device requires some network knowledge. If you can't install it, please let us know or contact a professional.
