WIRELESS BRIDGE
USER MANUAL

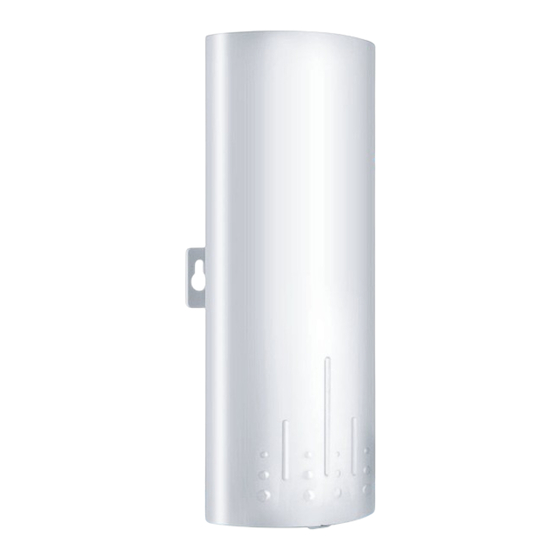

Model: CPE - 966
-
Tips:
Thank you for ordering and using ULNA CPE - 966 Wireless bridge,
please read the manual carefully before use. If there are any
problems during the use, please contact us in time.
The installation of this device requires some network knowledge. lf
you can't install it, please let us know or contact a professional.
Customer Service Email: support01@ulnastore.com
Advertisement
Table of Contents
Related Manuals for ULNA CPE-966
Summary of Contents for ULNA CPE-966
- Page 1 USER MANUAL Model: CPE - 966 Tips: Thank you for ordering and using ULNA CPE - 966 Wireless bridge, please read the manual carefully before use. If there are any problems during the use, please contact us in time. The installation of this device requires some network knowledge. lf you can't install it, please let us know or contact a professional.
- Page 2 OVERVIEW 1. Introduce Ulna CPE966 is a long-distance 5.8G wireless transmission device. lt uses wireless c ommunication technology to transmit network data using air as a medium to perform long-distance point-to-point or point-to-multipoint inter connection. The working data link layer realizes the interconnection of local area networks.
-
Page 3: Specifications
10. Dynamic MIMO power saving mode (DMPS) and APSD； 11. Support 24V POE power supply, easy to install and deploy； 12. Support WEB GUI access management device. 3. Specifications Brand Ulna Model CPE - 966 7620A+7612E+IP1001 Flash 8MByte DRAM DDR2 64MByte Interface 10/100/1000Mbps LAN*1 &... -
Page 4: Package Included
4.Package Included 2 * CPE966 Gigabit Bridge 2 * Gigabit POE Adapter (24V) 2 * Cat 5e Network Cable 2 * Metal Hoop 1 * User Manual 5.Interface Details Digital Tube DC(Unavailable) Reset Button 1000Mbps 100Mbps LAN B-LED A-B Button Gigabit PoE Adapter 1000Mbps LAN Port PoE Port... -
Page 5: Led Indicator Details
6.LED Indicator Details Receiver A Mode Transmitter B Mode LED Light Description After the bridge is connected successfully, the WLAN light will Signal Lights be on, not connected the WLAN light will not be lit. The data connection is successful, the LED light is on, LAN1/LAN2 otherwise, it is not bright. -
Page 6: Quick Start
Quick Start 1. PoE Power Supply The CPE966 wireless bridge adopts a PoE power supply, which is easy to install and manage while saving costs. 1.1. According to the requirements, prepare a long enough network cable （ Recommended within 20 meters, must Cat 5e or up） to connect the wireless bridge and the PoE power supply. -
Page 7: Installation
3.Point to Multipoint Pairing Step: 1 master bridge with 3 slave bridges 1. Switch one unit to A(Master Bridge) and 3 units to B(Slave Bridge); 2. Connect the POE to each unit using the Ethernet cable and plug the POE in; 3. -
Page 8: Wifi Function
3. Connect the PoE adapter PoE to CPE, and LAN to Camera, PC, Router or Switch based on the network topology. The role of PoE is to provide power and data transmission for CPE. 4. The master CPE’ s PoE adapter’ s LAN connection monitors the Internet, and the slave CPE’... -
Page 9: Application Case
6. Application Case 6.1 Case 1: Point-to-point extended network WiFi range suitable for extending the network to second buildings, such as garages, shops, barns,etc. Master Bridge Slave Bridge Router Computer Router Router device(AP mode) 6.2 Case 2: Point-to-point extended of surveillance cameras range Master Bridge Slave Bridge... -
Page 10: Advanced Settings
6.4 Case 4: Point-to-point extended surveillance cameras range Master Bridge Slave Bridge IP Camera Computer IP Camera IP Camera Advanced settings Note: You can enable the device without advanced settings. Computer Access 1. Connect the CPE to the computer Refer to the figure left to connect the CPE to the computer through a PoE adapter and an Ethernet cable. - Page 11 2. Modify your computer's IP address, make your computer's IP and the bridge's IP address be on the same network segment(LAN) so that you can access them. Step 1: Find and open "Open Network and Sharing Center" on your computer. Tips：...
- Page 12 4. On the login screen, the default user name and login password of the wireless bridge is "admin", just entry password login. Note: “admin” is not the password of the WiFi SSID, it is just the password for WEB access. 5.
- Page 13 Digital & IP & WiFi Correspondence Chart You can check the SSID and password through this chart. （Ps:In this chart, SSIDs and Passwords are the default.） support01@ulnastore.com...
-
Page 14: Troubleshooting
Troubleshooting Solution Trouble eason 1. Use WiFi analysis to 1. Wireless interference choose the best channel 2. Distance is too long, 2. CPE should be in the or there are some normal distance, and Packet Latency walls between them avoid the wall 3. - Page 15 1. Check if the PoE adapter or PoE switch work 1. PoE power supply is 2. Check if the PoE port of not working CPE is ok 2. Some problem in 3. Check if Ethernet cable CPE's PoE port is loose if Ethernet cable System LED light 3.
-
Page 16: Technical Support And Service
Technical Support and Service A. Thank you for your order and for using Ulna Wireless Bridge, please read the manual c arefully before use. If there are any problems during the use, please contact us in time; B. The installation of this device requires some network knowledge. If you can't install it, please let us know or contact a professional.
