Think ahead SR-2809 Manual

RF RGB Controller(2 zones)
SR-2809 with SR-1005xx series

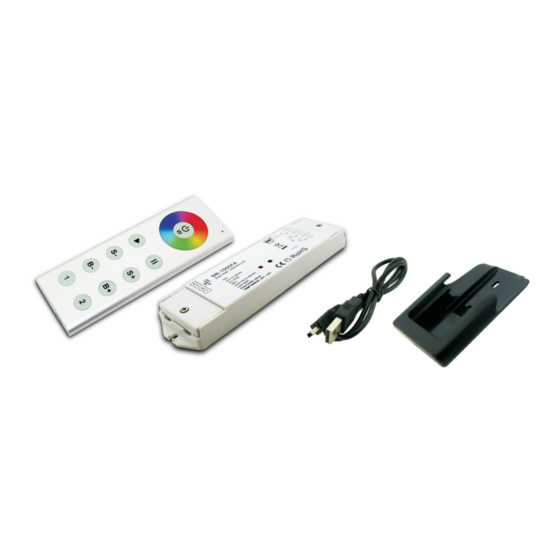

Product introduction
2 Zones controlled separately and synchronously
1 changing mode
Parameter
Remote
Part No. Operation Voltage
SR-2809 3.6VDC
Receiver
Iuput Voltage
Part No.
SR-1005TA 12-36VDC
SR-1005FA 12-36VDC
SR-1005FA3 12-36VDC
SR-1005FA7 12-36VDC
Product Size
114.2
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 43.8x131.6x24.5 RF Wireless
Current Output
3x3A Constant voltage
3x(36-108)W
3x5A 3x(60-180)W
Constant voltage
3x350mA 4x(4.2-12.6)W Constant current
3x700mA 4x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Brief introduction of buttons
Touch wheel for selecting
R/G/B color
Long push for ON/OFF
Short push for WW/CW/NW
Slow down the speed
when color is changing
Brightness down
Wiring diagram
REMARKS
Remarks
Operation
1. Receiver learning ID
Initial using RF Touch RGB remote controller must learn the ID of the receiver, the purpose of learning ID code
is to make a certain receiver which can correspond the sender.
Press the ID learning button
on the sender, press the number that you want this receiver to be.
Attention: The receiver ID learned by touching color wheel
function button
of receivers is to ensure synchronous color changing for different zones.
Working status indicator
Play Pause
Slow up the speed
when color is changing
Brightness up
Zone 1-2 is for selecting receiver's ID and ID itself
to turn ON/OFF
left indicator will be on when charging, middle indicator
is for reset switch, right one is for USB socket.
Power Supply
110V-230VAC
12-36VDC
SR-1005FA
R-
G-
B-
SR-1005FA
R-
G-
B-
SR-1005FA
R-
G-
B-
on the receiver, the ID learning indicator
is defined as MASTER receiver.The purpose of learning these two kinds
is on, then press any button
is defined as SLAVE receiver by pressing
