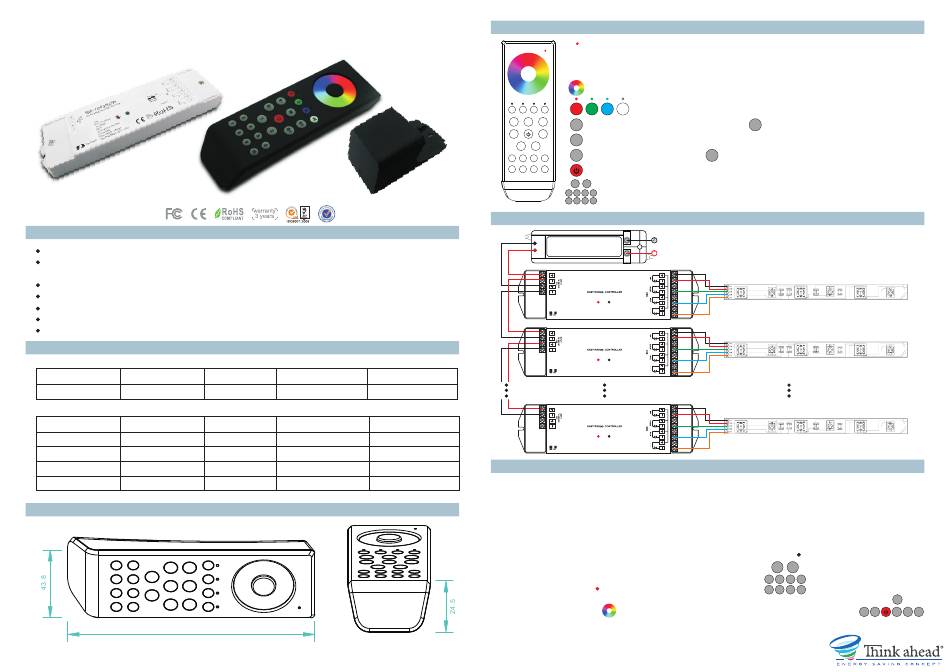

Think ahead SR-1003 Series Instructions

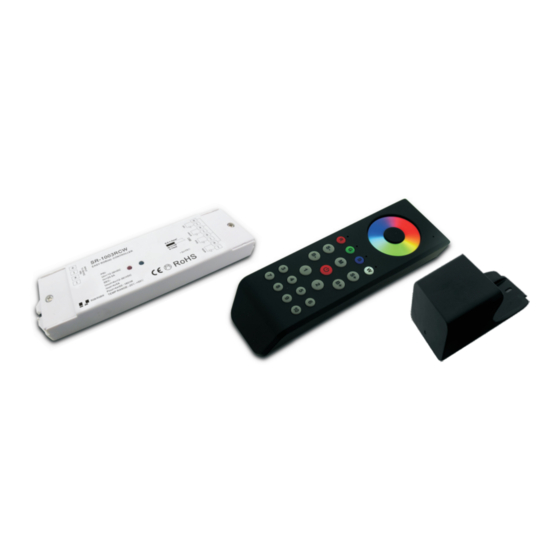

RF RGBW Controller(10 Zones)
Model:SR-2806 with SR-1003 series
Feature
High sensitive & high stable touch color wheel, fast & precise color control.
Enable to control 10 zones separately. Each zone can switch on/off separately.
Changing modes of 10 zones can be synchronized without any confusion.
10 changing modes. Enable to stay at any color under situation of color changing modes.
Adjustable changing speed with 8 levels, quickest speed is 4S, slowest speed is 256S.
Controlling RGBW or RGBY 4 colors that achieve more selectable colors than traditional RGB control.
To adjust brightness of each color independently that can achieve milions of changing colors
To work with power repeater to expand output unlimitedly.
Parameter
Remote
Operation Voltage
Part No.
SR-2806 4.5VDC
Receiver
Iuput Voltage
Part No.
SR-1003RCW 12-36VDC
SR-1003RCWEA 12-36VDC
SR-1012RCW 12-36VDC
SR-1022RCW 12-36VDC
Product Size
131.6
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 43.8x131.6x24.5 RF Wireless
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Brief introduction of buttons
R
R G B W
S- M S+
S-
B- B+
M
1 2
B-
3 4 5 6
7 8 9 10
1
3
7
Wiring diagram
Power Supply
12-36VDC
RGB/RGBW
RGB/RGBW
Remarks
Remarks
RGB/RGBW
Operation
1. Install battery
Initial using easy RGB(W) remote controller, open the battery cover on the back of the sender, load 3pcs 7 AAA
(1.5V) batteries. Please pay attention to the battery's negative and positive, otherwise it will fail to work.
2. Receiver learning ID
Initial using easy RGB(W) remote controller must learn the ID of the receiver, the purpose of learning ID code is
to make a certain receiver which can correspond the sender.
The method of Receiver learning ID is as follows: press the ID learning button
the ID learning indicator
number that you want this receiver to be, E.g. If you want this receiver to be No. 1, please press button
first, then touch the wheel
etc. to transmit signal to the Sender, after Receiver receives the signal from the sender, the indicator will flash a
few times and then turns off, then receiver ID is activated. If the ID activation is failed at the first time, please
repeat the previous procedures.
Working status indicator, the sender is in dormant status when the indicator is off. The
sender is under working when the indicator is flashing rapidly. If the indicator continues
flashing at the frequency of 1 second, it indicates that the sender batteries low and
needs to replace new batteries.
Touch wheel for selecting R/G/B colors
G B W "R" "G""B" "W"button and indicator
Speed down when color is changing S+
Multifunction button, used for selecting, Synchronous or asynchronous mode
Brightness down Brightness up
B+
Multifunction button, used for turn ON/OFF and white output
2
4 5 6
Figure 1-10 is for selecting receiver's ID and ID itself to turn ON/OFF
8 9 10
110V-230VAC
SR-1003RCW
SR-1003RCW
SR-1003RCW
is on, then press one of the number button
, or you can press any functional button on the sender, such as
Speed up when color is changing
on the sender,
1 2
3 4 5 6
on the sender, press the
7 8 9 10
1
B- B+ S- S+ M
