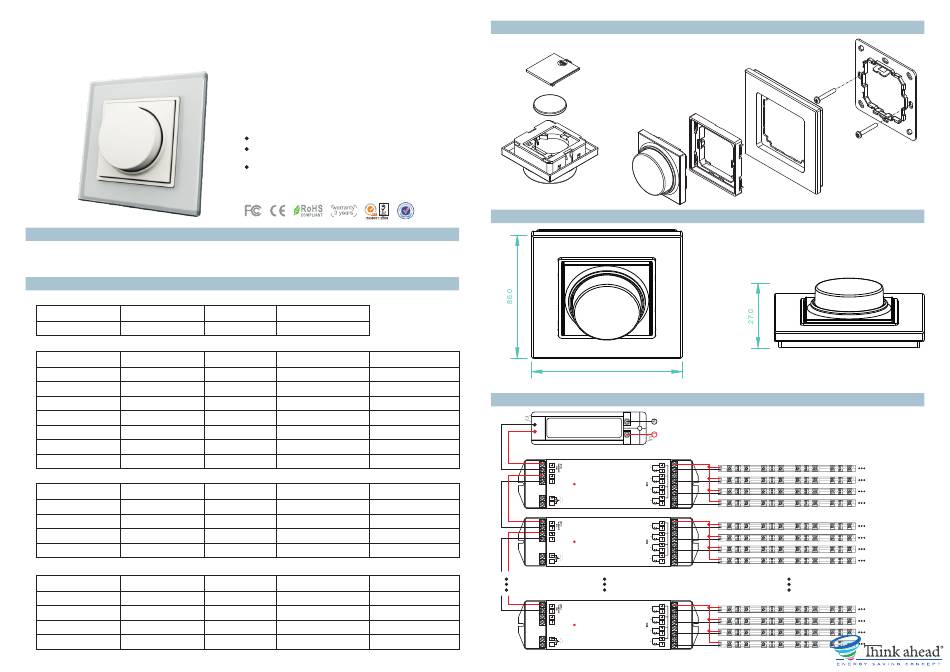

Think ahead SR-2805ST Quick Start Manual

RF Single color & CTT & RGB wall mount/ stick controller
Feature

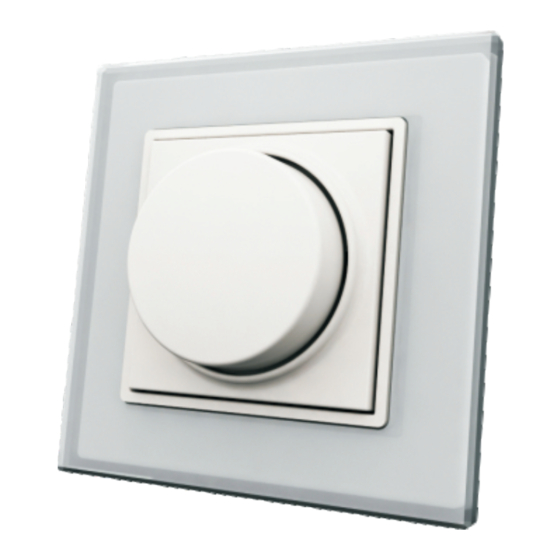

SR-2805ST is a RF wall sticks/ mounted controller for single color, CCT or RGB LED lighting. Each white can
achieve 256 levels brightness adjustment. Key part can be uninstall every easily to change battery and frames
from other factory.
Parameter
Remote
Operation Voltage
Part No.
SR-2805ST 3VDC
Receiver for single color
Iuput Voltage
Part No.
SR-2501N 12-36VDC
SR-2501NEA 12-36VDC
SR-2502N 12-36VDC
SR-2503N 12-36VDC
SR-2501NS 12-36VDC
SR-2502NS 12-36VDC
SR-2503NS 12-36VDC
Receiver for CCT
Iuput Voltage
Part No.
SR-2501M 12-36VDC
SR-2501MEA 12-36VDC
SR-2502M 12-36VDC
SR-2503M 12-36VDC
Receiver for RGB
Iuput Voltage
Part No.
SR-2501RGB 12-36VDC
SR-2501RGBEA 12-36VDC
SR-2502RGB 12-36VDC
SR-2503RGB 12-36VDC
SR-2805ST
3M glue stick on the wall or Screw mounted on the wall
Work with corresponding receivers to control single
color, CCT or RGB LED lighting.
Push button on the receivers.
Operation
Remarks
Frequency
434MHz/868MHz RF Wireless
Current Output
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W Constant voltage
4x350mA Constant current
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W Constant current
1x8A 1x(96-288)W
Constant voltage
1x350mA 1x(4.2-12.6)W Constant current
1x700mA 1x(8.4-25.2)W
Constant current
Current Output
4x5A 4x(60-180)W Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA 4x(4.2-12.6)W Constant current
4x700mA 4x(8.4-25.2)W
Constant current
Current Output
3x5A Constant voltage
3x(60-180)W
3x8A 3x(96-288)W
Constant voltage
3x350mA Constant current
3x(4.2-12.6)W
3x700mA 3x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Installation
Product Size
Remarks
Wiring diagram
Power Supply
12-36VDC
Learning Key
Remarks
GND
Learning Key
GND
Remarks
Learning Key
GND
86.0
110V-230VAC
SR-2501N
RF Easy Dimmer
SR-2501N
RF Easy Dimmer
SR-2501N
RF Easy Dimmer
