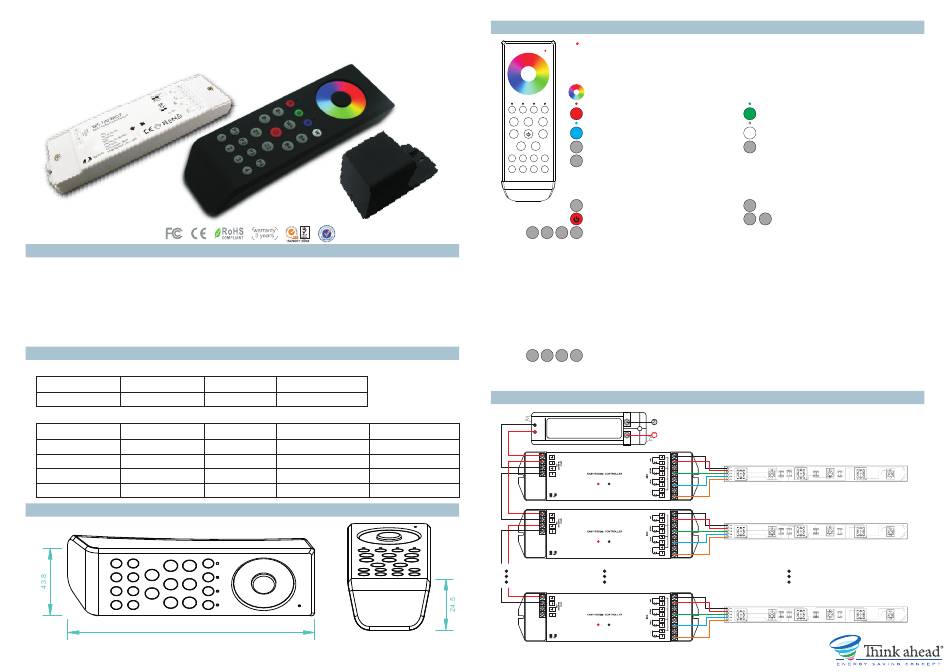

Think ahead SR-2806T Quick Manual

RF RGBW Controller(2 Zones)

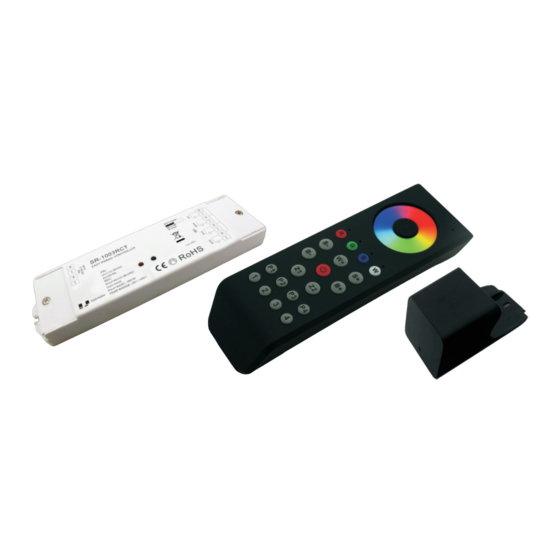

SR-2806T with SR-1003RCT series
Product introduction
Easy RGB(W) remote controller is a wireless color controlling system that consists of a sender
and a receiver or several receivers. By selecting switch status, you can set the system as RGB 3-channel
output, or RGBW 4-channel output. Using Easy RGB(W) remote controller, you can get whatever color you
want; you can choose any color from RGB(W) to adjust so as to mix more than 100 mi l l ion kinds of colors.
With built-in 10 kinds of color changing modes, you can easily switch color changing modes and adjust speed
and brightness. "Function Pause" enables RGBW LED to stay at your favorite color under the situation of color
changing modes, which operation is simple but functional.
Parameter
Remote
Operation Voltage
Part No.
SR-2806T 4.5VDC
Receiver
Iuput Voltage
Part No.
SR-1003RCT 12-36VDC
SR-1003RCTEA 12-36VDC
SR-1012RCT 12-36VDC
SR-1022RCT 12-36VDC
Product Size
131.6
Operation DIMENSIONS
Frequency ø/h (mm)
434MHz/868MHz 43.8x131.6x24.5
Current Output
4x5A 4x(60-180)W Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x350mA 4x(4.2-12.6)W Constant current
4x700mA 4x(8.4-25.2)W
Constant current
Think ahead ESC GmbH I Anzengruberstr. 39 I A-9020 Klagenfurt a. W. I T +43 (0)463 21 09 46 I office@think-ahead.at I www.think-ahead.at
Brief introduction of buttons
R G B W
R
S- W+ S+
B
B- B+
Z1 Z2 S-
P1 P2 P3 P4
M
1 2 3 4
B-
P1 P2 P3 P4
1 2 3 4
Wiring diagram
Power Supply
Remarks
12-36VDC
RGB/RGBW
RGB/RGBW
RGB/RGBW
Working status indicator, the sender is in dormant status when the indicator is off. The
sender is under working when the indicator is flashing rapidly. If the indicator continues
flashing at the frequency of 1 second, it indicates that the sender batteries low and
needs to replace new batteries.
Touch wheel for selecting R/G/B colors
"R"button and indicator
G
"G"button and indicator
W
"W"button and indicator
"B"button and indicator
Speed down when color is changing S+ Speed up when color is changing
With this button it shall be getting three shades of white color (cold white, neutral white
and warm white; a mixture of RGB colors), and to get white color while using the
controller in RGB-mode.
This function needs to be available in RGBW-mode as well to get a versatile white color
range.
Brightness down Brightness up
B+
Turn ON/OFF
Z1 Z2
4 programs.
Each program shall be speed selectable from 20 seconds (most fast) to 15 minutes
(slowest). When you press the button first, the program starts, after a second press, it
pauses, then after pressing again, the program continues.
The programs shall include the following:
- smooth color change (red, yellow, green, turquoise, blue, pink, white)
- smooth change of warm color range (red, yellow, pink, hot pink and mixed warm
colors)
- smooth change of cold color range ( blue, green, turquoise, light blue, white,mixed
cold colors)
- hard color change (red, orange, yellow, green, light blue, dark blue, pink)
4 buttons for storable colors. The user can chose his 4 favorite colors by using the
color-wheel or the color change programs and can save each one by pressing the
particular button for 3 seconds.
110V-230VAC
SR-1003RCT
SR-1003RCT
SR-1003RCT
2 zones
