Kozi 100 Removal And Installation

Heat shields
Hide thumbs Also See for 100:

Advertisement

Table of Contents

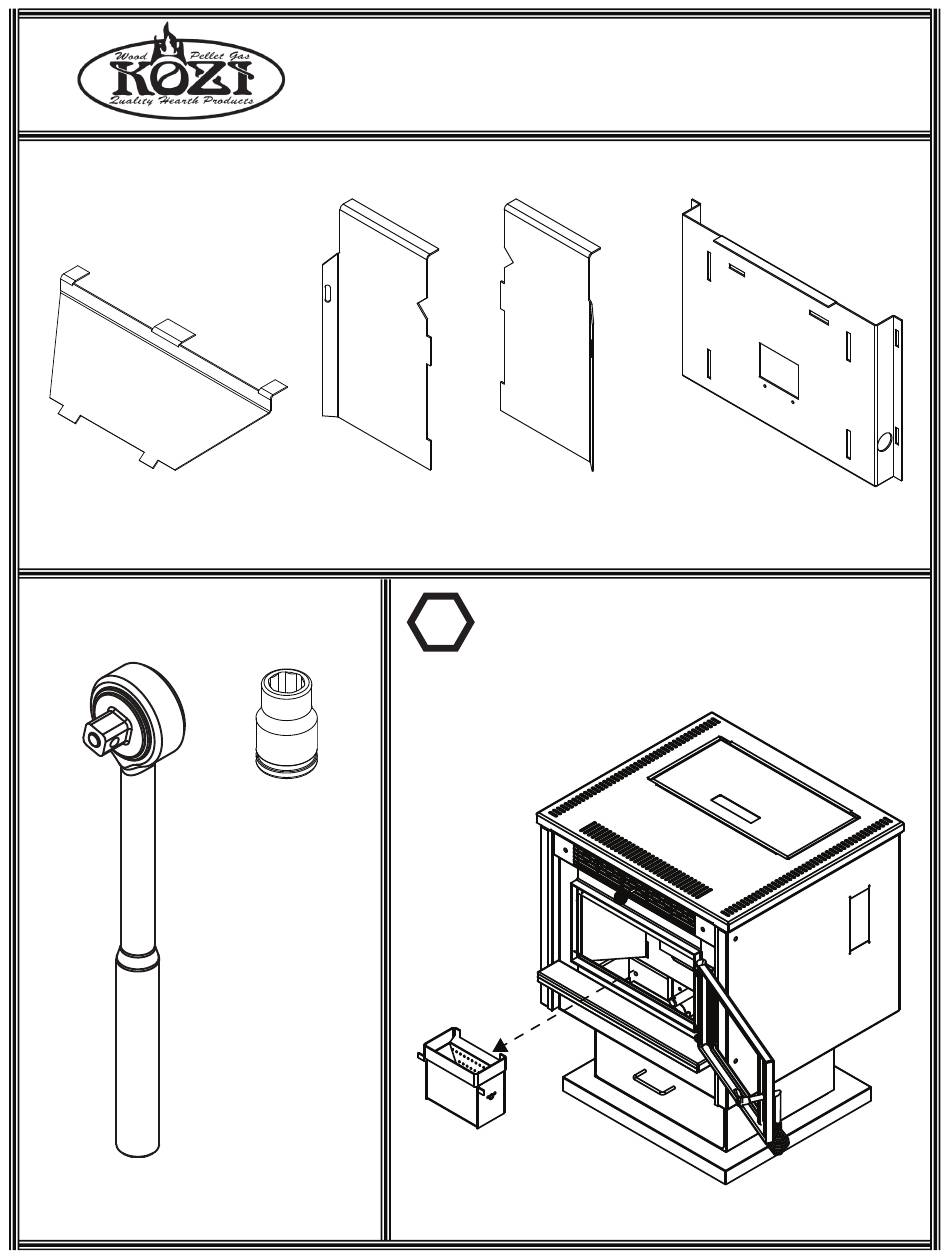

THE INTERIOR HEAT SHIELDS INCLUDE:
TOP HEAT SHIELD

TOOLS REQUIRED:

SOCKET WRENCH
REMOVAL AND INSTALLATION OF KOZI
MODEL 100/KSH 120 HEAT SHIELDS
LEFT SIDE
HEAT SHIELD
3/8" SOCKET
RIGHT SIDE
HEAT SHIELD
OPEN FRONT DOOR AND REMOVE THE
1
BURN POT STAND ASSEMBLY FROM THE
STOVE.
BACK HEAT SHIELD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kozi 100

Summary of Contents for Kozi 100

  • Page 1 REMOVAL AND INSTALLATION OF KOZI MODEL 100/KSH 120 HEAT SHIELDS THE INTERIOR HEAT SHIELDS INCLUDE: TOP HEAT SHIELD LEFT SIDE RIGHT SIDE BACK HEAT SHIELD HEAT SHIELD HEAT SHIELD OPEN FRONT DOOR AND REMOVE THE TOOLS REQUIRED: BURN POT STAND ASSEMBLY FROM THE STOVE.
  • Page 2 PUSH TOP HEAT SHIELD UP, AND THEN PULL THE TOP HEAT SHIELD OUT OF THE STOVE AS SHOWN BELOW. PUSH TOP HEAT SHIELD UP PULL TOP HEAT SHIELD REMOVE THE BOLTS HOLDING THE SIDE HEAT SHIELDS IN PLACE USING A 3/8”...
  • Page 3 ONCE THE BOLTS HAVE BEEN PULL THE BACK HEAT SHIELD REMOVED, YOU WILL BE OUT SLOWLY. REMOVE AUGER ABLE TO PULL THE SIDE HEAT CHUTE GASKETS TO INSPECT SHIELDS OUT. (REPLACE IF NEEDED). AUGER CHUTE GASKETS REMOVE SIDE HEAT SHIELDS FROM BURN BACK HEAT CHAMBER.
  • Page 4 PUT THE AUGER CHUTE GASKETS AND NEW BACK HEAT SHIELD AS SHOWN BELOW. ENSURE THE AUGER CHUTE GASKETS ARE INSTALLED CORRECTLY TO PREVENT AIRFLOW PROBLEMS. AUGER CHUTE GASKETS ENSURE BOTTOM EDGE OF AUGER CHUTE GASKETS SIT ON TOP OF THESE SCREWS NEW BACK HEAT SHIELD SECURE THE BACK HEAT SHIELD, USING THE SOCKET AND SOCKET...
  • Page 5 PUT NEW SIDE HEAT SHIELDS PUT THE TOP HEAT SHIELD BACK IN THE CORRECT POSITION IN IN PLACE AS SHOWN. THE BURN CHAMBER PUT TOP HEAT SHIELD BACK IN BURN PLACE NEW SIDE HEAT SHIELDS CHAMBER INTO BURN CHAMBER SECURE THE SIDE HEAT SHIELDS IN PLACE WITH BOLTS AS SHOWN BELOW.
  • Page 6 PUT THE BURN POT ASSEMBLY BACK INTO THE STOVE. ENSURE THAT THE BURN POT AND BURN POT STAND ARE CLEAN AND FREE OF ASH OR ANY OTHER DEBRIS. KOZI (Division of APR Industries Ltd.) 1354 Waverley Street, Winnipeg, Manitoba, Canada, R3T 0P5 Phone: (204) 452-9907, Fax: (204) 453-2747...

This manual is also suitable for:

Ksh 120
