Follow these instructions to properly install your new KOZI BayWin Glass Gasket Kit.

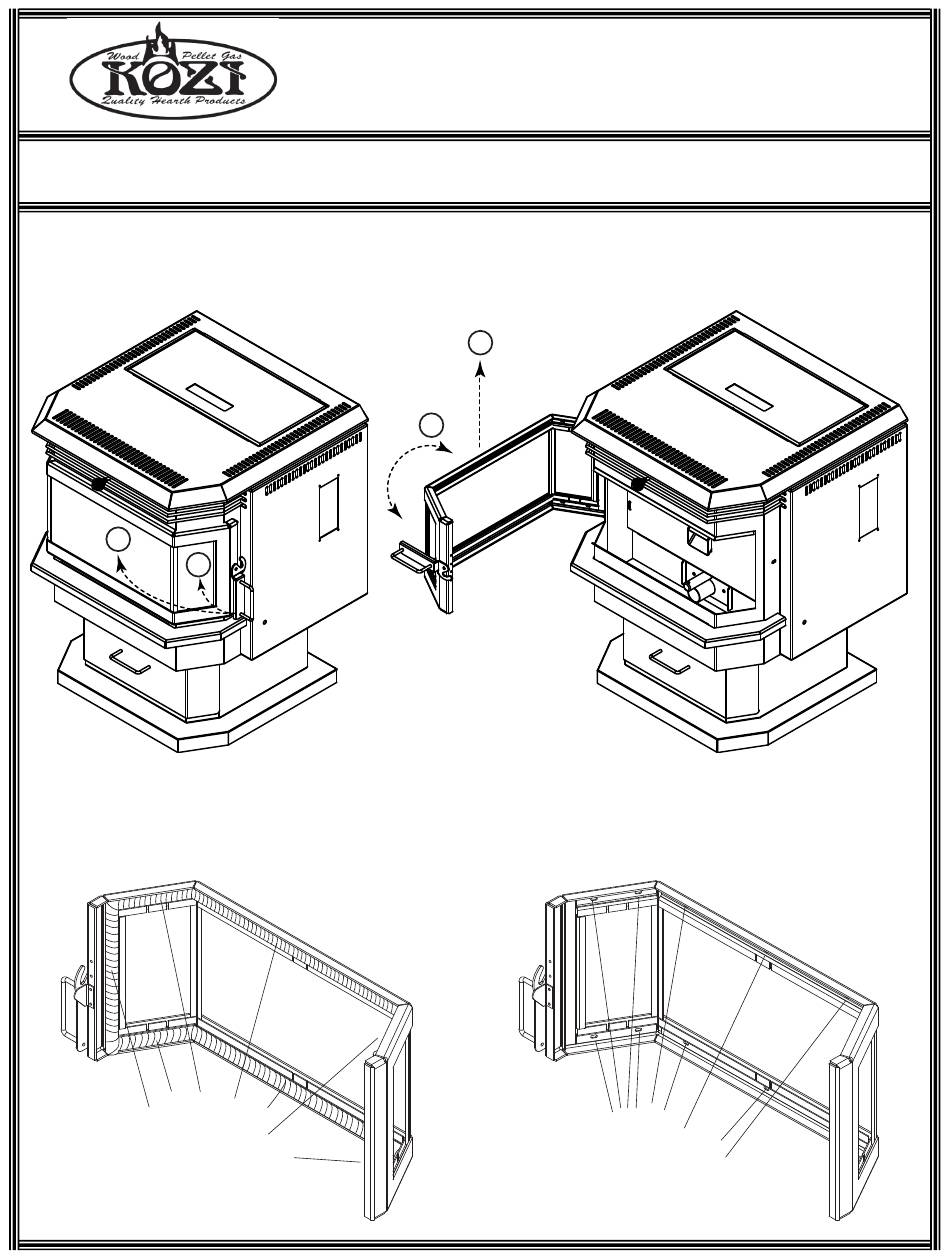

1. Lift the latch (A) to open up the front door and swing it wide open (B). Hold onto the door
and twist (C) and lift (D) the door at the same time to unhinge it off of the pellet stove as
shown below.
B
A
2. Remove the rope gasket on the door to
access the brackets securing the glass in
place.
REMOVE ROPE
GASKET TO
ACCESS BRACKETS
SECURING GLASS
KOZI BAYWIN GLASS
GASKET KIT
INSTALLATION
D
C
3. Remove all the nuts securing the brackets
holding the glass in place.
Revised Nov 2013
Printed In Canada
REMOVE
NUTS SECURING
GLASS BRACKETS
IN PLACE
