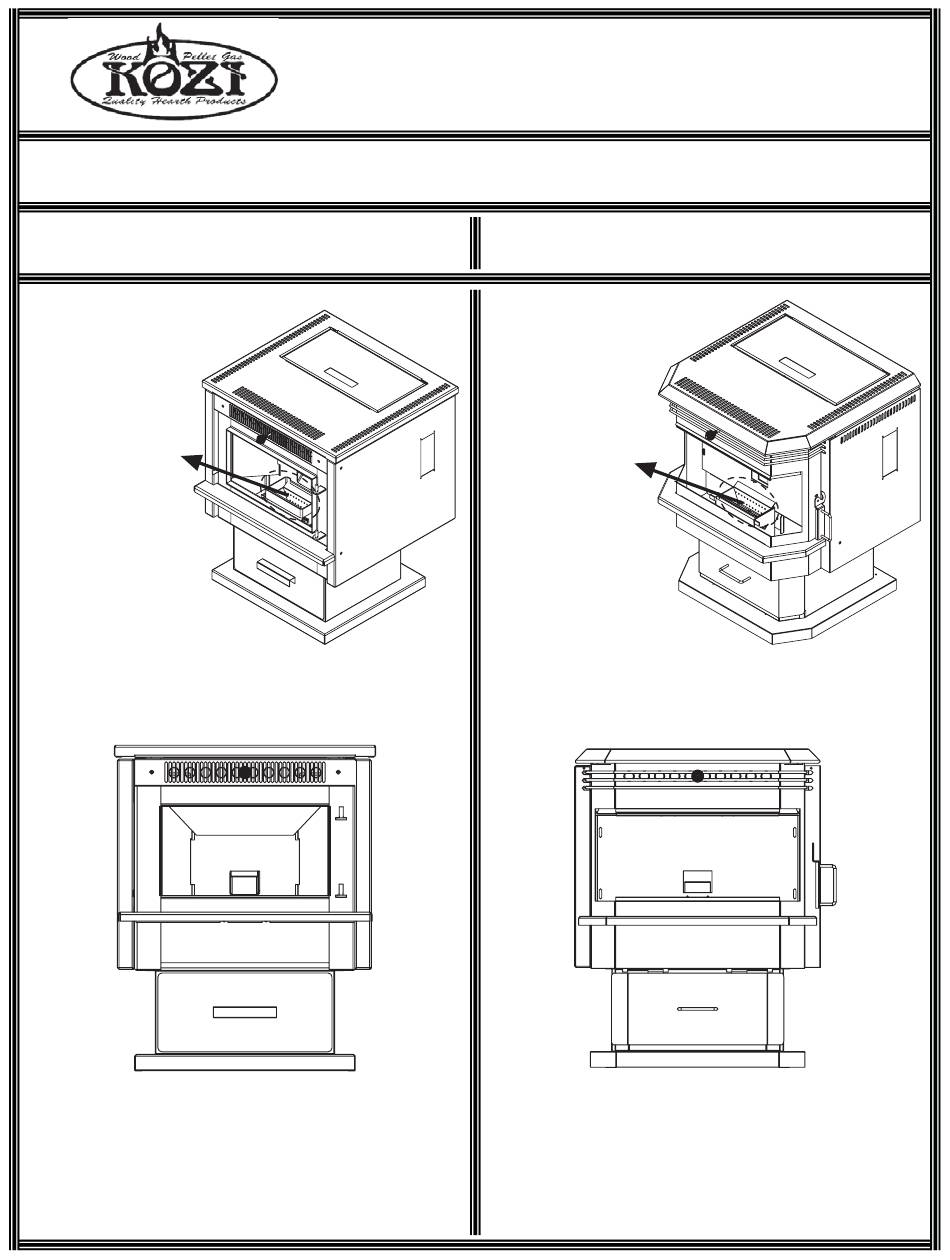

Follow these instructions to properly install your new KOZI Pellet Stove Auger Chute Gasket Kit.
XL 100, KSH 120
REMOVE SPLASH
GUARD, BURN POT
AND BURN POT STAND
1. Remove splash guard, burn pot and burn
pot stand from the pellet stove.
2
2. Remove interior heat shields. Remove in
order:
1 - Top Heat Shield
2 - Side Heat Shields
3 - Back Heat Shield
KOZI PELLET STOVE
AUGER CHUTE GASKET
KIT INSTALLATION
1
3
2
BayWin
REMOVE SPLASH
GUARD, BURN POT
AND BURN POT STAND
1. Remove splash guard, burn pot and burn
pot stand from the pellet stove.
2. Remove back heat shield from stove.
Revised Nov 2013
Printed In Canada
1
Advertisement
Table of Contents
Related Manuals for Kozi XL 100
Summary of Contents for Kozi XL 100
- Page 1 KOZI PELLET STOVE Revised Nov 2013 AUGER CHUTE GASKET Printed In Canada KIT INSTALLATION Follow these instructions to properly install your new KOZI Pellet Stove Auger Chute Gasket Kit. XL 100, KSH 120 BayWin REMOVE SPLASH REMOVE SPLASH GUARD, BURN POT...
- Page 2 3. Install the auger chute gasket as shown. 3. Install the auger chute gasket as shown. Place the thin gasket (1) fi rst and the thicker Place the thin gasket (1) fi rst and the thicker gasket (2) second. gasket (2) second. BOTTOM EDGE BOTTOM EDGE OF AUGER CHUTE...
