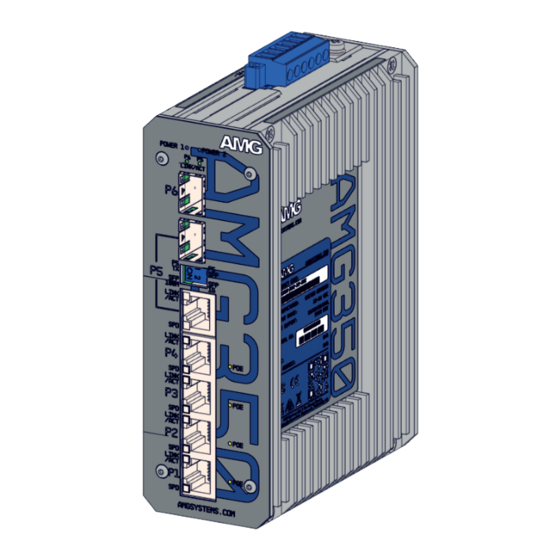

AMG Systems AMG350-4GBT-1C-1S-P240 Installation Manual

INTERFACE CONNECTIONS
DIP SWITCH SETTINGS
Switch
DIP Switch 1
DIP Switch 2
*Both SFP ports must operate at the same speed. It is not possible to mix 100Mb & 1Gb SFP
modules. Please ensure that the SFP port speed is set to the correct speed of your installed SFP's.
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631)
D33685-00
www.amgsystems.com
① Insert the Cat5/6 cable into the
RJ45 port.
② Ports 1-4 support IEEE802.3bt PoE
output (max 90W per port). 240W
max total PoE budget.
③ If a PD device is connected the
respective PoE LED will turn on.
④ Insert the fiber patch cable into the
SFP module.
Note
When a DIP switch setting is changed
the unit must be power cycled for the
changes to be applied.
Position Description
P5 TX Port 5 operates as an RJ45 port
P5 SFP Port 5 operates as an SFP port
SFP ports 5 & 6 forced to 100Mb
SFP 100M
speed*
SFP ports 5 & 6 forced to 1Gb
SFP 1G
speed*
AMG350-4GBT-1C-1S-P240 AMG350-4GBT-1C-1S-P240
Industrial Unmanaged Switch Industrial Unmanaged Switch
amgsystems.com
Installation Manual - Hardware Installation Manual - Hardware
