DEVICE RESET PROCEDURE
③ Power cycle the switch with the loop-back
cable in place and the switch will reboot and
apply the factory default configuration settings.
④ Remove the loop-back cable and re-connect
the existing Ethernet and optical patch cables.
CONNECTING TO THE SWITCH
To access the full software user guide for this product
please visit the product page using the QR code
opposite or the direct link below:
amg-support.com/AMG510-24GAT-4XS-RP540
AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, Bedfordshire, SG18 8QB, UK
T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com
D39216-00
www.amgsystems.com
① Remove all connections from
the RJ45 & SFP ports.
② Insert an Ethernet patch cable
between ports 1 & 2 on the switch.
Web GUI
Default IP Address:
192.168.1.101
Username:
admin
Password:
admin
Console CLI
RJ45 to DB9 Cable
115200,8,N,1

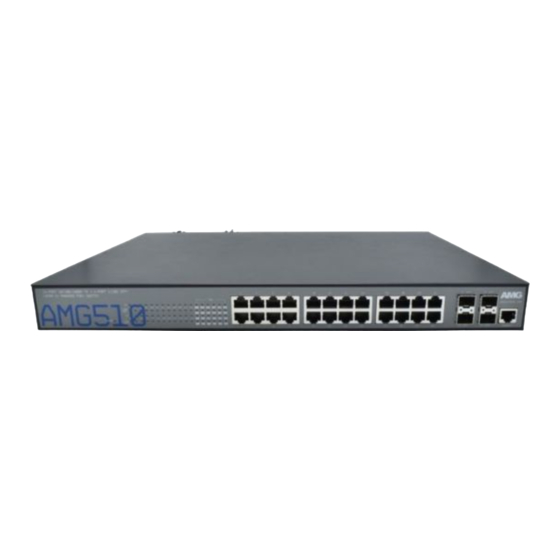

AMG510-24GAT-4XS-RP540
10Gb Layer 2+ Ethernet Switch
amgsystems.com
Installation Manual - Hardware
