AMG Systems AMG350 Series Installation Manual

AMG Systems AMG350 Series Installation Manual

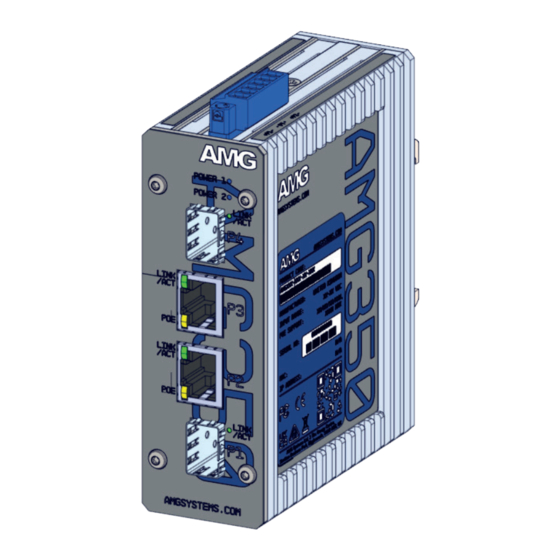

Industrial unmanaged switch

Advertisement

Quick Links

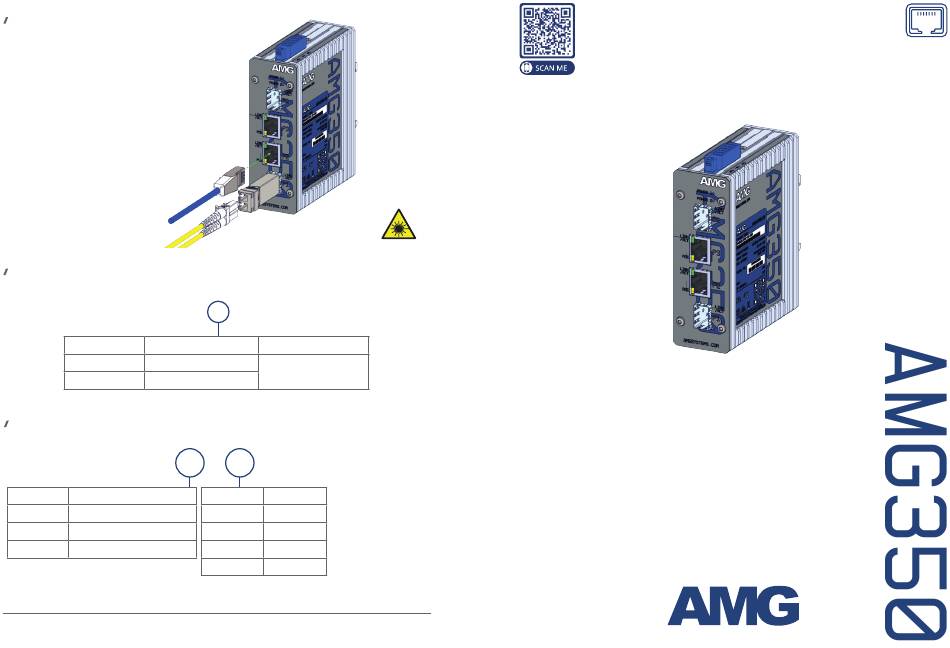

INTERFACE CONNECTIONS
Insert the SFP module into the SFP
slot.
Insert the Cat5/6 cable into the
RJ45 port.
③ Insert the fibre patch cable into the
SFP module.
PORT SPEEDS
Example part code:
AMG350-2GAT-2S-P60
Character
RJ45 Port Speed
F
10/100 Base-T(X)
G
10/100/1000 Base-T(X)
*SFP's supplied separately. Refer to AMG SFP Datasheet for available models
POE CAPABILITIES
Example part code:
AMG350-2GAT-2S-P60
Characters
PoE Standard Supported
None
Non-PoE Model
AT
IEEE 802.3at 30W Port
BT
IEEE 802.3bt 60/90W Port
Check the product label to determine
the PoE power supported on each port
and the units total maximum PoE budget.
AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com
AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631)
D33208-02
SFP* Port Speed
100/1000 Base-FX
Ensure the PSU size
used is at least equal
to the maximum PoE
budget figure.
Characters
PoE Budget
IEEE 802.3at Models
P30
30W Max
Type 1 & 2 PoE support
P60
60W Max
Mode A PSE only
P90
90W Max
IEEE 802.3bt Models
P180
180W Max
Type 1, 2, 3 & 4 PoE
support. Mode A
and/or Mode B PSE
www.amgsystems.com
Industrial Unmanaged Switch
Industrial Unmanaged Switch
amgsystems.com
AMG350 Series
AMG350 Series
Installation Manual - Hardware
Installation Manual - Hardware

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMG350 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AMG Systems AMG350 Series

  • Page 1 Mode B PSE and the units total maximum PoE budget. AMG Systems Ltd. 4 Pioneer Way, Castleford, WF10 5QU, UK T: +44 (0) 1767 600 777 E: technical@amgsystems.com amgsystems.com AMG Systems Inc. 62 Spring Hill Road, Trumbull, CT 06611, USA T: +1-855-AMGPOE1 (855-264-7631) D33208-02 www.amgsystems.com...
  • Page 2 DIN RAIL MOUNT INSTALLATION SURFACE MOUNT INSTALLATION IP RATING ① Remove the DIN rail clip by unscrewing the two fixing screws as shown. ② Attach the included wall mount brackets with the To maintain the units IP40 rating any provided 4 x M3 screws as screw holes that are not used should still shown.

This manual is also suitable for:

Amg350-2gat-2s-p60
