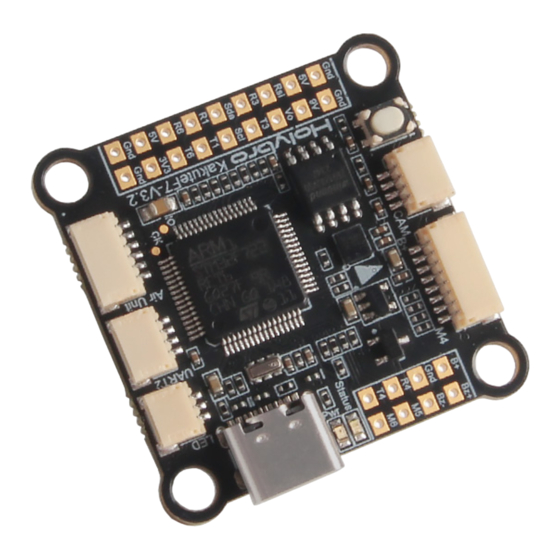

  • Page 1 Kakute F722 Manual 11037# Kakute F7 mini 11037# Kakute F7 mini 11037# Kakute F7 mini...
  • Page 2 Overview • High-performance STM32 F722 MCU with speeds up to 216MHz. • ICM42688P gyroscope, independent low-noise power supply. • Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port. • Built-in analog video OSD, 16 Mbytes black box, •...
  • Page 3 o INAV Target: KAKUTEF7MINIV3 Pinout Diagram Top of board Function 9v output (2.0A max) 5v output (2.0A max) Video output to video transmitter Video input from FPV camera Ground SDA, SCL C connection (for peripherals) R1, T1 UART1 RX and TX R2, T2 UART2 RX and TX R3, T3...
  • Page 4 PDB or 4-in-1 ESC. Your PDB or 4-in-1 ESC may have another vBat pad that is specifically designed for powering an accessory like the Kakute F722. It’s simpler to use a dedicated pad or wire, rather than soldering to the main battery + pad.
  • Page 5 Analog Camera Connector Pin4→Pin1 Pin4 Camera Control pin Pin3 Video input from FPV camera Pin2 Pin1 Camera 5v power supply UART2 Connector Receiver Pin1 Pin2 Receiver 5v power supply UART2 RX Pin3 Pin4 UART2 TX Pin1→Pin4 P a g e...
  • Page 6 LED Connector Pin1 Pin2 5v power supply Pin3 WS2812 addressable LED signal wire Pin1→Pin3 P a g e...
