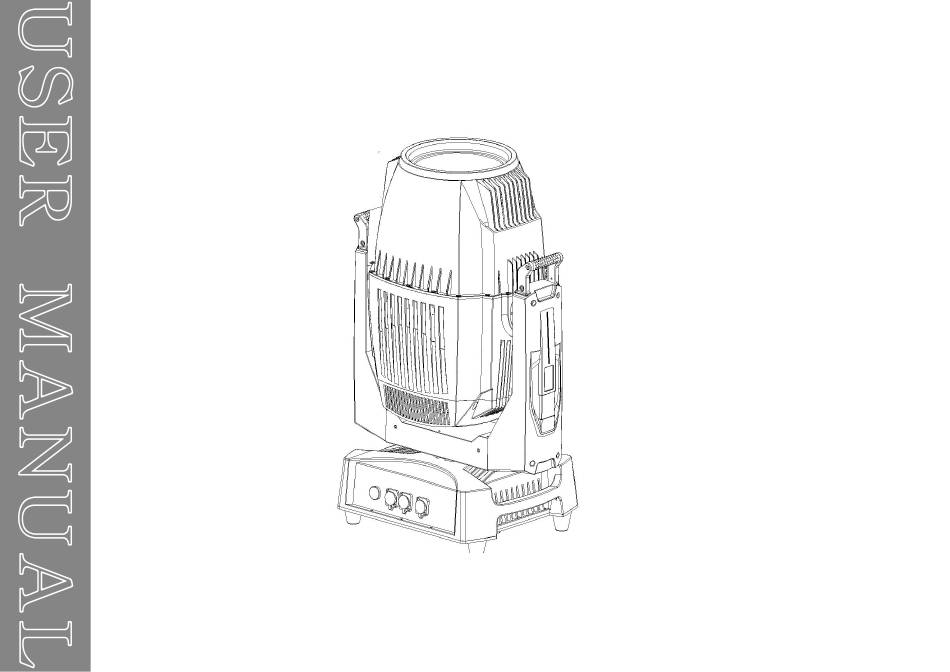

- Page 1 HT-380BSW 380W BEAM SPOT WASH MOVINGHEAD IP65 USER MANUAL...
- Page 2 Foreword Thanks for choosing product of 380W Beam Spot Wash Moving Head Light Waterproof, it is our newest the latest independent research and development of a high-grade quality product. With perfect combination of international advanced electronic control technology and excellent human chemical.
-
Page 3: Table Of Contents
Product Catalog 1. Safety Instructions--------------------------------------------1-2 2. Technical Parameters-------------------------------------------3 3. Schematic Lighting Components-----------------------------4 4. Packing And Shipping----------------------------------------4-5 5. Safety Standard Installation-------------------------------6-10 6. AC Power-------------------------------------------------------11 7. Lamp----------------------------------------------------------12-13 8. Function-----------------------------------------------------14-15 9. Display Setting----------------------------------------------16-33 10. Failure Analysis And Resolution--------------------------------33-41 11. Cleaning------------------------------------------------------------------41 12. Photometrics Diagram------------------------------------------------43... - Page 4 1.Safety Tips Please read the guide book that contains the installation, use and maintenance of important information Before using this product, please observe carefully the product is not unwrap or damaged during transportation. As a result of damage during transportation, please do not use the lights, and contact with the dealer or manufacturer.
- Page 5 rather than the lamp body. This product is suitable for a maximum temperature of 45 degrees Celsius, when the surrounding environment is higher than 45, please do not use this product. Do not touch when the product is running, to prevent bruising hands. Problems happens when operating performances, should immediately stop using the lights.
-
Page 6: Technical Parameters
2.Technical Parameters DMX Channel: 24CHs Control model: DMX512, RDM LED LCD Display+ Press button, English/Chinese Light Source: Osram 371W Lamp XY axis super fast and ultra silence 3-phase step motors Color temperature is 8000K, life span is 1500Hs 14 Color with white, semi color effect 11 fixed gobo with 4 open Prism: 8+16 prism, can combine dynamic rotating effect Optical lens: Advanced optical system... - Page 7 15pcs super silence motors, 2pcs pan&tilt 3-phase step motors, 16bit. Housing:High temperature resistant, UV resistant and antioxidant alloy plastics+ National standard die casting Frost Angle: 18° Power Consumption:500W IP Rate:IP65 Weight: 31.7KG Size: 419*326 *662.6mm Extended functions:support RDM,wireless signals is optional.
-
Page 8: Packing And Shipping
3.Technical Parameters 418.5 Lens ring Light arm 251.9 Die-casting body 181.2 Body back cover Button Wireless plug Waterproof powercon IN Display Waterproof 3 pin input Waterproof 3 pin ouput 4. PACKING AND SHIPPING 380W Beam Moving Head IP65 is packaged by carton or standard 1in1 flight case, accessories items are as below... - Page 9 Name Quantity unit User manual piece Signal line piece safe rope piece Bracket and Clamp piece Power line piece 4.2 Packing 1. Disconnect the power supply so that the lamp to cool completely before packaging, at least 15 minutes or more.
- Page 10 4.3 Unpacking 1. Open the box and bag 2. Seizing the equipment handles, lifting and carrying away the light from the box .Or opening the flight case, placing lift boom close to the light base, then equipping clamps on light base bottom. Tightening quick install locks. At last rising away boom to the top of the lamp from flight case, put the flight case away.
- Page 11 The working temperature for the equipment is available between -20°and 45°. Do not use the equipment outside of this environment. Don’t stand under the light when the light is installed, dismantled, moved or serviced. The operator must ensure that the fixtures are securely connected. Installing the light after professionals approving electrical parameters make sure that these installation must be checked at least once per year by experts 5.1 Hook Installation 480 beam light can be placed on the stage or on a stand in any direction,quick lock system can quickly and easily...
- Page 12 3. If truss can be lifted the equipment can be directly clamped from flight case and locked fixture base. Then hung on the light and fixed it. Before rising the light to right height, connect the power line and signal line. Note: Lights be placed vertically upward, the shortest distance between working lights must be more than or equal 900mm, lighting installation layout as following.
- Page 13 Caution: Signal line connections is X-type connector X-type connector----- If the external flexible cable or cord of this light is damaged, please replace the professional cable or cord from the manufacture or its agent. DMX of lights input and output connects to a 3&5-pin XLR, first pin is grounded, second negative signal is second pin, third pin connects to the positive polarity signal, the fourth and fifth is empty.
- Page 14 The controller connects to the nearest input XLR 3-pin, then from the output of the device connects to the input of the next device, continuous connection one by one, the final output data cable terminal equipment plug one end into the terminal. If the signal transmission is long-distance, 512 signal amplifier must be added.
-
Page 15: Ac Power
6. Ac Power 6.1 Fuse Size Power Fuse 100-240V 10A 5*20 main fuse 6.2 Power Connection If the external flexible cable or cord of this light is damaged, the line is up to the manufacturer or its service agent or a similar qualified person to replace, in order to avoid danger. Connect the power supply personnel must have the appropriate qualifications before proceeding, you must make sure you are using the power supply voltage matches the voltage identified and have overload or leakage protection. - Page 16 Note: 1. Please do not install other similar light bulbs, otherwise it will cause safety hazards or damage the equipment. 2. To reduce the risk of damage to luminaire, replace the lamp before it exceeds the life of the lamp. 3.
- Page 17 NOTE: Avoiding oil stained hands. To prevent damage, make sure you handle the lamp with care when installing and dismantelling. Do not let the bulb hit hard objects around it as it will cause damage. 7.3 Correction Lamp has been corrected before selling. In the rare case the lamp may need correction, follow these steps: The light is reseted by turning on the power, using the menu or console light bulb to play the sharp beam.
-
Page 18: Function
Using cross screwdriver to open the light body one bonnet side which is printed “this cover to replace the lamp” Using a flat head screwdriver to adjust the lamp bracket adjustment screw, turn the screw clockwise or counter clockwise, and the lamp can be right or left to adjust. 8. - Page 19 8.2 Color Wheel The color wheel is composed of 14 high-standard fixed colors. Users can easily choose the color they like and create a perfect lighting effect. At the same time, it can be used with the gobo wheel. The effect is better, and the colorful pattern can be changed at will effect.
- Page 20 8.4 Prism Wheel The prism wheel is equipped with a 8-facet prism and a 16-facet prism. It can be rotated clockwise and counterclockwise. The speed is adjustable. With the color and gobo, various brilliant lighting effects can be created. The prism wheel passes two high precision and ultra fast. The eight-head screw motor adjusts the size of the prism spot to create a dynamic effect of the amazing prism.
- Page 21 9. Display Setup 9.1 LCD Display Introduction 9.2 Menu Operation: Press: ENTER/UP/DOWN/ESC Main Menu 1.DMX Address:01-512 2.Channel Mode:24 3.Reset Operation 1.Motor off Yes/No 2.Pan/Tilt 3.Strobe...
- Page 24 202-227 Gobos clockwise switching,from fast to slow 228-229 Stop 230-255 Gobos anti-clockwise switching,from slow to fast Gobo Rotation No action 1-127 Gobo indexing 128-191 Gobo clockwise rotation:from fast to slow 192-255 Gobo anti-clockwise rotation:from slow to fast Prism 1-63 No effect 64-255 Prism insertion Prism Rotation...
- Page 25 Zoom 0-255 Zoom from small to large 0-255 Zoom fine, from small to large Focus 0-255 Focus,from far to near Focus Fine 0-255 focus fine, from far to near Reset 0-209 Empty 210-229 All reset 230-255 Empty...
-
Page 26: Failure Analysis And Resolution
11.Fault Analysis And Resolution Listed below are a few common problems that you may encounter, with solutions. Equipment does not work, no light output and the fan does not work; 1.Check the power connection and main fuse. 2.Be sure the voltage of the connector. Not responding to DMX Console;... -
Page 27: Cleaning
12. FIXTURE CLEANING The cleaning of internal and external optical lenses or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
