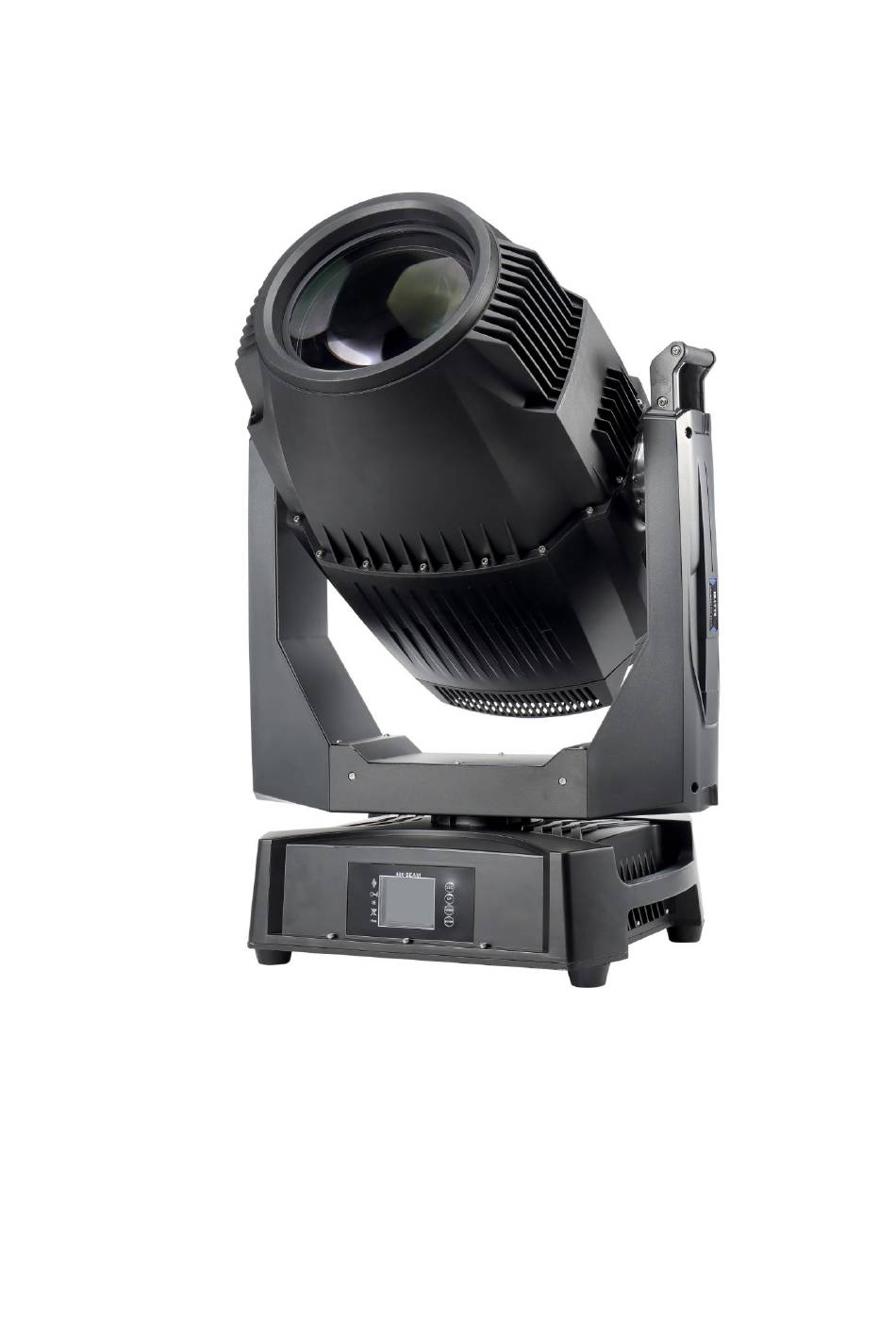

480 Super Waterproof Beam Spot Wash 3 IN 1 IP65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-480BSW and is the answer not in the manual?

Questions and answers

Related Manuals for Hi-ltte HT-480BSW

Summary of Contents for Hi-ltte HT-480BSW

  • Page 1 USER MANUAL 480 Super Waterproof Beam Spot Wash 3 IN 1 IP65...
  • Page 2 FOREWORD Thanks for choosing product of 480 IP65 Super Waterproof BSW Moving Head Light,it is our newest the latest independent research and development of a high-grade quality. Compared with other same power lights, it's more lightweight and convenient, and with perfect combination of international advanced electronic control technology and excellent human chemical.

  • Page 3: Table Of Contents

    PRODUCT CATALOG 1:SAFETY TIPS------------------------------------------------------------------------------4 2: TECHNICAL PARAMETERS-------------------------------------------------------------5-6 3:SCHEMATIC LIGHTING COMPONENTS---------------------------------------------6 4:PACKING AND SHIPPING--------------------------------------------------------------6-7 5:SAFETY STANDARDS-------------------------------------------------------------------7-11 6:AC POWER-------------------------------------------------------------------------------11 7:LAMP------------------------------------------------------------------------------------11-14 8:FUNCTIONS----------------------------------------------------------------------------14-17 9:DISPLAY SETUP------------------------------------------------------------------------17-25 10:CHANNEL-----------------------------------------------------------------------------25-29 11:FAILURE ANALYSIS AND RESOLUTION-----------------------------------------29-30 12:CLEAN LAMP-------------------------------------------------------------------------30 13:PHOTOMETRICS DIAGRAM -------------------------------------------------------31...

  • Page 4: 1:Safety Tips

    1. SAFETY TIPS Please read the guide book that contains the installation, use and maintenance of important information ◇Before using this product, please observe carefully the product is not unwrap or damage during transportation. As a result of damage during transporting, please do not use the lights, and contact with the dealer or manufacturer.

  • Page 5: 2: Technical Parameters

    2. TECHNICAL PARAMETERS ◇DMX Channel: 25/30CHs ◇Control model:DMX512,RDM ◇LED LCD Display+Press button,English/Chinese ◇Light Source:USHIO NSL450 lamp+ lighter ◇XY axis super fast and ultra silence 3-phase step motors ◇Color temperature is 7500K,life span is 2000Hs ◇12 Color with white, semi color effect ◇11 fixed gobo with 8 open circle ◇7 glass rotating gobo, could be rotated in both direction ◇Prism: 8+16 prism can reverse rotation, stack with linear prism can have...

  • Page 6: 3:Schematic Lighting Components

    ◇Size:326* 473* 752.5mm Extended functions：support RDM， wireless signals is available. 3. SCHEMATIC LIGHTING COMPONENTS 4. PACKING AND SHIPPING 4.1 Packing 480 Beam Spot Wash Moving Head is packaged by carton or standard 2in1 flight case(selectable 1IN1 or 2IN1), accessories items are as below Name Quantity unit...

  • Page 7: 5:Safety Standards

    Power line piece 4.2 Packing 1. Disconnect the power supply so that the lamp to cool completely before packaging, at least 15 minutes or more. 2. Close the light protect lock after cleaning the surface of the light dust 3. Cover the light, seize the equipment both sides aluminum handles on to make it upside down and gently placed in the box.
  • Page 8 Users should ensure that light and installation materials are checked for regular safety check. Please do not install it yourself if you do not have the professional professionals to operate it. work condition and similar experience. Please ask the Incorrect installation will cause danger. The working temperature for the equipment is available between 0 degree and 40 degrees Celsius.
  • Page 9 Note: Lights be placed vertically upward, the shortest distance between working lights must be more than or equal 900mm, lighting installation layout as following. 5.3 Data cable Data cable is DMX512 signal Caution: Signal line connections is X-type connector X-typeconnector-----If the external flexible cable or cord of this light is damaged, please replace the professional cable or cord from the manufacture or its agent.
  • Page 10 The controller connects to the nearest input XLR 3-pin, then from the output of the device connects to the input of the next device, continuous connection one by one, the final output data cable terminal equipment plug one end into the terminal.

  • Page 11: 6:Ac Power

    Note: 1. Do not use two separate output connections. To connect the branch, a separating consecutive DMX512 signal amplifier must be used. 2. Please use the specialized DMX512 shielded twisted-pair cable. Standard microphone cables can not be reliably controlled long-distance data. 6.
  • Page 12 Note: 1. Please do not install other similar light bulbs, otherwise it will cause safety hazards or damage the equipment. 2. To reduce the risk of damage to luminaire, replace the lamp before it exceeds the life of the lamp. 3.
  • Page 13 NOTE: Avoiding oil stained hands. To prevent damage, make sure you handle the lamp with care when installing and dismantelling. Do not let the bulb hit hard objects around it as it will cause damage. 7.3 Correction Bulbs Lamp has been corrected before selling. In the rare case the lamp may need correction, follow these steps: The light is reseted by turning on the power, using the menu or console light bulb to play the sharp beam.

  • Page 14: 8:Functions

    the screw clockwise or counter clockwise, and the lamp can be right or left to adjust. 8. FUNCTIONS 8.1 Fixed Gobo Wheel A metal Gobo Wheel consisting of 11 fixed Gobo + 8 white, customers can change their own custom simple pattern pieces as needed. 8.2 Rotating Gobo Wheel A dynamic gobo wheel with seven glass gobos + white, customers can replace high temperature resistant glass gobo pieces as needed.
  • Page 15 8.3 Color Wheel (12 Colors+ White & CMY) The color wheel is composed of 12 high-standard fixed colors. Users can easily choose the color they like and create a perfect lighting effect. At the same time, it can be used with the gobo wheel. The effect is better, and the colorful pattern can be changed at will effect.
  • Page 16 8.4 ANIMATION Wheel The effect wheel can achieve the infinite rotation and form the curtain effect, which can have special gobo flow effect on the stage. 8.5 Optical lens focusing Synchronous work with two high-precision screw motors is used to adjust the optical lens to complete the pattern definition.

  • Page 17: 9:Display Setup

    The frost consists of an frost piece, which is done according to the actual control to achieve the soft light effect you want. 8.9 Pan & Tilt Pan scanning 540°, Tilt scanning 270°, with 16BIT precise positioning function. Pan & Tilt speed can be adjusted. 9.
  • Page 18 1. Goal: 1)Any model 1. Goal: 2)Converse model Auto addressing 2. Address by serial number 3. Unified address 1、DMX 2、Auto1 5、Run 3、Auto2 （DMX） 4、Auto3 5、User program Current open 6、Lamp Current off 0-255 1、pan 0-255 2、Tilt 0-255 3、Color 4、Fixed Gobo 0-255 5、Rotating Gobo Wheel 0-255 6、Rotating Gobo Auto Rotating...
  • Page 19 3、End 255-0 Speed/Time 1、Speed channel control mode 3、Pan/Tilt 2、Application scenario Standard/ Entertainment General Yes/No 3、Speed channel real-time action settings 4、 Manual scanning Yes/No 4、 Slave Master-slave Master mode： 1、Play scene 1-12 2、First round 3、Second round 4、Third round 5、Fourth round 5、 Mixed scene 6、Fifth round 7、Sixth round 8、Seventh round...
  • Page 20 4、CMY1 0…500…-500 5、CMY2 0…500…-500 6、CMY3 0…500…-500 7、CMY4 0…500…-500 0…500…-500 8、Fixed Gobo 9、Focus 0…500…-500 0…500…-500 10、Dimmer 11、Dimming mirror 0…500…-500 12、Prism arm 1 0…500…-500 0…500…-500 13、Prism arm 2 14、Prism rotating 0-500-500 15、Rotating gobo 0-500-500 0-500-500 16、Gobo rotating 17、Zoom 0-500-500 18、Effect Wheel Arm 0…500…-500 Lock the menu Yes/No...
  • Page 21 10、When No action turning off the Sleep light 11、Always show Logo Yes/No 12、Turn off the battery 13、P/T Correction Yes/No Cancel 14、Lamp time clear Sure Cancel 15、Reset Sure Pan reset Yes/No Tilt reset Yes/No 16、Ignore errors Lighting board communication Yes/No Code wheel waveform Yes/No Yes/No 17、Lightning failure retry...
  • Page 22 ACCY:-13702 ACCZ:553 Calibration value temperature °C Temperature HR Air pressure (HPA): 948 Fan Angle ACCX：0 5、Local 3 axis Sensor ACCY:0 ACCZ:0 Calibration value 6、Lamp This time（Minute）：0 Total（Hour）：0 usage time Storage Normal/Fault Motor sensor Normal/Fault Bulb communication Normal Cpu2-0 communication Normal/Fault Cpu1-1 communication Normal/Fault Cpu2-2 communication...
  • Page 23 1、ID 2. Set the number 3、Set the time（Hour）240 9、Security Settings 3.0 4、Expiration Yes/No/After renewal （Code prompt 86226239） 5、Total time of use（hour） 6、Limit boot time limit 7、Synchronize Fan angle：0 ACCX：0 Local ACCY:0 10、3 Axis ACCZ：0 sensor Lamp angle：112 Angle X：-68 Angle Y：-21 Accessory board ACCX：-15285 Angle：0...
  • Page 24 Recalibration screen (requires restart) Fan 1 （999） Fan 2（999） Multi-channel Fan 3 （999） fan test Fan 4 （999） Stop error big count：60 Two-way fan Fan 1（%）：101 test Fan 2（%）：101 Disable fan speed Yes/No measurement （4-way board） Start Yes/No SN Motor Set sequence Yes/No Waveform diagram...

  • Page 25: 10:Channel

    Reading 11705/000/ 000/000 value 2. Set power（%）：101 3. Virtual console Channel: 1-512 4. Color Mark:000 10. CHANNEL Channel Description Mode Value 0-255 Pan Rotating Pan Fine 0-255 Pan Fine Tilt 0-255 Tilt Rotating Tilt Fine 0-255 Tilt Fine Pan/Tilt Speed Maximum speed mode speed mode 1-255...
  • Page 26 No Function 1-255 CTO from deep to shallow CMY Macro No Function 4-255 CMY macro from slow to fast Color Wheel White White+ Dark Red 8-12 Dark Red 13-17 Dark Red+ Dark Blue 18-22 Dark Blue 23-27 Dark Blue + Yellow 28-32 Yellow 33-37...
  • Page 27 39-41 Gobo14 42-47 Gobo15 48-50 Gobo16 51-53 Gobo17 54-56 Gobo18 57-65 Gobo shake 1 66-74 Gobo shake 2 75-83 Gobo shake 3 84-92 Gobo shake 4 93-101 Gobo shake 5 102-110 Gobo shake 6 111-119 Gobo shake 7 120-128 Gobo shake 8 129-137 Gobo shake 9 138-146...
  • Page 28 128-190 Forward Gobo rotation: from fast to slow 191-192 No Action 193-255 Reverse gobo rotation: from slow to fast Effect Wheel When the Effect Wheel is activated, if the fixed gobo is in the white hole position, it will automatically switch to the large hole.

  • Page 29: 11:Failure Analysis And Resolution

    0-255 Zoom: beam angle from small to large Zoom Fine 0-255 Zoom Fine：beam angle from small to large Focus 0-255 Continuous adjustment from far and near Focus Fine 0-255 Focus Fine: From Far to Near Strobe Close 4-103 Strobe from Slow To Fast 104-107 Open 108-157...

  • Page 30: 12:Clean Lamp

    Solve 5: Check whether the signal cable near high voltage power lines caused DMX display board inside the wire damage. ◇Fault C: One of the channels is not working Solving 1: Stepper motor may be damaged, or the line connecting the motherboard burned out.

  • Page 31: 13:Photometrics Diagram

    13. PHOTOMETRICS DIAGRAM...
