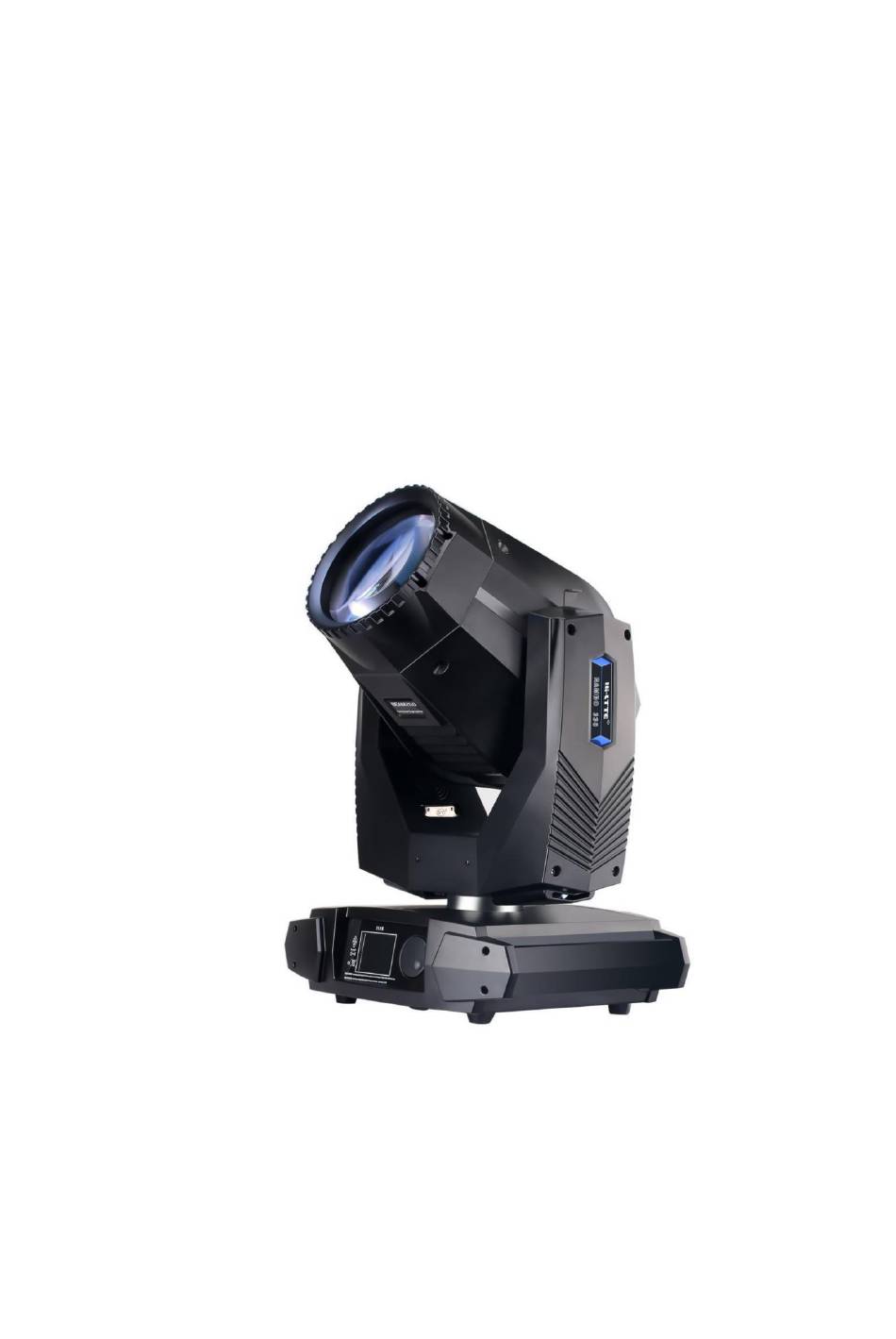

- Page 1 Rambo Phantom 330W Philips Lamp Super Sharpy Beam User Manual...
-
Page 2: Table Of Contents
1. Safety Instructions -------------------------------------------------- 2 2. Technical Parameters ---------------------------------------------- 2 3. Schematic Lighting Components ------------------------------ 4 4. Packing And Shipping --------------------------------------------- 4 5. Safety Standard Installation ------------------------------------- 6 6. AC Power -------------------------------------------------------------- 9 7. Function ---------------------------------------------------------------- 9 8. Dynamic Effects ----------------------------------------------------- 11 9. -
Page 3: Safety Instructions
1. Safety Instructions • Before using this product, please check carefully the product is not unwrap or damage during transportation. As a result of damage during transporting, please do not use the lights, and contact with the dealer or manufacturer. •... - Page 4 • Display: LCD Display+rotating Button. • Light Source: 330w Philips 16R Lamp. • Motor: Total 11pcs supper quiet motors, 16 bit, including 2 3-phase step motors (X-axis and Y-axis ), super silence and super speed. • Color Temperature: 8000K. • Life Span: 2000 Hours. •...
-
Page 5: Schematic Lighting Components
3. Schematic Lighting Components 4. Packing And Shipping 4.1 Packing Material And Accessories RAMBO330 Super Beam is packaged by carton or standard 2in1flightcase(Other options are the 1in1 flight case and 4in1 flight case). Random accessories items as shown below. Item Quantity Unit User Manual... - Page 6 4.3 Packing 1. Power off to let the lamp cool completely before packaging equipment at least 15 minutes or more. 2. Lock the light protection locks when cleaning the surface of the light. 3. Use the packing bag to cover the light, seize the aluminum handle on both sides of the equipment and put it upside down and put it into the box gently.
-
Page 7: Safety Standard Installation
5. Safety Standard Installation Users should ensure that light and installation materials are checked for regular safety checks. Unprofessional incorrect installation can lead to dangerous, if the lack of working conditions and professional standards, please operate the light by professionals. Do not use the light if the working temperature isn’t -15-40 degrees Celsius. - Page 8 5.3 Data cable Data cable is DMX512 signal. Caution: Signal line connections is X-type connector. X-type connector-----If the external flexible cable or cord of this light is damaged, please replace professional cable or cord from the manufacture or its agent. Lights’ DMX input and output connects to a 3-pin XLR, first pin is grounded, then negative signal is second pin, third pin connects to the positive polarity signal.
-
Page 9: Ac Power
The controller connects to the nearest input XLR 3-pin, then from the output of the device connects to the input of the next device, continuous connection one by one, the final output data cable terminal equipment plug one end into the terminal. If the signal transmission is long-distance , 512 signal amplifier must be added. -
Page 10: Function
6.2 Power Connection If the external flexible cable or cord of this light is damaged, the line is up to the manufacturer or its agent or a similar qualified person to replace, in order to avoid danger. Connect the power supply personnel must have the appropriate qualifications before proceeding, you must make sure you are using the power supply voltage matches the voltage identified and have overload or leakage protection. - Page 11 Attention! 1. Avoiding oil stained hands. 2. To prevent damage, make sure you handle the lamp with care when installing and dismantelling. Do not let the bulb hit hard objects around it as it will cause damage. 7.3 Correction Bulbs Lamp has been corrected before selling.
-
Page 12: Dynamic Effects
8. Dynamic Effects 8.1 Gobo wheel A 11 fixed gobo + 4 open composed of fixed gobo wheel, customers could change them according to the needs of their own custom a variety of simple gobos. - Page 13 8.2 Color Wheel One color wheel is with 8 colors. The color can be customized. Color wheel is made by14 high standard fixed color, the user can easily select their own favorite color, to create a perfect lighting effect. Use the gobo wheel at same time is better. It can be easily transformed a colorful gobo effect.
-
Page 14: Lcd Control
8.6 Dimming And Strobe 0-100% mechanical dimmer, you can instantly switch freely adjustable strobe speed up to 12 times / sec, along with random strobe special features. 8.7 Frost Frost is a piece of atomizing lens, according to the actual control to complete the frost effect as you want. - Page 15 9.2 Main Menu Setting Set up 1. DMX Address: 001 2. Channel Mode 3. Standard(16ch) 4. Vector(20ch) Option Invert Invert Pan Off Invert Tilt Off Display Reversal Off Back Light Open Auto Close(15s) Information System Version XY: V3.10 MCU1: V1.01 MCU2: V1.01 MCU3: V1.00 Fixture Hours...
- Page 16 4.Gobo (000) 5.MUL Color(000) 6.Prism1/2.(000) 7.PrismEFF.(000) 8.Prota(000) 9.Frost (000) 10.Focus (000) 11.Pan (000) 12.PanFine(000) 13.Tilt (000) 14.TiltFine(000) 15.Function(000) 16.Lamp (000) 17.P/T Time(000) 18.Col.Time(000) 19.BeamTime(000) 20.GoboTime(000) Manual Control Lamp Reset System Reset Pan/Tilt Reset Effect Reset Factory default Input:1212 Parameter Color Adjust Value: 000 Gobo Adjust Value: 000...
-
Page 17: Dmx Control
10. DMX Control Channel Value Description White White/Color1 8-11 Color1 12-16 Color1/ Color2 17-20 Color2 21-24 Color2/ Color3 25-28 Color3 29-33 Color3/ Color4 34-37 Color4 38-41 Color4/ Color5 42-45 Color5 46-50 Color5/ Color6 51-54 Color6 55-58 Color6/ Color7 59-63 Color7 1. - Page 18 127-151 Strobe from fast to slow pulse close 152-155 open Random open the pulse strobe from fast 156-180 to slow Random close the pulse strobe from fast 181-205 to slow 206-209 Open 210-249 Random strobe from fast to slow 250-255 Open Dimmer 0-255...
-
Page 19: Failure Scoreboard And Solutions
244-249 Gobo15 Swing 250-255 Gobo15 Swing 5. Eight Colors 0-255 Eight colors 64-127 Prism1 6. Prism(Prism1/Prism2) 128-191 Prism2 192-255 Prism1+Prism2 16-55 Prism 2 dynamic effect 56-95 Prism 1 dynamic effect 96-135 Prism 1 & Prism 2 dynamic effect 7. Prism Effect 136-175 Prism 2 &... -
Page 20: Cleaning
• Problem B: connect control units, lighting does not respond Solution 1: After connecting control units, lighting should be working. If it is not working properly, check the signal cable plugs and wires are connected correctly. Solution 2: If the lamp is lit display, but the channel does not respond, check the address code is set correctly and DMX output voltage polarity.
