Summary of Contents for Bang & Olufsen Beoconnect Core

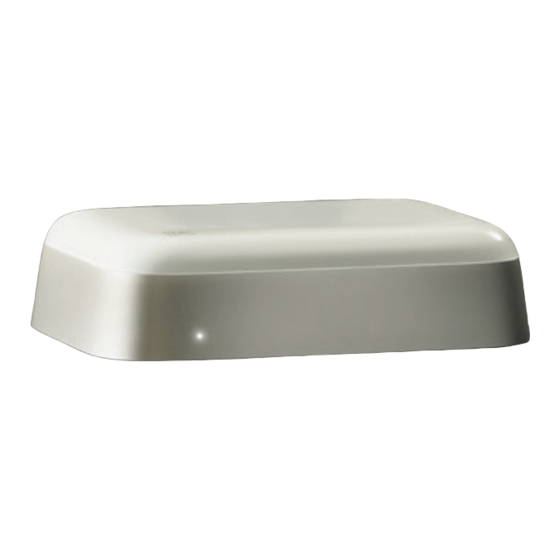

- Page 1 Beoconnect Core User Guide...
- Page 2 Beoconnect Core English, 3 C O N T E N T S...
-
Page 3: Get Started
D O W N L O A D T H E B A N G & O L U F S E N A P P To set up your Beoconnect Core, download the Bang & Olufsen App from your designated App store. - Page 4 Before connecting any cables or devices to Beoconnect Core, make sure that everything is switched off and disconnected from the mains. Use the Bang & Olufsen App to connect your Beoconnect Core to the internet. Once Beoconnect Core is connected, it will search for available software updates.
- Page 5 C U S T O M I S E Y O U R S O U N D I N T H E B A N G & O L U F S E N A P P Adjust the sound and get the most of your speakers and Beoconnect Core by using the Bang &...
- Page 6 Radio or access playlists through Spotify Connect, Deezer Connect, or Tidal Connect. To save a favourite, begin playing either radio or a playlist on your Beoconnect Core. Then press and hold the Favorite button that you wish to assign the favourite to on the remote control for two seconds.
- Page 7 - Daisy-chain: If your speakers have two Power Link sockets, you can connect from Beoconnect Core to the first speaker and then from the first speaker to second speaker. - Splitter: Connect a Power Link splitter cable to Beoconnect Core, and then connect both speakers to the splitter.
- Page 8 The above illustration shows how you can add Beolab speakers to a music source. The 3.5 mm jack on Beoconnect Core can be used to connect any line-level analogue or digital (Optical) audio source so that it will play through the connected speakers. Contact your Bang &...
- Page 9 Beoconnect Core can connect to most non-Bang & Olufsen TVs, allowing sound from your preferred shows to play through connected speakers. Simply link Beoconnect Core to your TV using an HDMI cable, plugging one end into the HDMI eARC port on Beoconnect Core and the other into the HDMI eARC/ARC port on your TV.
- Page 10 DPL (RJ45) sockets. After connecting the speakers via USB, connect all devices to the mains and continue setup in the Bang & Olufsen App. After connecting Beoconnect Core to your network, you will see an option to enable Beolab 50 or 90 in the control screen.
- Page 11 Beoconnect Core, make sure to disconnect Beosound Shape from the mains. Then connect all the cables between the Beoconnect Core and the primary amplifier. Afterwards connect both the amplifier and the Beoconnect Core to the mains. Make sure to switch on the amplifier first and then the Beoconnect Core.
- Page 12 W A L L A N D B E O S O U N D S H A P E B R A C K E T S O L U T I O N S For mounting Beoconnect Core inside a Beosound Shape tile, the Beoconnect Core Bracket is required. The same bracket can be used for wall mounting your Beoconnect Core. For further instructions see the guide included with the Beoconnect Core Bracket.
- Page 13 Beoconnect Core M U L T I R O O M Make the whole house come together. Beoconnect Core can link to other speakers in a multiroom system and let multiple speakers across your home play the same content at the same time.
-
Page 14: Nice To Know
W I - F I S E T U P M O D E You can connect your Beoconnect Core to a new wireless network or reset the connection by pressing and holding the Setup button on the back of Beoconnect Core for 2 seconds. You will hear a sound prompt, and the status indicator will start flashing amber. - Page 15 Beoconnect Core L I G H T I N D I C A T O R The light indicator is located in the front of Beoconnect Core, and shows the status of the product: I N D I C A T I O N...
