Summary of Contents for ADT XPP01

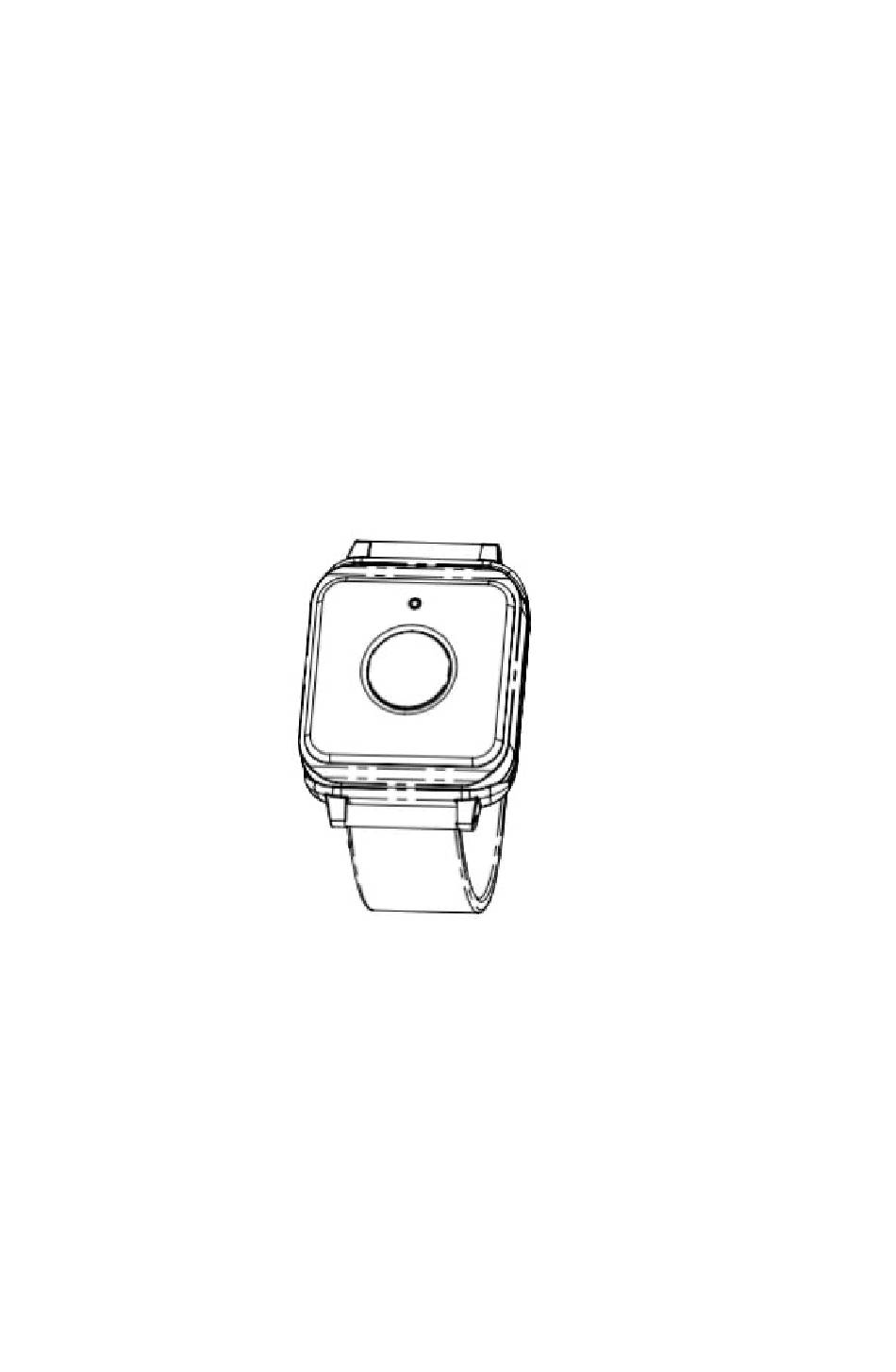

  • Page 1 Panic Button Sensor User Guide (XPP01)
  • Page 2 Mount Guide of Panic button sensor–01-SS-2022...
  • Page 3 Mount Guide of Panic button Sensor Panic Button Sensor Panic Button Sensor (XPP01) is designed for emergency call to monitoring center. It communicates with XP02 Control Panel via 433 MHz frequency. • The Panic button Sensor Panic button Sensor Mount Guide of Panic button sensor–01-SS-2022...
  • Page 4 Mount Guide of Panic button Sensor Your Panic button Sensor has two key steps: 1. Take the Panic button sensor on hand wrist or belt clip. 2. Connect Panic button sensor to the panel. Prepare Panic button Sensor Belt Clip Band bracket Add Panic Button Sensor to your panel.
  • Page 5 Mount Guide of Panic button sensor–01-SS-2022...
  • Page 6 Mount Guide of Panic button Sensor Change battery Please follow the below process. 1. Take the device out from the wrist band as below picture. Pulling out 2. Unscrew the bracket as below picture. Unscrew Mount Guide of Panic button sensor–01-SS-2022 44 2...
  • Page 7 Mount Guide of Panic button Sensor 3. Take the device out from the belt clip as below picture. Pulling out 4. Unscrew the bracket as below picture. Unscrew Mount Guide of Panic button sensor–01-SS-2022 45 2...
  • Page 8 Mount Guide of Panic button Sensor 5. Take away the rear cover. Pull out the cell battery as below pictures. Pulling out 6. Take out the old cell battery and insert a new one as below picture. Mount Guide of Panic button sensor–01-SS-2022 56 2...
  • Page 9 Mount Guide of Panic button Sensor Use your Panic Button Sensor Add your Panic Button Sensor to the Security Panel. You can wear the Panic Button on your hand wrist or clip it on your belt. Please refer to below picture. On hand wrist On belt Mount Guide of Panic button sensor–01-SS-2022...
