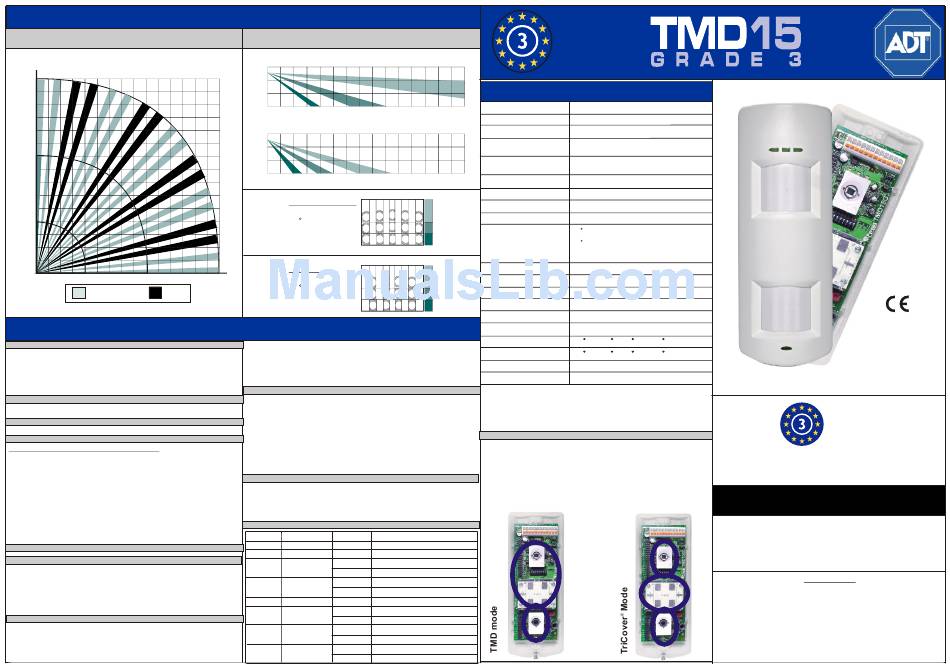

ADT TMD15 User Manual

Coverage Pattern And Plan View
HORIZONTAL COVERAGE
15m
12m
10m
8m
6m
4m
2m
Dual Tech PIR
Operation of Features
Initial Power Up
®
On first power up of the TMD15G3, the detector will go into a self test, this will
involve the GREEN and ORANGE LEDs flashing on the dual tech, and the RED
LED flashing on the PIR. After a minute the detector will be ready.
If the ORANGE LED is still flashing then the detector has failed a Microwave test,
or if the GREEN LED or RED LED is still flashing then the detector has failed a PIR
test, if this occurs try restarting the detector (powering down and back up).
Self Test
Every 5 hours of detector none activity the detector will do an active diagnostic self
test. If in the unlikely event of a failed self test the detector mask/fault relay will open.
Low Voltage Detect
If the detector detects a low voltage fault, then the mask/fault relay will open
The EN Mask Operation
FOR EN OPERATIONS DIP SWITCH 6 MUST BE ON
®
If an attempt is made to mask the TMD15G3 the BLUE LED will start flashing at
half a second intervals, signaling that the detector is going into 'mask processing'.
Mask processing will take 60 seconds to complete.
If the detector still sees a mask after 60 seconds then the Mask/fault and
Alarm relays open, and the GREEN and ORANGE LEDs will be illuminated.
For None EN operation just the mask/fault relay goes open.To select which relays to
open on a mask activation see dip switch 6.To reset the detector to normal operating
mode, remove the blocking material, the BLUE LED will then flash again and during
this time the detector should be walk tested to activate both Microwave and PIR, the
GREEN and ORANGE LED will distinguish after 60 seconds and the relays will be
closed again.If the detector has been put into mask processing by accident, you will
need to walk test the detector so both the Microwave and PIR trigger, after 60
seconds the BLUE LED will stop flashing and normal operation is resumed.
Switch 1,Switch 2,Switch 5: DO NOT USE. Switch 6: use for Grade 2 panels.
Switch 3. Blocking
ON = Blocking Disabled / OFF = Blocking Enabled
'Blocking' works as follows: If an attempt to mask the detector is made when the
control panel is disarmed, the alarm relay will be held open until the masking is
removed (thus not allowing the control panel to arm). You must also connect the
®
"RI 1" input on the TMD15G3 to a programmable output. When the control panel
is disarmed, this input must be at 0V. When the panel is armed it must be at 12V.
To enable this feature dip switch 3 must be OFF.
Switch 4. RI 1 Mode
A link on board marked "RI1/Spare" determines if the RI1 terminal is used for the
set/unset signalling or simply as a spare terminal to aid EOL wiring.
If the RI1/Spare link is fitted, the state of RI1 determines if the panel is set or unset.
The actions that can be performed in set and unset mode are also determined by
DIP switch 4 and 2. DIP switch 4 controls the action of RI1. If the switch is ON the
VERTICAL COVERAGE
Maximum Range Setting
2.4m
6ft 6"
2m 4m 6m 8m 10m
Minimum Range Setting
2.4m
6ft 6"
2m 4m 6m 8m 10m
Dual Tech Lens
Volumetric
90
30 Zones
3 Planes
PIR Lens
15m Volumetric 3mm
50ft
(0.12")
69
24 Zones
3 Planes
detector will operate permanently in Set Mode. When DIP switch 4 is OFF, the
detector will use the state of RI1 to determine the set or unset state.
A 0V applied to input RI1 is interpreted as being unset.
A +12V applied to input RI1 is interpreted as being set.
DIP switch 2 determines if masking is enabled all of the time or only when the panel
is unset. When nothing is connected to RI1, the input state is in the set state.
Switch 7. Operational mode
ON = TMD Mode.
DIP Switch 7 determines the operational mode of the detector. When the switch is
ON (default) will operate as a TMD15G3, where the Dual Tech and the Single PIR
operate independently. To open alarm contact 1, the Dual Tech's PIR must trigger
within a given time period of the microwave sensor. Alarm contact 2 is based on the
operation of the Single PIR only.
®
OFF = TriCover Detector Mode.
When switch 7 is OFF, the detector will operate as a TriCover detector, with
all technologies needing to trigger within a given time period of each other to open
alarm contact 1. Alarm contact 2 will operate in the inverse of alarm contact 1.
In alarm, the only LED to be illuminated will be the Dual Tech alarm LED.
Switch 8. LED Enable/Disable
ON = LED Enable / OFF = LED Disable
To remotely enable the LEDs 0V must be applied to the "LED" terminal.
If used with Pyronix panels, the LED terminal must be connected to a PGM
output and programmed as "Remote LED Enable".
For Standard G3 operations the DIP switches do not need to be adjusted.
SWITCH OPTIONS
SWITCH FEATURE POSITION MEANING
1 50/60Hz - DO NOT USE
2 Mask Mode - DO NOT USE
3 Blocking ON Blocking processing Off
OFF Blocking processing On
4 RI1 Mode ON Permanent in Set Mode
OFF State of Ri1 = set/unset mode
5 Sensitivity - DO NOT USE
6 Mask ON Open Mask & Alarm Relays
OFF Open Mask Relay Only (Grade 2)
7 Operational ON Two movement detector
Mode OFF TriCover detector
8 LED Enable ON Enable LEDs
OFF Disable LEDS
TS50131-2-4
EN50131-1
PD6662:2004
Security Grade 3
Environmental Class 2
®
TMD15 Specifications

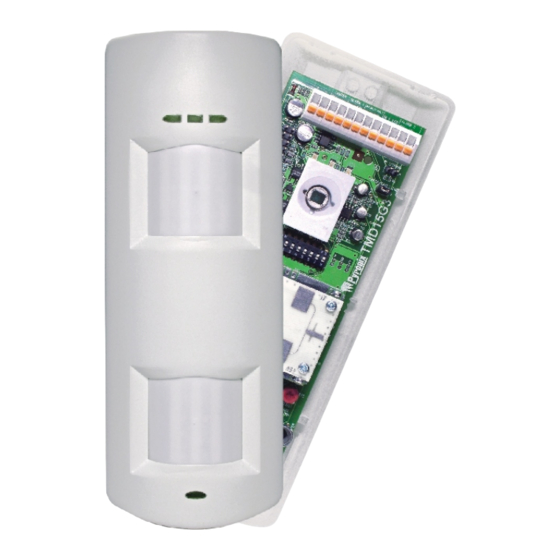

Model: TMD 15 15m Internal detector
12m 15m
Colour: WHITE
Casing: 3mm ABS, 0.4mm HDPE in Lens Area
Lenses: 2 Volumetric Lenses, with NO
overlapping zones
Detection Method: 2 Low noise dual element passive infrared
sensors and a microwave doppler unit
12m 15m
Dual Tech Sensitivity: Selectable AUTO or HIGH
Temperature Compensation: Digital
Microwave Detection Range: 15m PIR and 1-15m microwave
Mask Detection Range: 0m - 1m masking
Detection Zones: 27 facets,54 zones in total.
Top Lens: 5 columns, 15 facets, 30 zones
90 field of view none-overlapping zones
Bottom Lens: 4 columns, 12 facets, 24 zones
69 field of view none-overlapping zones
Detection Speed: 0.25 - 2.5m/s
Operating Voltage: 9-16Vdc, 13.8Vdc typically
Current Consumption: 24mA @ 13.8Vdc Quiescent
Relay Output: 3 x SELV limits; 60Vdc 50mA (42.4Vac peak)
Mounting Height: 1.8 - 2.4m = 15m.
Tamper Switch: 12Vdc 50mA both front and rear
Storage Temperature: -40 C to +80 C (-40 F to +176 F)
Operating Temperature: -30 C to +70 C (-22 F to +158 F)
Emissions: EN55022 Class 2
Immunity: EN50130-4
Suggested Specification Detail:
A dual technology (PIR/Microwave) movement detector having a range capability
of 15 metres and five detection columns within an overall angle of coverage of 90
degrees. This is non-overlapping with a PIR movement detector, which has a
range capability of 15 metres and four detection columns with an overall angle of
coverage of 69 degrees installed in the (location) and at a height of (x) metres.
TMD (Two Movement Detectors) or TriCover
Simply by moving a switch on the pcb, the TMD 15 can be selected to operate
®
as a sequential confirmation or triple coverage detector.
TMD mode: Provides the simple solution to sequential confirmation by operating
as 2 independent detectors in 1 housing with non-overlapping fields of view and
separate relay outputs.
®
TriCover Mode: Triple coverage ensures that an alarm will not occur unless all
3 detector fields are activated in a particular sequence. Offers unparalleled
stability in the elimination of false activations
®
®
3m = 12m
This product is approved for use in the Residential,
Commercial and Light Industrial Environment.
®
This product complies with TS50131-2-4. at security grade 3,
UK = Suitable for use with systems installed to PD6662:2004 (AMD)
EXPORT = Suitable for use with systems installed to EN50131-1
Customer Support Line:
0845 6434 999 (local rate) or 01709 535225
Hours of business: 8.00am - 6.30pm
E-mail: customer.support@pyronix.com
website: www.pyronix.com
Pyronix Limited, Pyronix House, Braithwell Way,
Hellaby, Rotherham, S66 8QY. UK
This product is sold subject to our standard warranty
conditions and is warranted against defects in
workmanship for a period of five years.
In the interest of continuing improvement of quality,
customer care and design, Pyronix Ltd reserves the
right to amend specifications, without giving prior
®
TS50131-2-4
EN50131-1
PD6662:2004
Security Grade 3
Environmental Class 2
environmental class 2.
WARRANTY
notice.
RINS1321-2
