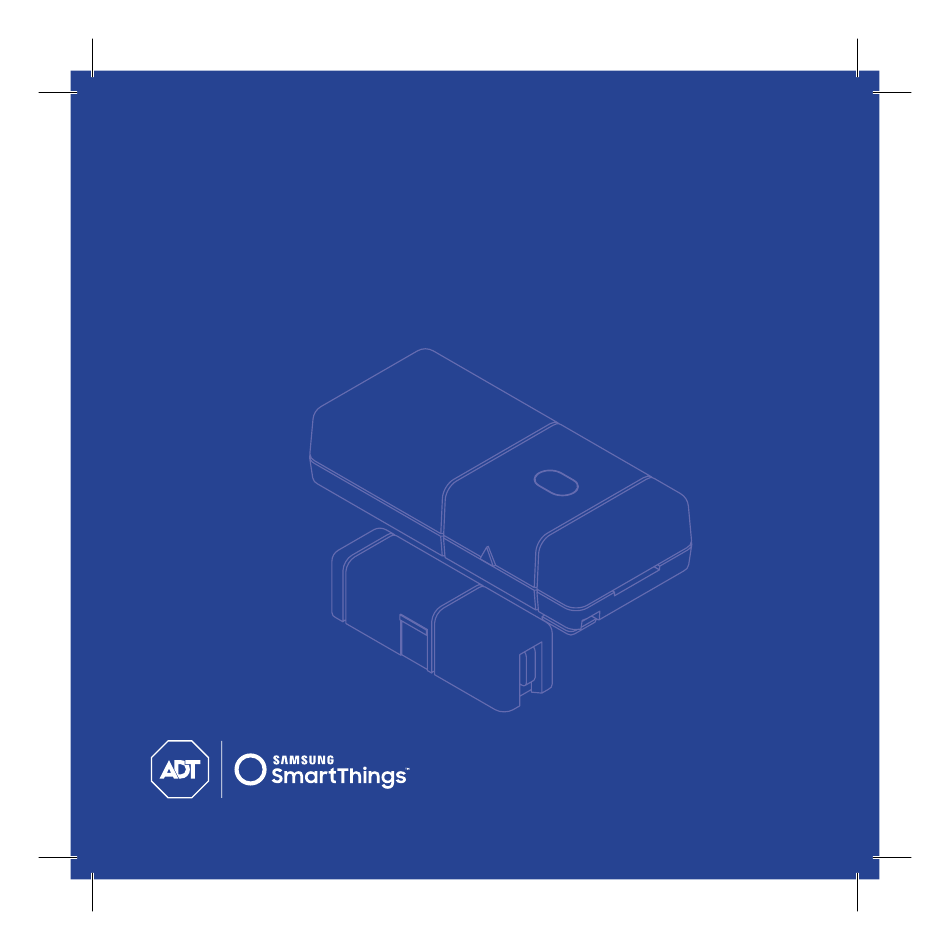

PRINTER'S INSTRUCTIONS:
MANUAL,QUICK START,NOVA,DW - NORTEK P/N: 10015708C - INK: BLACK PLUS PMS 286C - MATERIAL: 105G COATED PAPER - SIZE: 105MM X 105MM -
SCALE: 1-1 - BINDING: TRIM, FOLD AND SADDLE STITCHED - PAGE 1 OF 16
ADT Door and
Window Detector
Setup Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Door and Window Detector and is the answer not in the manual?

Questions and answers

Related Manuals for ADT Door and Window Detector

Summary of Contents for ADT Door and Window Detector

  • Page 1 MANUAL,QUICK START,NOVA,DW - NORTEK P/N: 10015708C - INK: BLACK PLUS PMS 286C - MATERIAL: 105G COATED PAPER - SIZE: 105MM X 105MM - SCALE: 1-1 - BINDING: TRIM, FOLD AND SADDLE STITCHED - PAGE 1 OF 16 ADT Door and Window Detector...
  • Page 2 Setup Take the ADT Door and Window Detector to where you intend to mount it after setup. • Make sure you are within 350 feet from the ADT Security Hub. (Exact range depends on your home’s construction, the environment, the position of the ADT Security Hub, and the position and number of other connected devices.)
  • Page 3 Setup 2. Use the SmartThings app on your smartphone to select the “My Home” tab. Select "Things", and then “Add a Thing". Use the SmartThings app to scan the QR code on the back of the detector and then follow the on-screen instructions to complete setup.
  • Page 4 Setup 4. Remove the tab on the detector marked “Pull This Tab”. Battery Tab Remove the QR code from the back of the detector and attach it inside the ADT Security Hub User Guide for future reference.
  • Page 5 Placement Make sure that the alignment marks on both parts of the detector are aligned and facing each other. Detector Alignment Marks Magnet...
  • Page 6 Placement Placement on doors: Detector On Door Frame Door Frame Magnet Mounted On Door...
  • Page 7 Placement Placement on windows: Single-Hung Windows Double-Hung Windows Detector On Window Sill...
  • Page 8 Mounting 1. Use the pre-applied adhesive tape when attaching both parts of the detector to your door or window. • Make sure that all surfaces are clean and dry. • Make sure to place both parts of the detector correctly as the adhesive tape will be difficult to remove.
  • Page 9 Mounting 2. Place one part of the detector on your door or window, and the other part on the frame of the door or window. • Make sure that both parts of the detector are less than 0.5 inches apart when the door or window is closed.
  • Page 10 Mounting If it's difficult to align both parts of the detector properly, you may want to adjust the height of the magnet by squeezing the tabs on the side or by adding the supplied spacer: 1. Insert spacer pin into magnet base slot. Magnet Spacer in t...
  • Page 11 Testing You can test your ADT Door and Window Detector by performing a Walk Test on the ADT Security Hub, opening and closing the door or window where it's been installed, and then checking its status on the ADT Security Hub touchscreen.

  • Page 12: Troubleshooting

    Troubleshooting If the detector did not pair successfully with the ADT Security Hub, follow these instructions to reset it: Press and release the button on the front of the detector twice. Press and hold the button. The red LED will begin to blink quickly, and after a short period of time will stay on.
  • Page 13 ADT Security Hub. Your ADT Security Hub can then send an alert to your smartphone, automate connected devices, or initiate optional ADT professional monitoring services (additional fees apply).
  • Page 14 Suggestions • Put one on your front door and set it to send you a message if it’s left open for too long. • Put one on your door or window and set it to send you a message if they’re left open at night. •...

  • Page 15: Works With Smartthings

    Works With SmartThings SmartThings works with a wide range of connected devices, including lights, cameras, locks, thermostats, and sensors. It also works with the Google Assistant and Amazon Alexa so you can control your smart home with voice commands. Look for the Works with SmartThings label next time you’re buying a connected device for your home, or visit SmartThings.com to see the full list of compatible devices.
  • Page 16 SmartThings, Inc., 665 Clyde Ave, Mountain View, CA 94043, USA. Information in this document is subject to change without notice. Copyright 2017 SmartThings, Inc. All rights reserved. ADT and the ADT logo are marks and/or registered marks of ADT. Unauthorized use is strictly prohibited. Revised 06/17.
