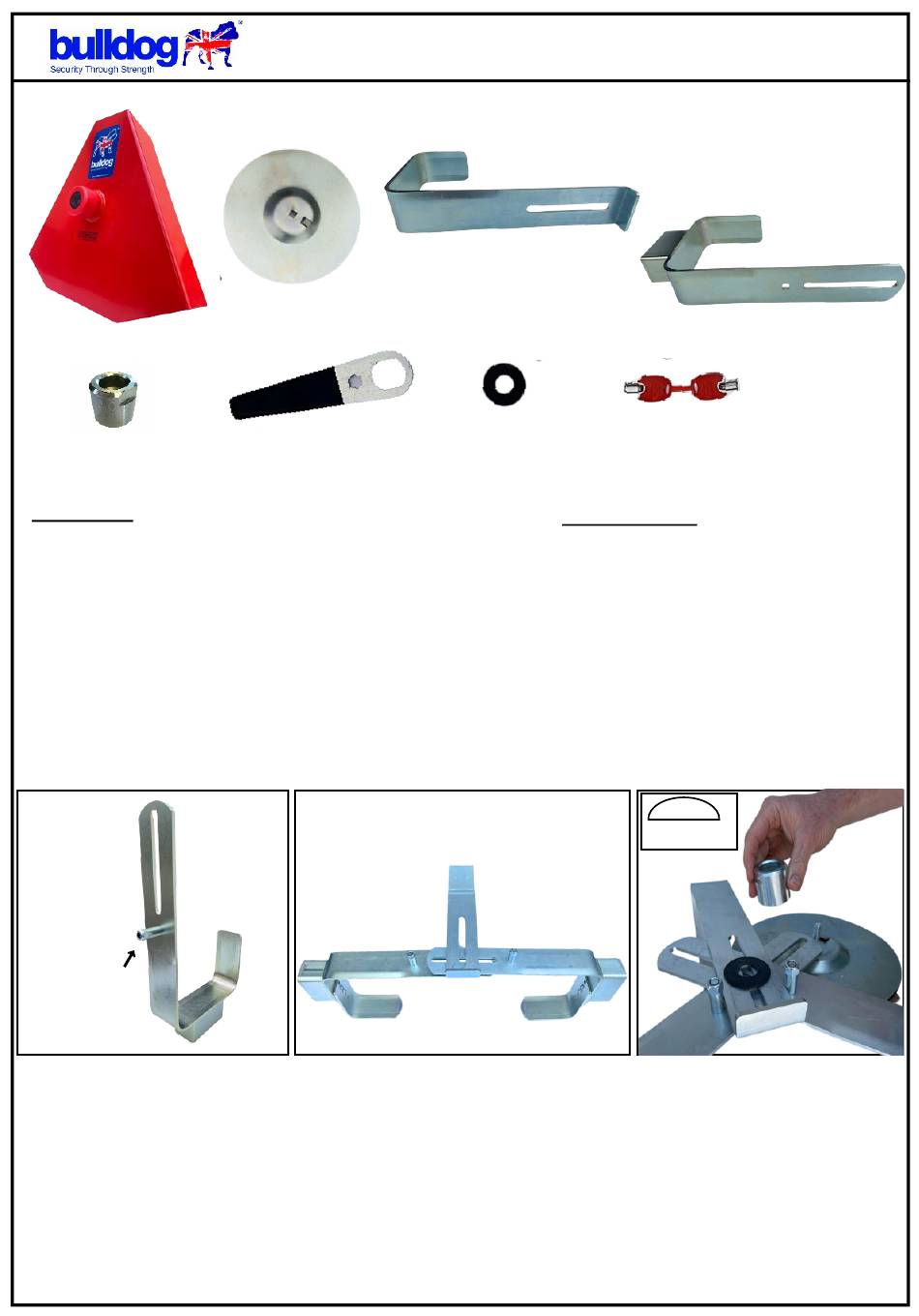

Bulldog Security 230/F Fitting Instructions

1.
3.
10.
9.
5.
4.
8.
6.
11.
5.

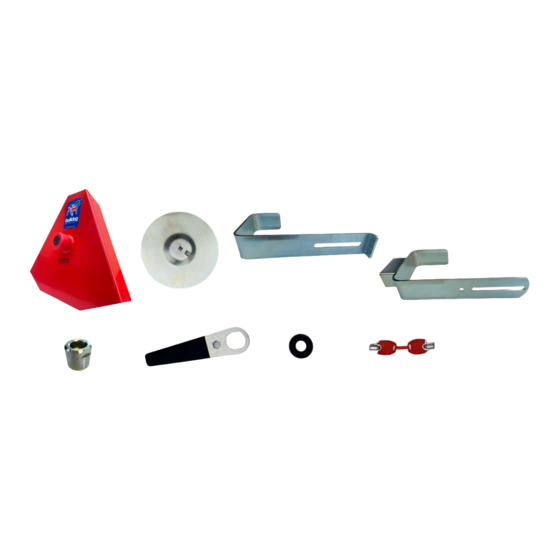

Check List
1. Cover plate incl. Lock x 1
2. Steel Disc x 1
3. Top Arm x 1
4. Bottom Arms x 2
5. Hollow nut (retained in rear of cover plate)
6. Spanner
7. Spring Washer
8. Keys (attached to rear of cover plate)
1
1.
28mm Bush
Attach 1 off 28mm bush to each bottom arm passing the M10 coach bolt through the square hole
in the arm. Fasten in place using the spanner (6) and M10 nut. Remove the hollow nut (5) from
the rear of the red cover (1) by inserting the key into the lock and turning it a quarter turn
anticlockwise. Position the arms in the order as shown and then place the spring washer on top
ensuring it is in the correct orientation (see diagram 3). Push the square head of the M12 x
40mm coach bolt through the steel disc (2) ensuring the lug locates in the slot of the L/H arm.
Attach the hollow nut (5) ensuring the recess on the back of the nut is positioned in the spring
washer. Attach the rubber disc where provided for models SW195F, 210DF and 230F.
Titan Wheel Clamp Fitting Instructions
.
2.
1.
12.
6.
2
1
2.
1st
3.
7.
1 x Fitting Kit
● M12 x 40 coach bolt x 1
● M10 coach bolt x 2
● M10 Nyloc Nuts x 2
● 28mm long bush x 2
3rd
2nd
3rd
4.
1st
8.
3.
Spring washer
fits this way up
2nd
