BD1 & IK1
(Key Switch Start)
User Guide
These instructions are for a NEGATIVE EARTH VEHICLE and covers fitting and operating the
BulldogOne (BD1) with an IMMOBILISER (IK1) using a KEY START and NO siren fitted. The
tracker and immobiliser must be fitted by a competent auto electrician. BEFORE installing,
please register your BulldogOne and ensure correct operation on the smartphone app
Your BulldogOne needs registering before you can enjoy the full tracking experience at:
www.bulldogtracking.co.uk/register
During the registration you will need the serial number printed on the tracker. After successful
registration, you will receive an email giving full details of the tracking service and how to track your
BulldogOne via your smartphone.
In this guide: text in
red
refers to a command / option in our tracking app and in
blue
refers to a
reference image in this guide, Fig 2 and 3.
These installation instructions are for the installation of a BulldogOne (BD1) tracker and Immobiliser Kit
(IK1).

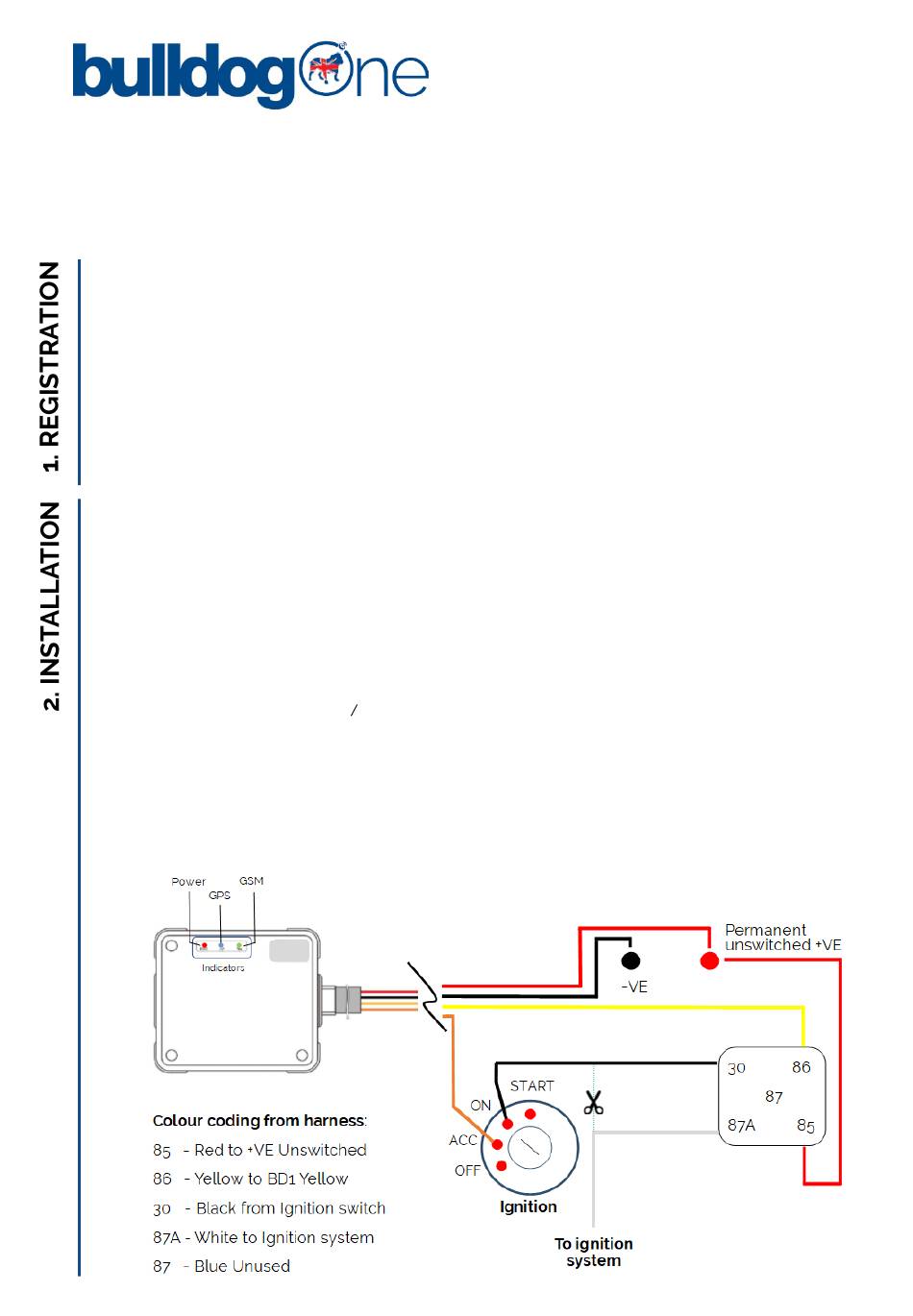

The installation shown in Fig. 1 provides the facility to remotely cut off the engine (via the
smartphone app) and immobilise the key switch of the vehicle and cut off the engine (using an
automatic feature of the BD1 when in armed mode) - see section 11 to 14 for more details
IMPORTANT: The
Orange
wire MUST connect to the ignition ACC output. The wire from the ignition ON
output needs to be cut where shown and wired from the ignition block into port 30 on the harness and
the other end of the cut cable into port 87A.
Once wiring is complete, mount the BulldogOne with the BulldogOne label facing towards the sky and
securely attach the BulldogOne IK1 wiring harness to avoid them becoming dislodged.
Do not mount in the engine bay or other area where it can get wet; next to radio equipment; between
metal cavities in the vehicle or other parts of the vehicle where interference may be caused such as
radio speakers.
Read the BD1 User Guide and test all functionality, in a safe environment to ensure the immobiliser
functions correctly
Fig. 1
BD1/201805-11/GEN-IK1
